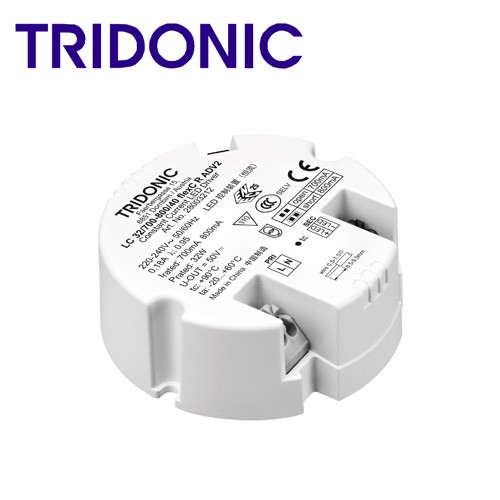

Tridonic LED Driver LC 32W 700-800mA flexC R ADV2 28003212

Product description

- Fixed output built-in LED driver

- Constant current LED driver

- For luminaires of protection class I and protection class II

- Adjustable output current 700 or 800 mA

- Up to 90 % efficiency

- For ambient temperatures up to 60 °C

- Nominal lifetime up to 50,000 h (at ta 50 °C)

- 5 years guarantee

Housing properties

- Casing: polycarbonate, white

- Type of protection IP20

Functions

- Overload protection

- Short-circuit protection

- No-load protection

Typical applications

- For spot light, track light and wall light in retail and hospitality application

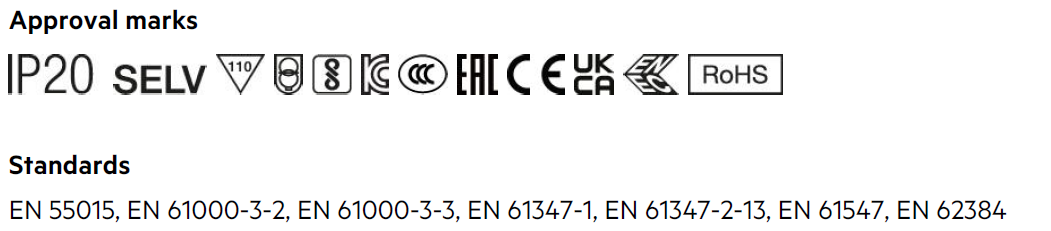

Approval marks and Standards

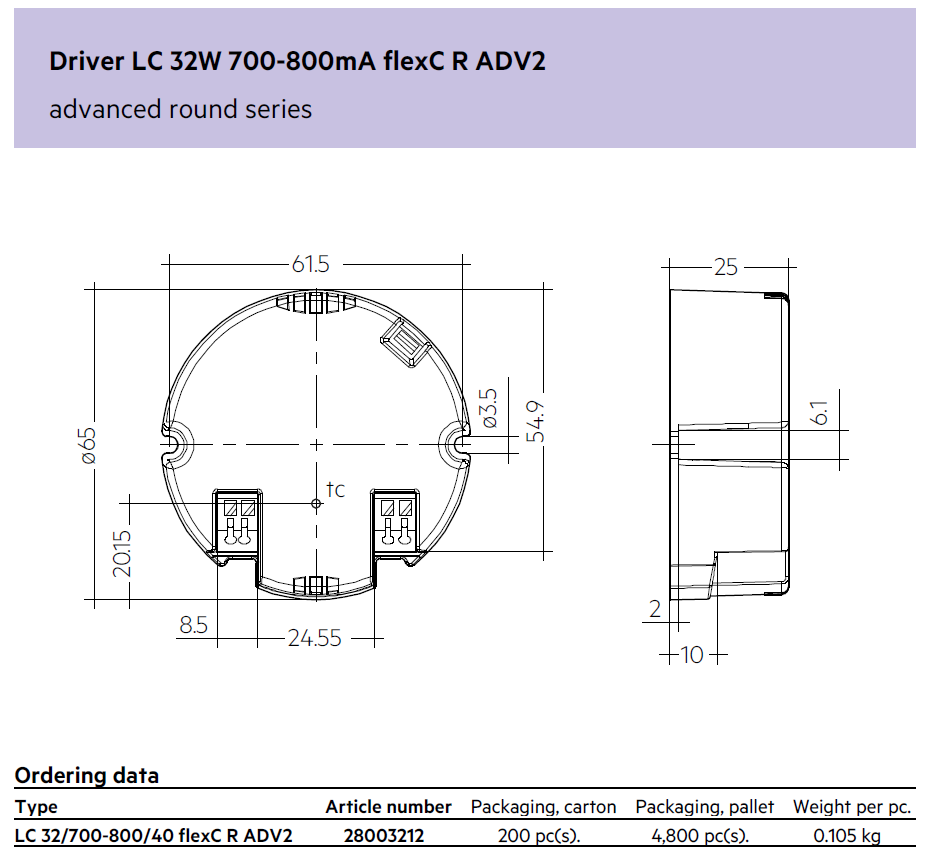

Dimension and Ordering data

Remark

LC 14/250-350/40 flexC R ADV2      28003210

LC 24/500-600/40 flexC R ADV2 F   28003215

LC 24/500-600/40 flexC R ADV2      28003211

LC 32/700-800/40 flexC R ADV2      28003212

LC 36/850-900/40 flexC R ADV2      28003213
