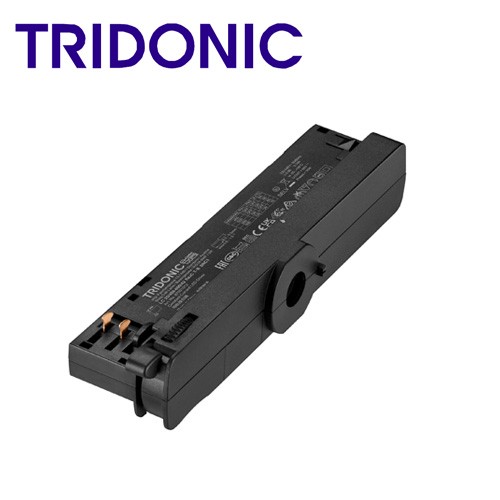

Tridonic LED Driver LC 34W 650-800mA flexC T-B SNC3 87501151

Product description

- Constant current / in-track LED driver

- Optional accessory ACU ALU NIPPLE M10x1 for mounting the luminaire head

- Compatible 3-phase system in-tracks, see data sheet chapter 3.8

- For luminaires of protection class II

- BIS approval mark for the white and black versions only

- Temperature protection as per EN 61347-2-13 C5e

- Selectable fixed output current via DIP switch 800, 750, 700 and 650 mA (pre-selected current 650 mA)

- Max. output power 33.6 W

- Up to 87.5 % efficiency

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Casing: polycarbonate, black, white or grey

- Type of protection IP20

Functions

- Overload protection

- Short-circuit protection

- No-load protection

Typical applications

- For spot light in retail and hospitality application

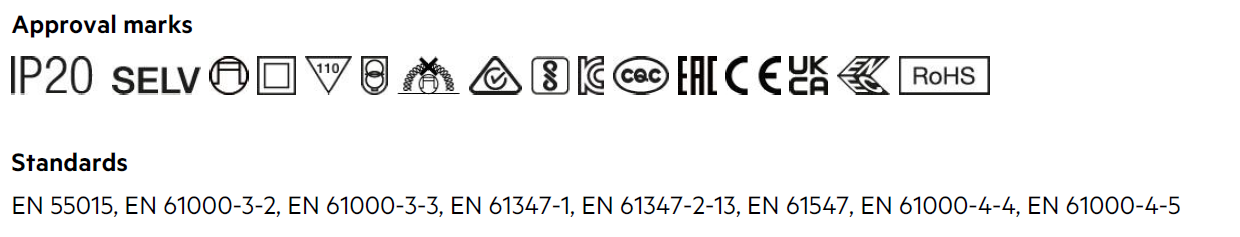

Approval marks and Standards

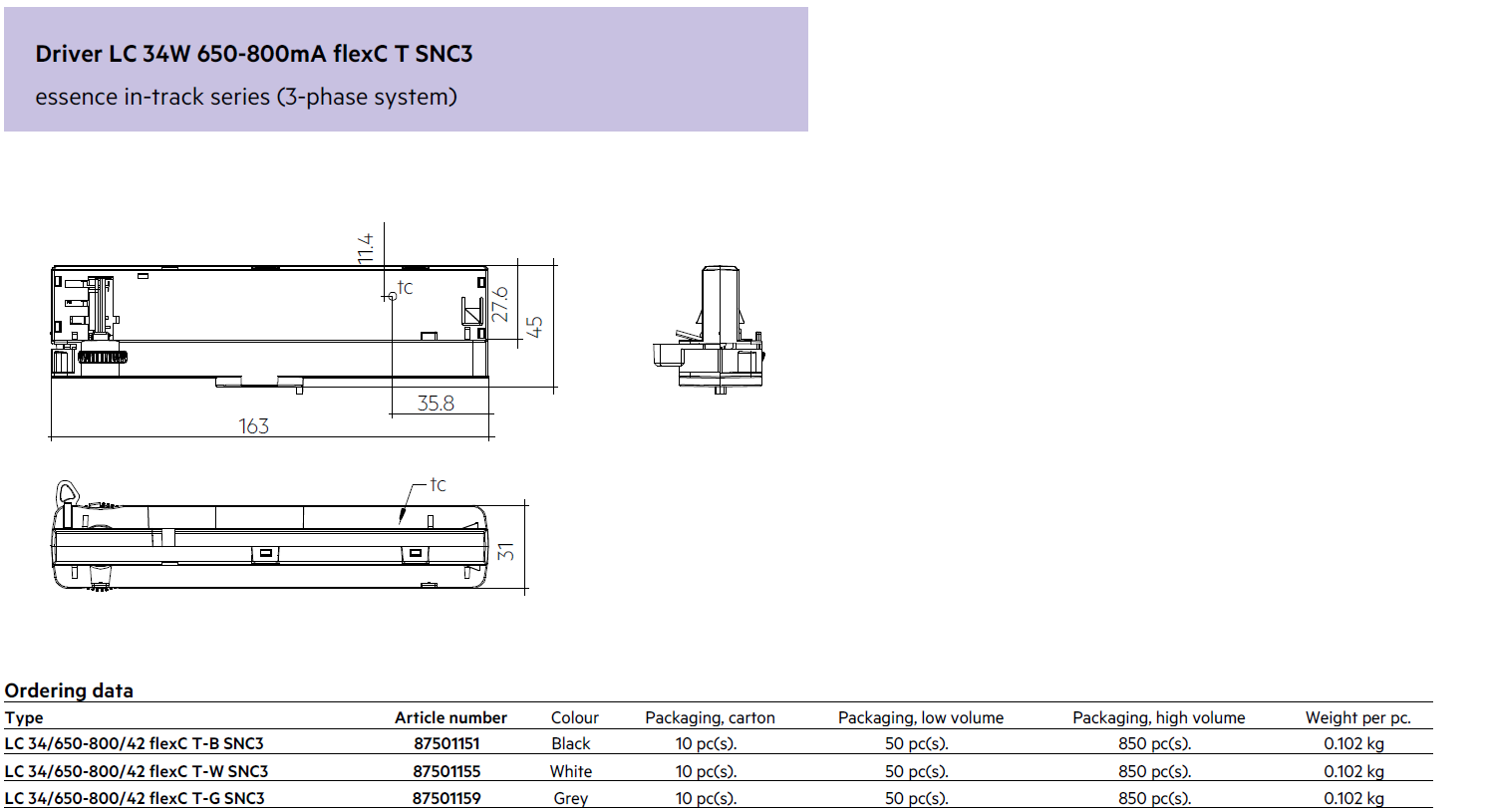

Dimension and Ordering data

Remark

LC 15/200-350/42 flexC T-B SNC3       87501149

LC 15/200-350/42 flexC T-W SNC3      87501153

LC 15/200-350/42 flexC T-G SNC3       87501157

LC 25/450-600/42 flexC T-B SNC3       87501150

LC 25/450-600/42 flexC T-W SNC3      87501154

LC 25/450-600/42 flexC T-G SNC3       87501158

LC 34/650-800/42 flexCT-B SNC3        87501151

LC 34/650-800/42 flexC T-W SNC3      87501155

LC 34/650-800/42 flexC T-G SNC3       87501159

LC 42/900-1050/40 flexC T-B SNC3     87501152

LC 42/900-1050/40 flexC T-W SNC3    87501156

LC 42/900-1050/40 flexC T-G SNC3     87501160

LC 17/250-400/42 flexC T-B SNC4       87501161

LC 17/250-400/42 flexC T-W SNC4      87501164

LC 17/250-400/42 flexC T-G SNC4       87501167

LC 34/500-800/42 flexC T-B SNC4       87501162

LC 34/500-800/42 flexC T-W SNC4      87501165

LC 34/500-800/42 flexC T-G SNC4       87501168

LC 44/900-1050/42 flexC T-B SNC4     87501163

LC 44/900-1050/42 flexC T-W SNC4    87501166

LC 44/900-1050/42 flexC T-G SNC4     87501169
