Tridonic LED Driver LC 35W 24V SC SNC2 87501050

Product description

- Constant voltage LED driver

- Output voltage 24 V

- Max. output power 35 W

- Dimmable via external PWM LED dimmers attached on output side

- For luminaires of protection class I and protection class II

- The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging

- Nominal lifetime up to 50,000 h

- 5 years guarantee

Typical applications

- Cove lighting, facade accent lighting, ceiling integration, refrigerated displays

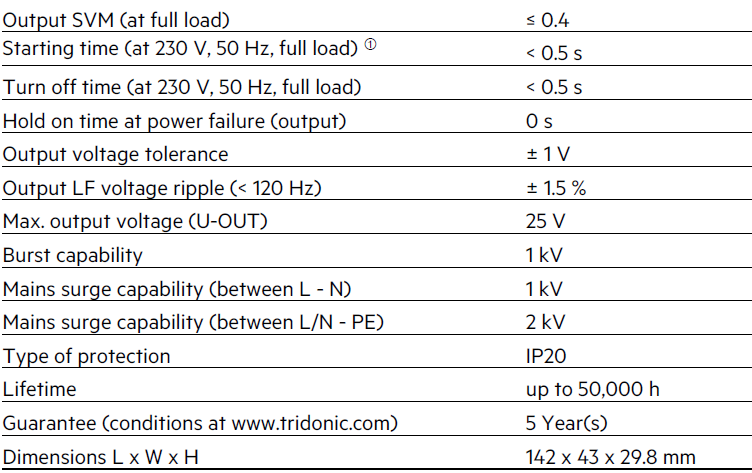

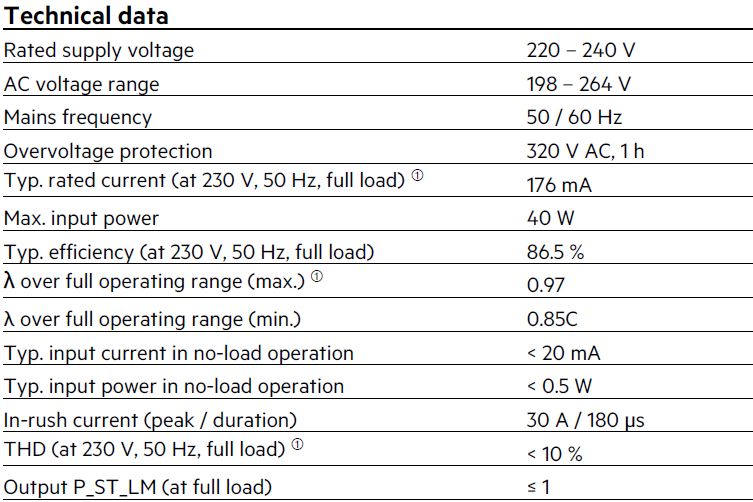

Technical details

- 24 V, 35 W

- Small design (142 x 43 x 30 mm) with stretched-compact strain relief

- Output LF voltage ripple (< 120 Hz) ± 1.5 %

- Power input on stand-by < 0.5 W

- Small cross section

- Push terminals for simple wiring

System solution

- Tridonic LLE-FLEX ADV G2 600, 1,200, 1,800 lm/m

- Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m

- In connection with Flex accessories wire to PCB plug

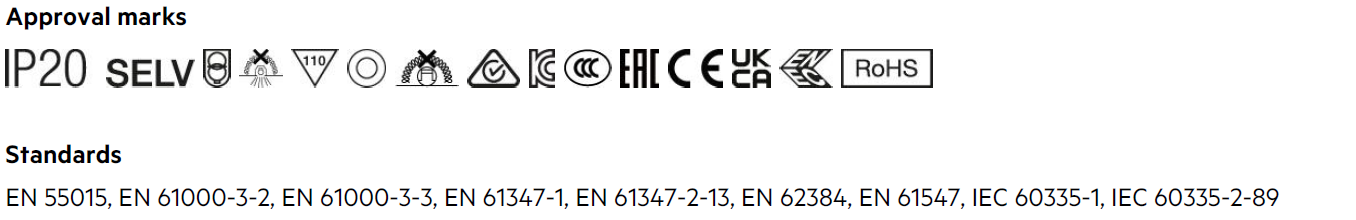

Approval marks and Standards

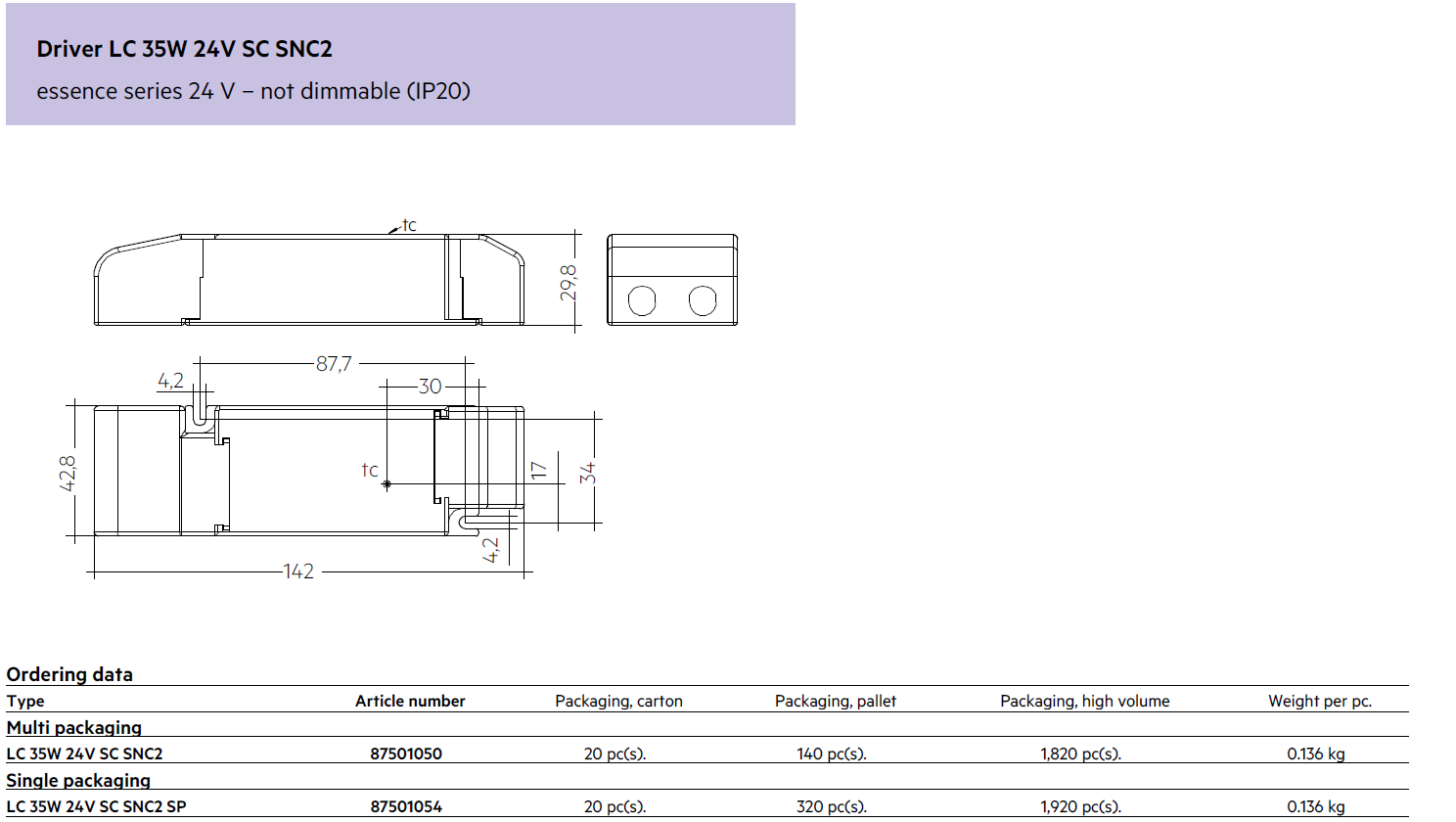

Dimension and Ordering data

Remark

LC 18W 24V SR SNC       87500931

LC 35W 24V SC SNC2     87501050

LC 60W 24V SC SNC2     87501051

LC 100W 24V SC SNC2   87501052

LC 200W 24V SC SNC2   87501053

LC 18W 24V lp SNC        87500938

LC 35W 24V lp SNC2      87501091

LC 60W 24V lp SNC2      87501092

LC 100W 24V lp SNC2     87501093

LC 35W 48V SC SNC       87501094

LC 60W 48V SC SNC       87501095

LC 100W 48V SC SNC     87501096

LC 200W 48V SC SNC     87501097
