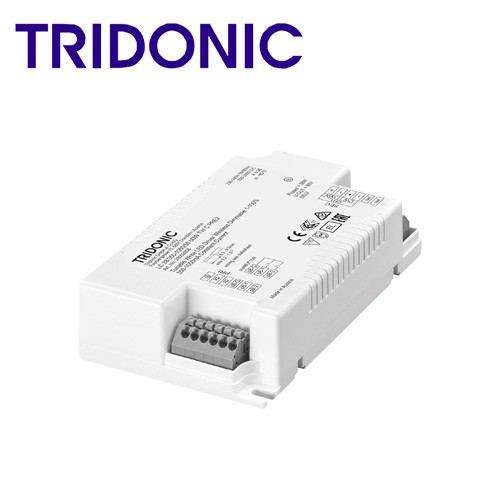

Tridonic LED Driver LC 38W 350–1050mA bDW TW C PRE2 28002858

Product description

- Can be integrated in Casambi systems (Casambi Ready)

- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)

- Dimmable built-in constant current 2-channel LED driver

- Forms automatically a wireless communication network with up to 250 nodes

- Dimming range 1 to 100 %

- Suitable for luminaires of protection class I and protection class II (see data sheet chapter 3.4 for details)

- Adjustable output current between 350 and 1,050 mA via I-SELECT 2 plugs

- Max. output power 38 W

- Up to 87 % efficiency

- Power input on stand-by < 0.4 W

- Nominal lifetime up to 100,000 h

- 5 years guarantee

- We will provide security updates for the next five years after the date of purchase of this product

Housing properties

- Casing: polycarbonate, white

- Type of protection IP20

Interfaces

- basicDIM Wireless

- Terminal blocks: 45° push terminals

Functions

- Adjustable output current in 1-mA-steps (I-SELECT 2)

- Constant light output function (CLO)

- Power-up fading and fade2zero

- Protective features (overtemperature, short-circuit, overload, no-load, reduced surge amplification)

- Intelligent Voltage Guard (overvoltage and undervoltage monitoring)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Application-oriented operating window for maximum compatibility

- Best energy savings due to low stand-by losses

Typical applications

- For spot light and downlight in retail and hospitality applications

- Tunable white application

Approval marks and Standards

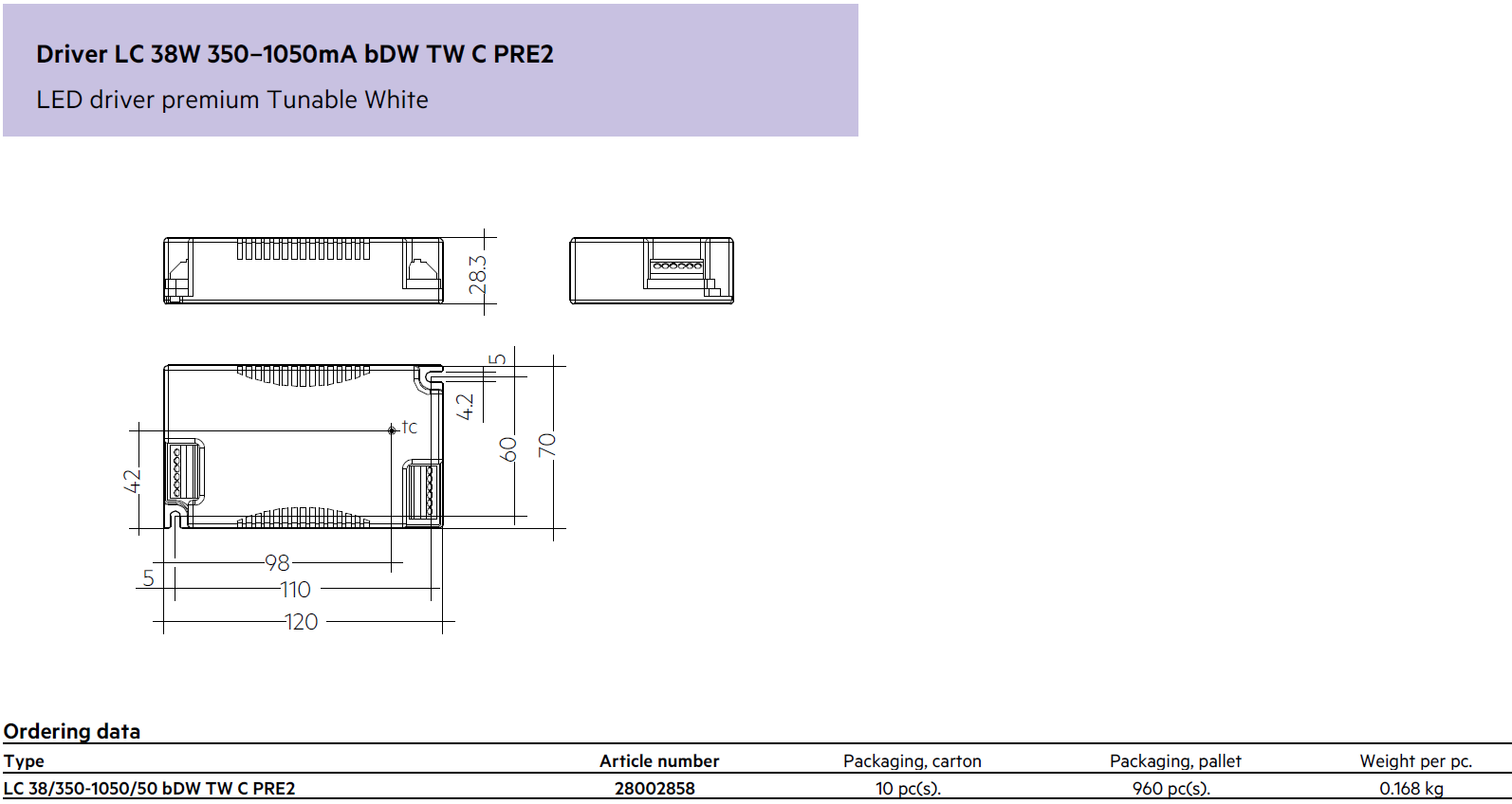

Dimension and Ordering data

Remark

LC 38/350-1050/50 bDW TW C PRE2     28002858

LC 38/350-1050/50 bDW TW SR PRE2   28002584

LCA 38W 350-1050mA DT8 C PRE         28002199

LCA 38W 350-1050mA DT8 SR PRE       28002202

LCA 38W 350-1050mA 2xCH C PRE       28002201

LCA 38W 350-1050mA 2xCH SR PRE     28002204
