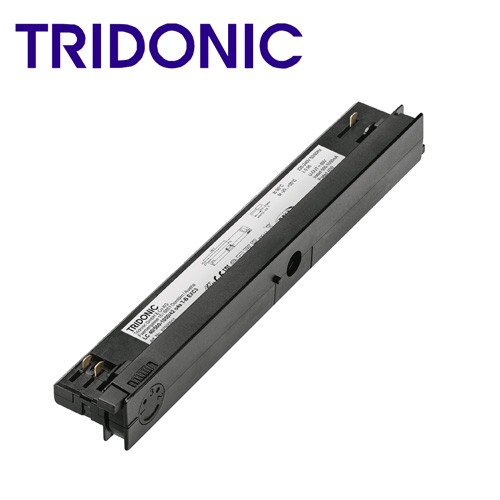

Tridonic LED Driver LC 40W 500-1050mA 42V o4a T-B EXC3 87500911

Product description

- Dimmable constant current / in-track LED driver

- Optional accessory ACU ALU NIPPLE M10x1 for mounting the luminaire head

- Compatible with Global Trac PULSE from Nordic Aluminum and OneTrack from Stucchi, see data sheet chapter 3.8

- Dimming range 1 to 100 % (min. 5 mA)

- For luminaires of protection class II

- Temperature protection as per EN 61347-2-13 C5e

- Adjustable output current between 500 and 1,050 mA via I-SELECT 2 plugs or DALI

- Max. output power 40 W

- Up to 85 % efficiency

- Power input on stand-by < 0.5 W

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Casing: polycarbonate, black, white or grey

- Type of protection IP20

Interfaces

- one4all (DALI-2, switchDIM, corridorFUNCTION)

- Terminal blocks: 45° push terminals

Functions

- Adjustable output current in 1-mA-steps (DALI-2, I-SELECT 2)

- Overtemperature protection

- Overload protection

- Short-circuit protection

- No-load protection

- Burst protection voltage 2 kV

- Surge protection voltage 1 kV (L to N)

Benefits

- Flexible configuration via companionSUITE (DALI-2)

Typical applications

- For spot light in retail and hospitality application

Approval marks and Standards

Dimension and Ordering data

Remark

LC 25/350-600/42 bDW NF T-B EXC3       28003054

LC 25/350-600/42 bDW NF T-W EXC3      28003055

LC 25/350-600/42 bDW NF T-G EXC3       28003056

LC 40/500-1050/42 bDW NF T-B EXC3     28003057

LC 40/500-1050/42 bDW NF T-W EXC3    28003058

LC 40/500-1050/42 bDW NF T-G EXC3     28003059

LC 25/350-600/42 o4a NF T-B EXC3         87500896

LC 25/350-600/42 04a NF T-W EXC3        87500897

LC 25/350-600/42 o4a NF T-G EXC3        87500898

LC 40/500-1050/42 o4a NF T-B EXC3       87500899

LC 40/500-1050/42 o4a NF T-W EXC3      87500900

LC 40/500-1050/42 o4a NF T-G EXC3       87500901

LC 25/350-600/42 o4a T-B EXC3              87500908

LC 25/350-600/42 o4a T-W EXC3             87500909

LC 25/350-600/42 o4a T-G EXC3              87500910

LC 40/500-1050/42 o4a T-B EXC3            87500911

LC 40/500-1050/42 o4a T-W EXC3           87500912

LC 40/500-1050/42 o4a T-G EXC3            87500913
