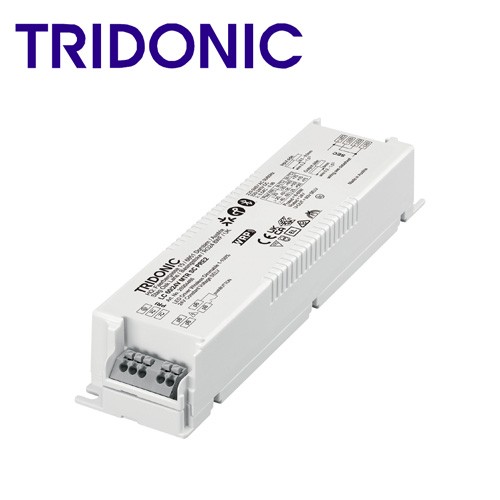

Tridonic LED Driver LC 60W 24V MTR SC PRE2 28004486

Product description

- Matter certified device

- Communication via an IPv6 Thread Network

- Thread Border Router is required (e.g. Apple HomePod mini or Google NestHub)

- Independent push-button input for free configuration

- Wireless firmware updates possible

- Dimmable 24 V constant voltage LED driver for flexible constant voltage strips

- Can be either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)

- The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging

- Dimming range 1 to 100 %

- No additional external dimmer is needed

- Suitable for emergency escape lighting systems acc. to EN 50172

- Nominal lifetime up to 50,000 h

- 5 years guarantee

Typical applications

- Cove lighting, facade accent lighting, ceiling integration

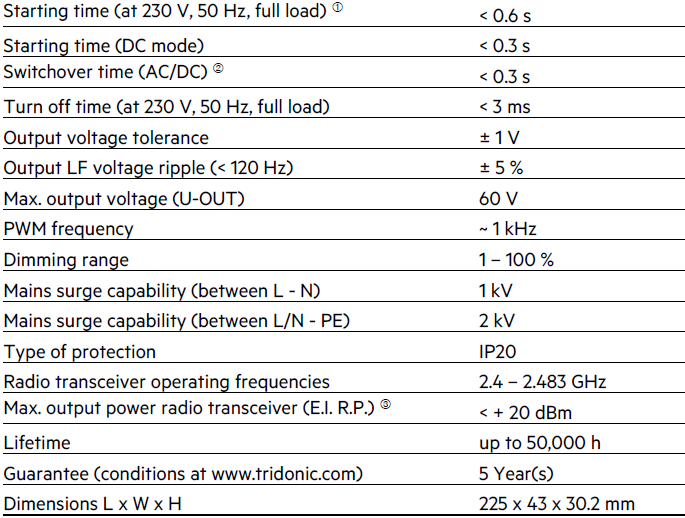

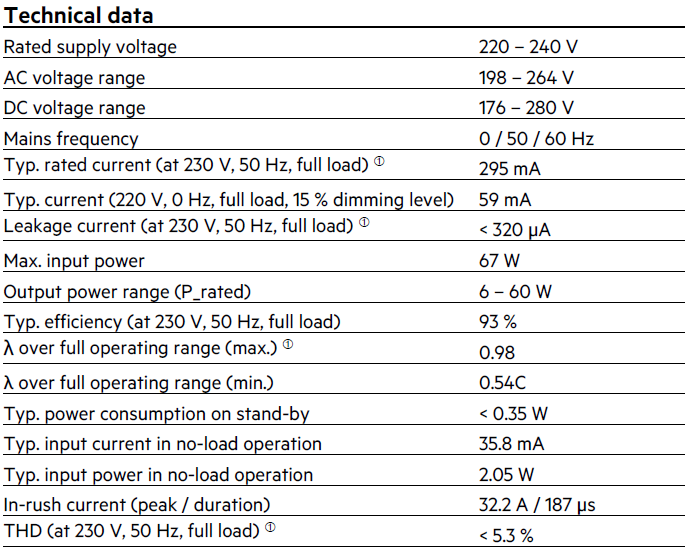

Technical details

- 24 V, 60 W

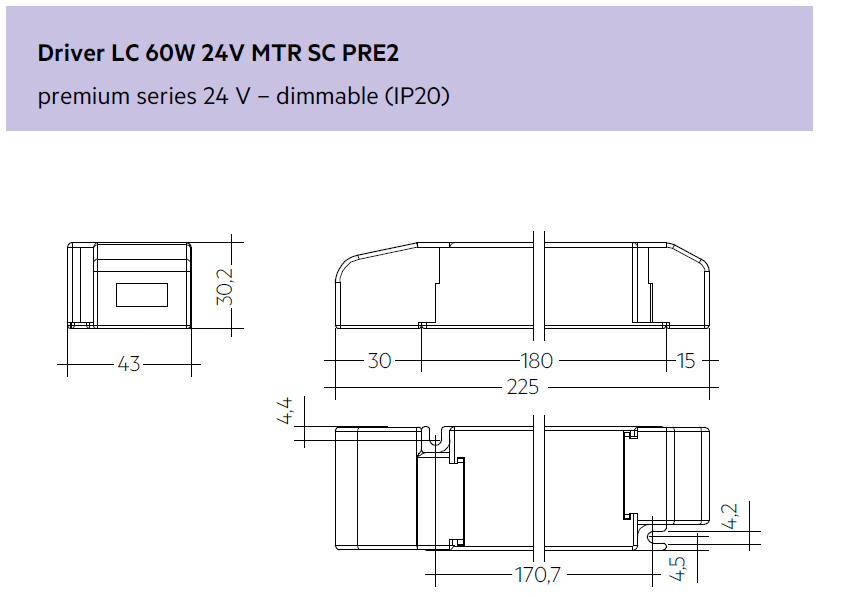

- Small design (225 x 43 x 30.2 mm) with stretched-compact strain relief

- Small cross section

- Push terminals for simple wiring

- Output terminals (+/–) equipped twice for more flexibility in the application

Interfaces

- Matter

- Terminal blocks: 45° push terminals

System solution

- Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m

- Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m

- In connection with Flex accessories wire to PCB plug

- Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly

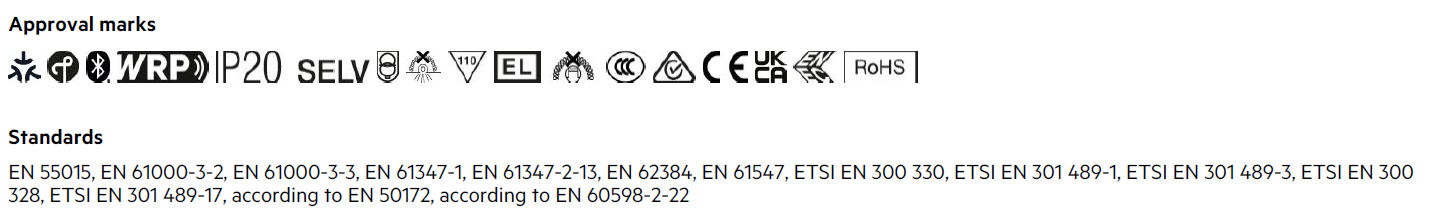

Approval marks and Standards

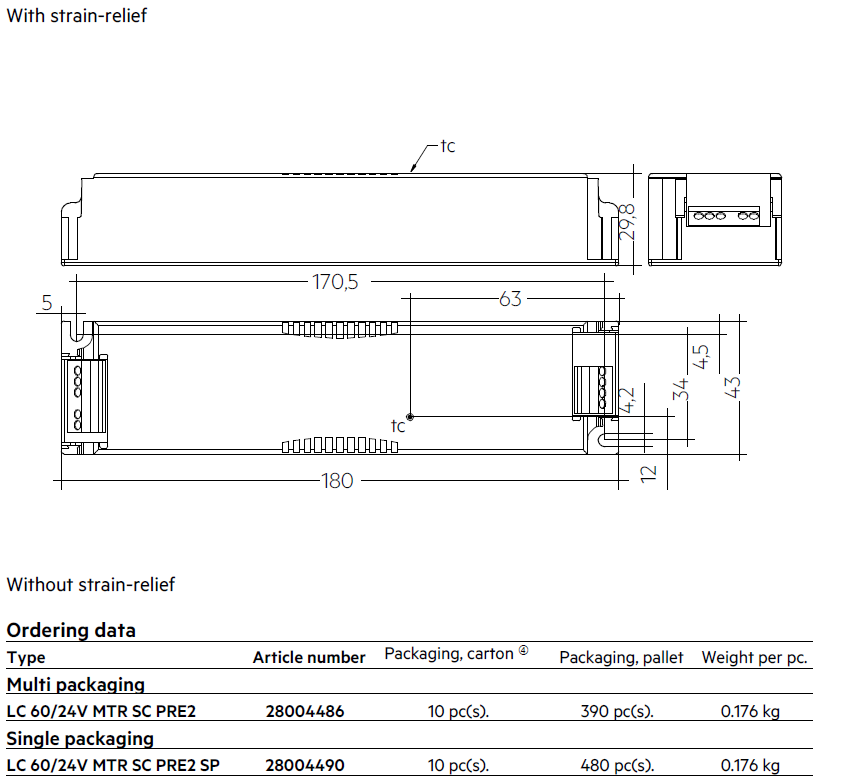

Dimension and Ordering data

Remark

LC 35/24V bDW SC PRE2      28002415

LC 60/24V bDW SC PRE2      28002416

LC 100/24V bDW SC PRE2    28002417

LC 150/24V bDW SC PRE2    28002418

LC 35/24V MTR SC PRE2      28004485

LC 60/24V MTR SC PRE2      28004486

LC 100/24V MTR SC PRE2    28004487

LC 150/24V MTR SC PRE2    28004488
