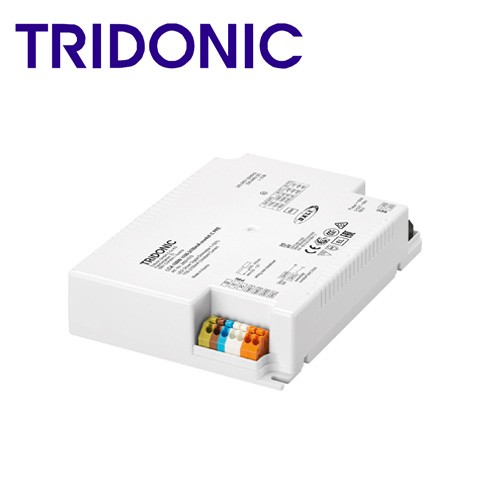

Tridonic LED Driver LCA 100W 1100–2100mA one4all C PRE 28001570

Product description

- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)

- Dimmable built-in constant current LED driver

- Dimming range 1 to 100 %

- For luminaires of protection class I and protection class II

- Adjustable output current between 1,100 and 2,100 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI

- Max. output power 100 W

- Up to 92 % efficiency

- Power input on stand-by < 0.2 W

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Casing: polycarbonate, white

- Type of protection IP20

Interfaces

- one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)

- ready2mains (configuration and dimming via mains)

- Terminal blocks: 45° push terminals

Functions

- Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)

- Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)

- Constant light output function (CLO)

- Power-up fading at AC

- Configurable via ready2mains

- Switch off the driver with fade2zero

- Service monitor to log certain events

- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Application-oriented operating window for maximum compatibility

- Best energy savings due to low stand-by losses and high efficiency

- Flexible configuration via DALI, ready2mains and I-SELECT 2

- Reliability proven by lifetime up to 100,000 h and 5 years guarantee

Typical applications

- For linear/area lighting in office applications

Approval marks and Standards

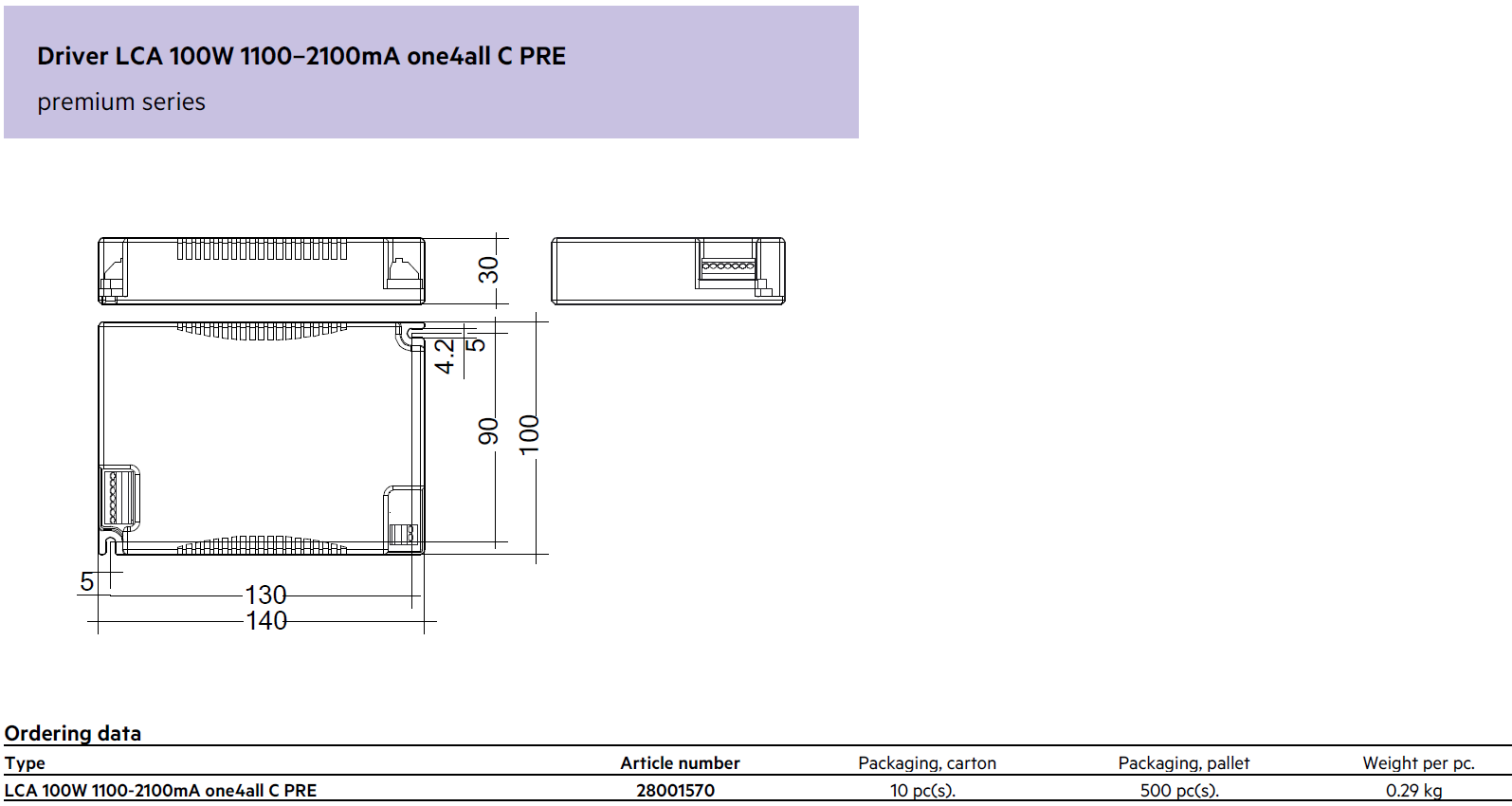

Dimension and Ordering data

Remark

LCA 10W 150-400mA one4all C PRE             28000663

LCA 17W 250-700mA one4all C PRE             28000664

LCA 25W 350-1050mA one4all C PRE           28000665

LCA 45W 500-1400mA one4all C PRE           28000666

LCA 60W 900-1750mA one4all C PRE           28000667

LCA 100W 1100-2100mA one4all C PRE        28001570

LCA 10W 150-400mA one4all SR PRE           28000669

LCA 17W 250-700mA one4all SR PRE           28000670

LCA 25W 350-1050mA one4all SR PRE         28000671

LCA 45W 500-1400mA one4all SR PRE         28000672

LCA 60W 900-1750mA one4all SR PRE         28000677

LCA 100W 1100-2100mA one4all SR PRE      28001571

LCA 10W 150-400mA one4all SC PRE           28000673

LCA 17W 250-700mA one4all SC PRE           28000674

LCA 25W 350-1050mA one4all SC PRE         28000675

LCA 45W 500-1400mA one4all SC PRE         28000676
