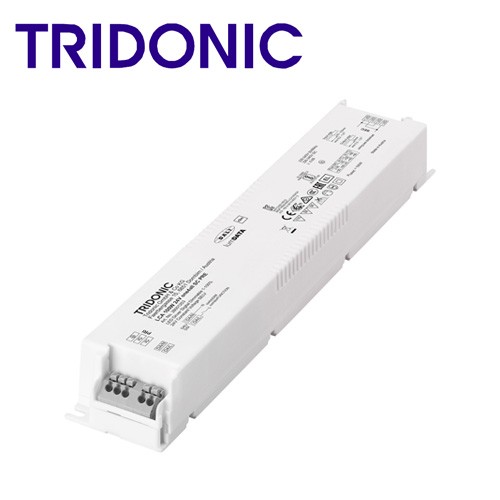

Tridonic LED Driver LCA 100W 24V o4a SC PRE 28001253

Product description

- NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)

- Dimmable 24 V constant voltage LED driver for flexible constant voltage strips

- Can be either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)

- The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging

- One4all interface and ready2mains enable different dimming options

- Dimming range 1 to 100 %

- No additional external dimmer is needed

- Suitable for emergency escape lighting systems acc. to EN 50172

- Nominal lifetime up to 50,000 h

- 5 years guarantee

Typical applications

- Cove lighting, facade accent lighting, ceiling integration

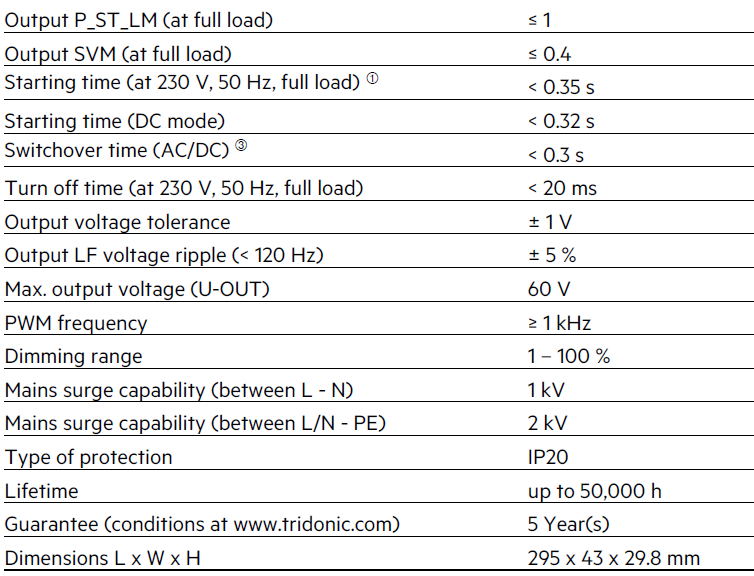

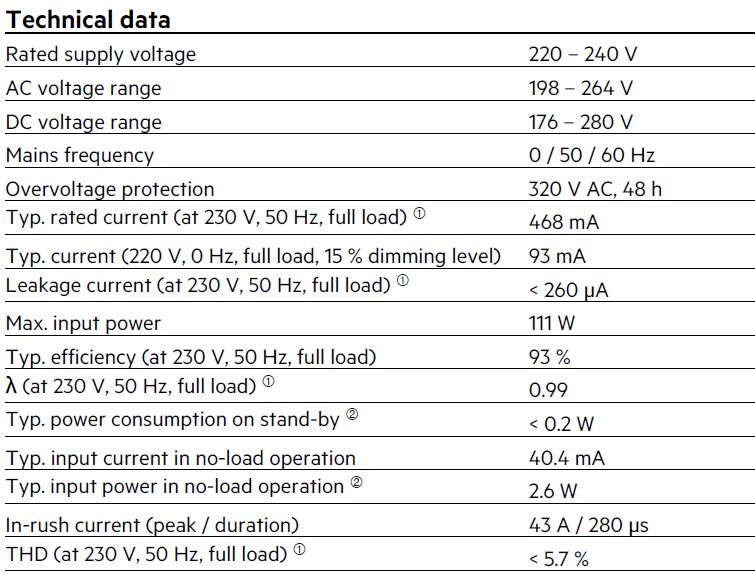

Technical details

- 24 V, 100 W

- Small design (295 x 43 x 30 mm) with stretched-compact strain relief

- Small cross section

- Push terminals for simple wiring

- Output terminals (+/–) equipped twice for more flexibility in the application

Interfaces

- one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)

- ready2mains (configuration and dimming via mains)

- Terminal blocks: 45° push terminals

System solution

- Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m

- Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m

- In connection with Flex accessories wire to PCB plug

- Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly

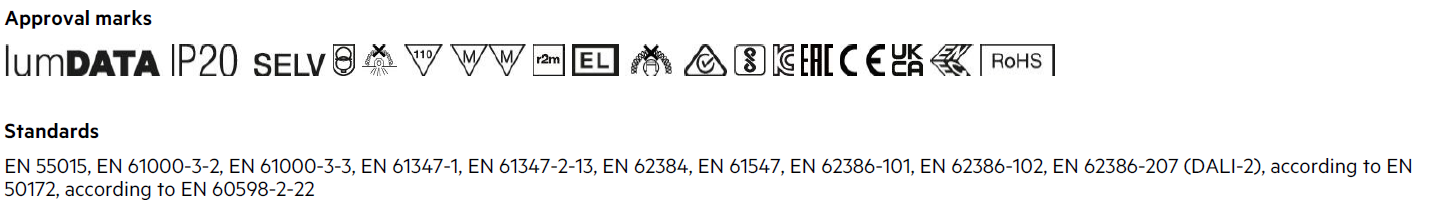

Approval marks and Standards

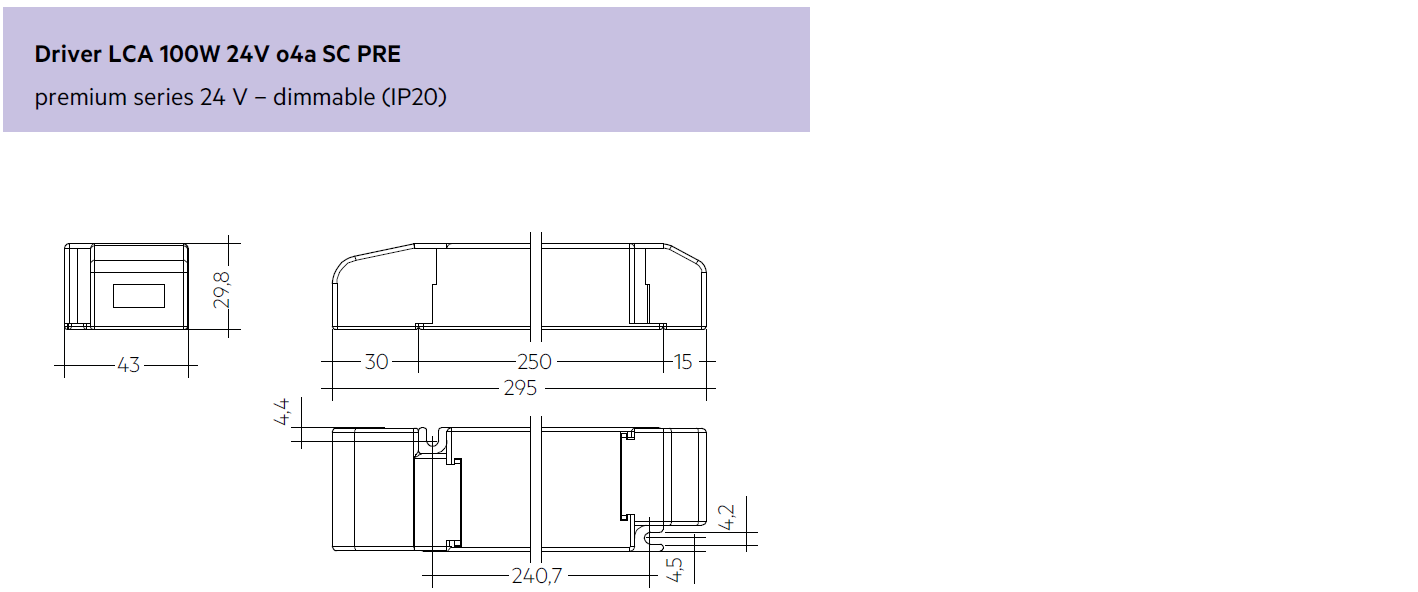

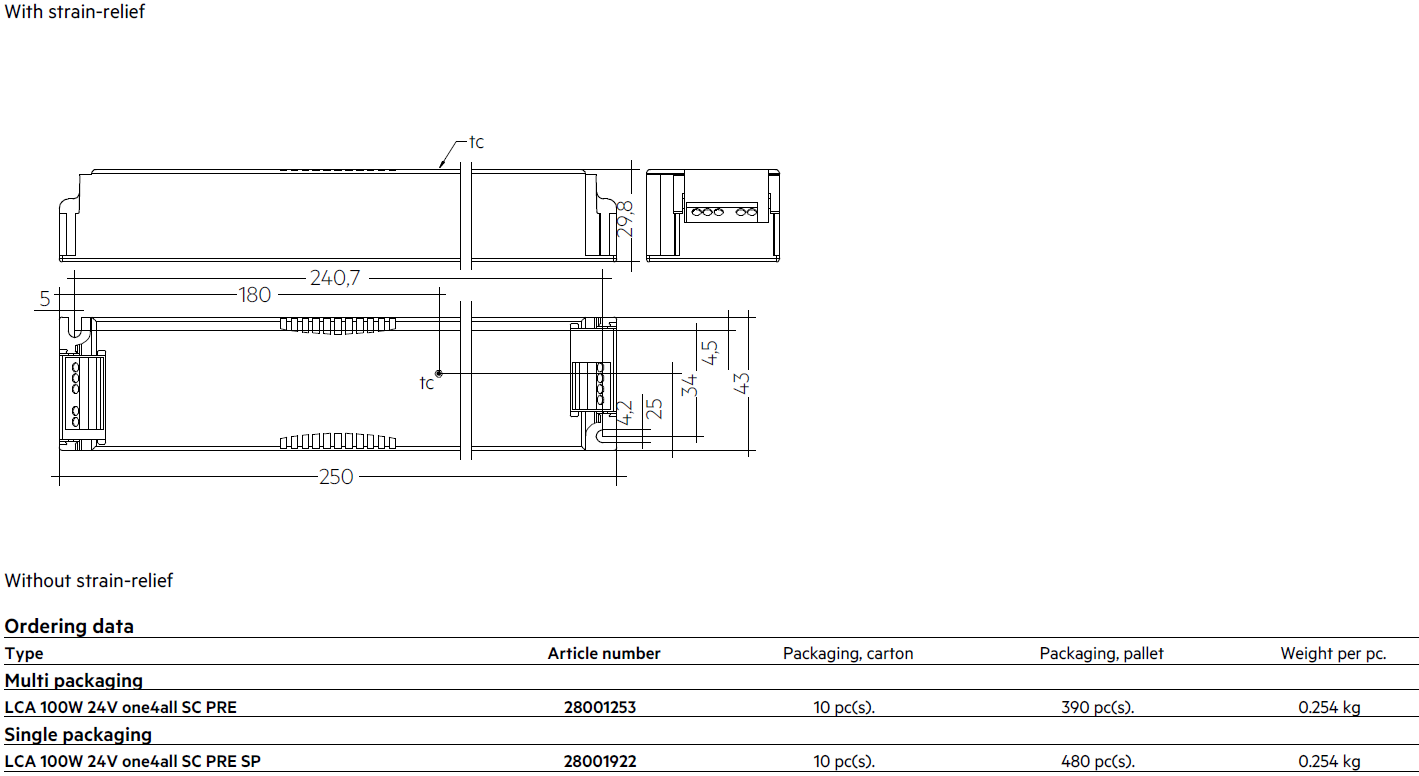

Dimension and Ordering data

Remark

LC 18W 24V one4all SC PRE         28003517

LCA 35W 24V one4all SC PRE       28001662

LCA 60W 24V one4all SC PRE       28001663

LCA 100W 24V one4all SC PRE     28001253

LCA 150W 24V one4all SC PRE     28001437

LC 18W 24V one4all lp PRE          28003519

LC 35W 24V one4all lp PRE          28003520

LC 60W 24V one4all lp PRE          28003521

LCA 100W 24V one4all lp PRE *   28001436
