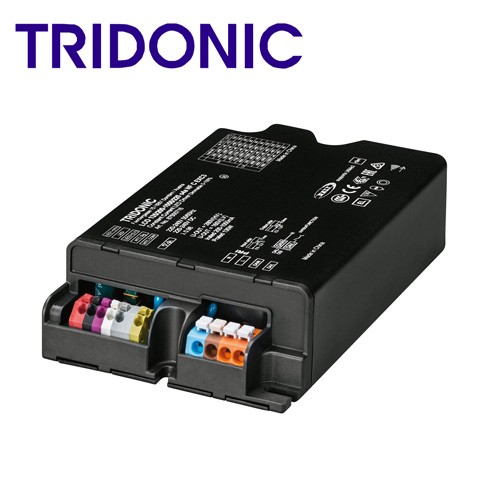

Tridonic LED Driver LCO 135W 200–1050mA 220V o4a NF C EXC3 87500716

Product description

- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)

- Dimmable built-in constant current outdoor LED driver

- Dimming range 5 – 100 % (min. 10 mA)

- For luminaires of protection class I and protection class II

- Temperature protection as per EN 61347-2-13 C5e

- Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer

- Max. output power 135 W

- Up to 93 % efficiency

- Lowest power input on stand-by < 0.16 W

- Article number 28003163: Made in Europe, article number 87500716: Made in China.

- Nominal lifetime of 100,000 h and 8 years guarantee

Interfaces

- Near field communication (NFC)

- one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)

- ready2mains (configuration via mains)

- U6Me2 (configuration of chronoSTEP via mains and ready2mains Programmer)

- Terminal blocks: 45° / 0° push terminals

Functions

- Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains)

- Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2)

- Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)

- Dimming through mains voltage (inputDIM)

- Enhanced constant light output function (eCLO)

- Protective features (overtemperature, short-circuit, overload, noload, input voltage range, reduced surge amplification)

- Configurable external temperature management (ETM)

- Intelligent Temperature Guard (ITG)

- Intelligent Voltage Guard Plus (IVG+)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer

- Application-oriented operating window for maximum compatibility

- Best energy savings due to low stand-by losses and high efficiency

- In-field programming possible after installation with NFC interface and ready2mains

- High overvoltage protection: up to 10 kV asymmetric (protection class I and II)

Typical applications

- Road, street and industry

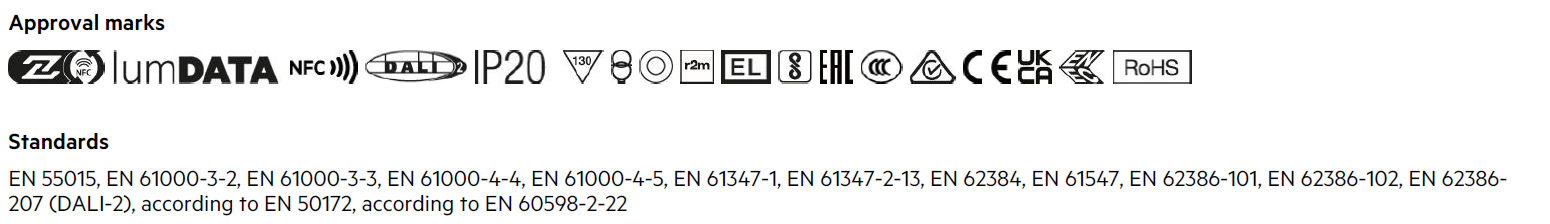

Approval marks and Standards

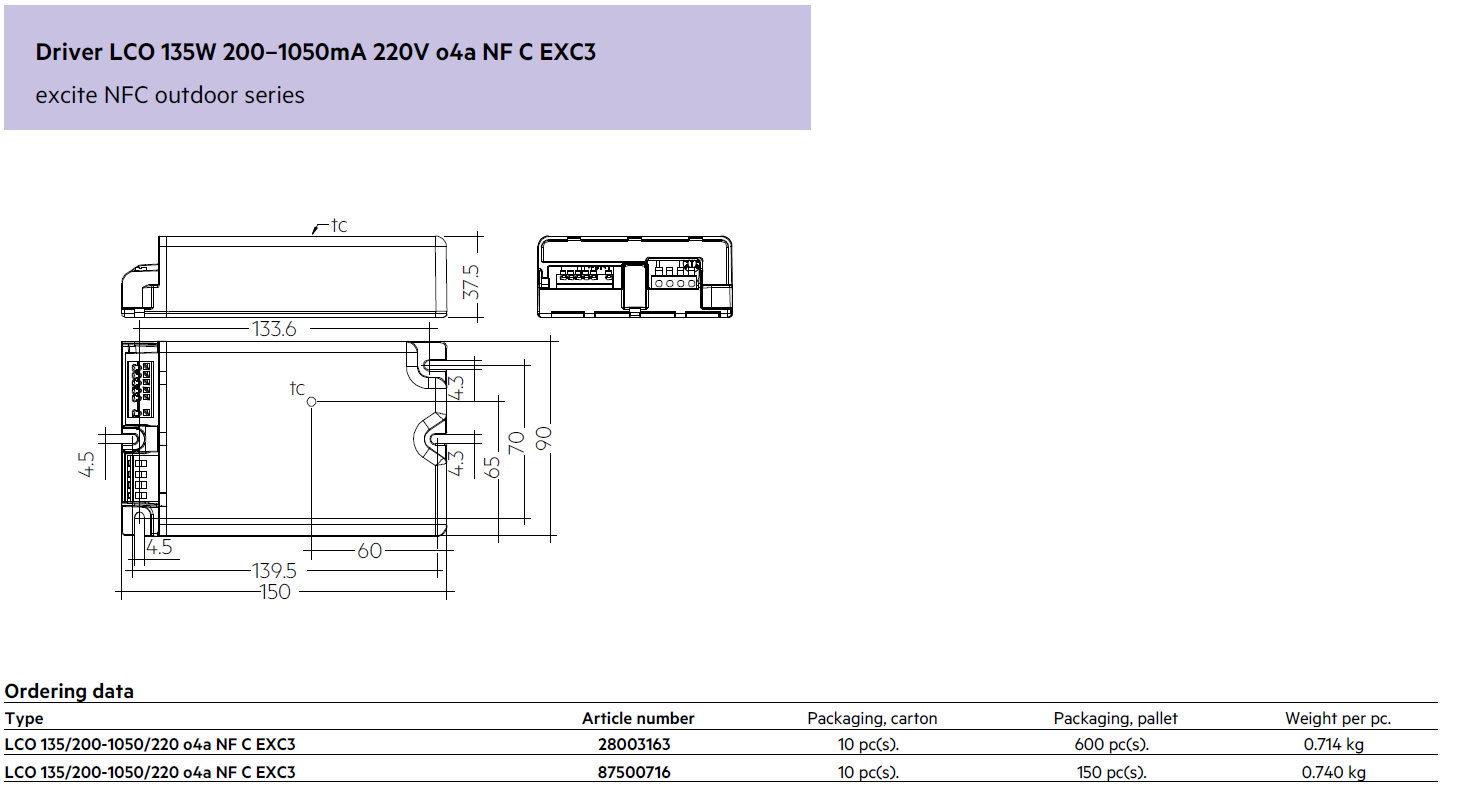

Dimension and Ordering data

Remark

LCO 14/100-500/38 o4a NF C EXC3          87500707

LCO 24/200-1050/39 o4a NF C EXC3        87500708

LCO 40/200-1050/64 o4a NF C EXC3        87500709

LCO 60/200-1050/100 o4a NF C EXC3      87500710

LCO 90/200-1050/165 o4a NF C EXC3      87500717

LCO 135/200-1050/220 o4a NF C EXC3    87500716

LCO 165/200-1050/285 o4a NF C EXC3    87500991

LCO 200/200-1050/355 o4a NF C EXC3    87500711

LCO 60/700-1500/43 o4a NF C EXC3       87501058

LCO 135/700-1500/93 o4a NF C EXC3     87501059

LCO 200/700-1500/191 o4a NF C EXC3   87501060
