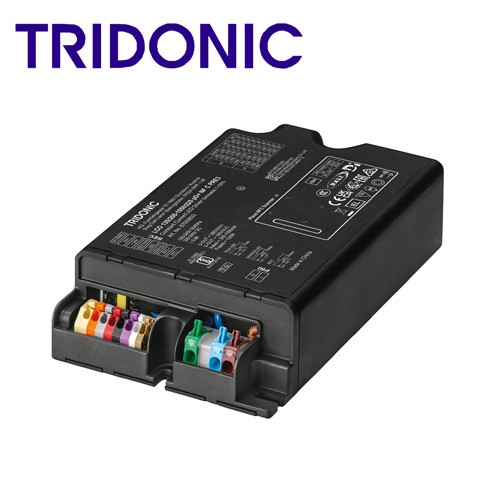

Tridonic LED Driver LCO 135W 200–1050mA 220V pD+ NF C PRE3 87500833

Product description

- Dimmable built-in constant current outdoor D4i LED driver

- Dimming range 1 to 100 % (min. 10 mA)

- For luminaires of protection class I and protection class II

- Temperature protection as per EN 61347-2-13 C5e

- Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer

- Max. output power 135 W

- Up to 93 % efficiency

- Lowest power input on stand-by < 0.3 W

- Nominal lifetime of 100,000 h and 8 years guarantee

Interfaces

- Near field communication (NFC)

- Powered DALI-2

- ready2mains (configuration via mains)

- U6Me2 (configuration of chronoSTEP via mains and ready2mains Programmer)

- Terminal blocks: 45° push terminals

Functions

- Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains)

- Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2)

- Enhanced constant light output function (eCLO)

- Protective features (overtemperature, short-circuit, overload, noload, input voltage range, reduced surge amplification)

- Intelligent Temperature Guard (ITG)

- Intelligent Voltage Guard Plus (IVG+)

- Configurable external temperature management (ETM)

- Auxiliary 24 V, 3 W power supply

- DiiA/Zhaga connectivity extensions DT49, DT50, DT51, DT52

- deviceKEY against unauthorized change of parameters

Benefits

- Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer

- Best energy savings due to low stand-by losses and high efficiency

- In-field programming possible after installation with NFC interface and ready2mains

- High overvoltage protection: up to 10 kV asymmetric (protection class I and II)

Typical applications

- Road, street and industry

Approval marks and Standards

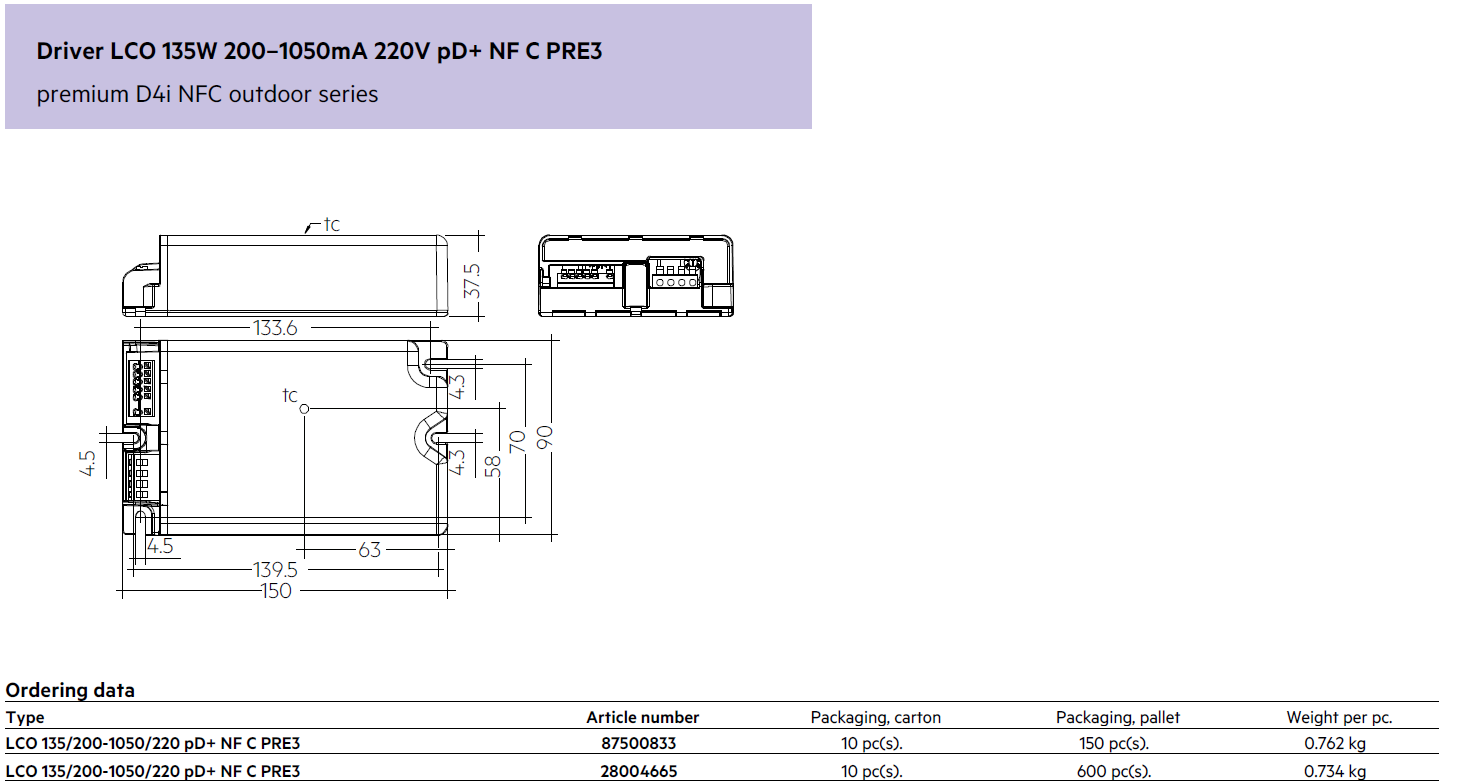

Dimension and Ordering data

Remark

LCO 14/100-550/38 pD+ NF C PRE3                 87500828

LCO 24/200-1050/39 pD+ NF C PRE3               87500829

LCO 40/200-1050/64 pD+ NF C PRE3               87500830

LCO 60/200-1050/100 pD+ NF C PRE3             87500831

LCO 90/200-1050/165 pD+ NF C PRE3             87500832

LCO 135/200-1050/220 pD+ NF C PRE3           87500833

LCO 165/200-1050/285 pD+ NF C PRE3           87500990

LCO 200/200-1050/355 pD+ NF C PRE3           87500834

LCO 40/200-1050/58 2xCH pD+ NF C PRE3      87501040

LCO 80/200-1050/91 2xCH pD+ NF C PRE3      87501041

LCO 120/200-1050/182 2xCH pD+ NF C PRE3   87501042
