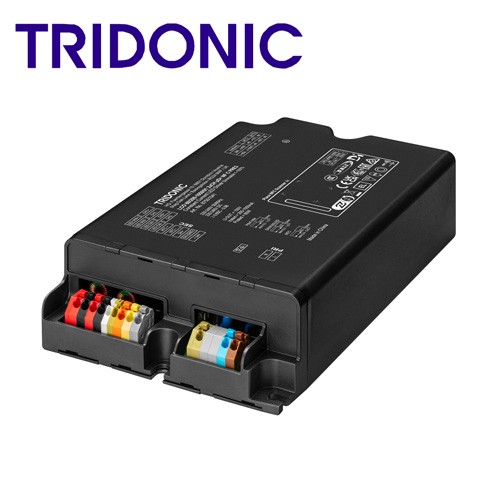

Product description
- Dimmable constant current D4i LED driver with two channels for outdoor applications
- Perfect in combination with two channel LED modules RLE 2x4 / 2x8 2xCH
- Dimming range 1 – 100 % (min. 2 mA)
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Output current adjustable between 200 – 1,050 mA for each channel via NFC or DALI
- Max. output power 80 W shared between the two channels
- Up to 91 % efficiency
- Low stand-by input power < 0.3 W
- Nominal lifetime of 100,000 h and 8 years guarantee
Interfaces
- Near field communication (NFC)
- Powered DALI-2
- U6Me2 (configuration of chronoSTEP via mains and ready2mains Programmer)
- Terminal blocks: 45° push terminals
Functions
- DALI 1 x DT8 (TC), 2 x DT6 or 1 x (2 x DT6) modes selectable at configuration
- Adjustable output current in 1-mA-steps (NFC, DALI)
- Programmable chronoSTEP: times, levels and CCT (NFC, DALI, U6Me2)
- Enhanced constant light output function (eCLO)
- Built-in power metering
- Protective features (overtemperature, short-circuit, overload, noload, input voltage range, reduced surge amplification)
- Intelligent Temperature Guard (ITG)
- Intelligent Voltage Guard Plus (IVG+)
- Configurable external temperature management (ETM)
- Auxiliary 24 V, 3 W power supply for sensors and communication modules
- DiiA/Zhaga connectivity extensions DT49, DT50, DT51, DT52
- deviceKEY against unauthorized change of parameters
Benefits
- Flexible configuration via companionSUITE (NFC, DAL) or ready2mains Programmer via U6Me2 protocol
- Best energy savings due to low stand-by losses and high efficiency
- In-field programming possible after installation with NFC interface and ready2mains
- High overvoltage protection: up to 10 kV asymmetric (protection class I and II)
Typical applications
- Tunable white applications
- Road, street and industry
- Tunnel lighting

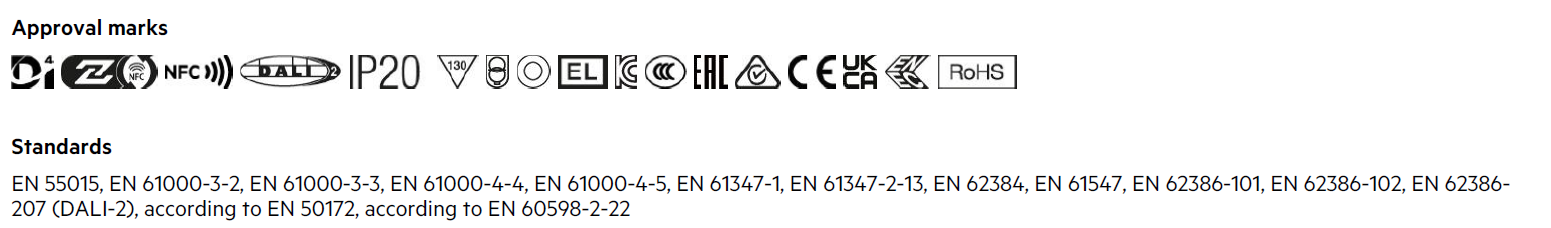

Approval marks and Standards
Dimension and Ordering data
Remark
LCO 14/100-550/38 pD+ NF C PRE3 87500828
LCO 24/200-1050/39 pD+ NF C PRE3 87500829
LCO 40/200-1050/64 pD+ NF C PRE3 87500830
LCO 60/200-1050/100 pD+ NF C PRE3 87500831
LCO 90/200-1050/165 pD+ NF C PRE3 87500832
LCO 135/200-1050/220 pD+ NF C PRE3 87500833
LCO 165/200-1050/285 pD+ NF C PRE3 87500990
LCO 200/200-1050/355 pD+ NF C PRE3 87500834
LCO 40/200-1050/58 2xCH pD+ NF C PRE3 87501040
LCO 80/200-1050/91 2xCH pD+ NF C PRE3 87501041
LCO 120/200-1050/182 2xCH pD+ NF C PRE3 87501042
