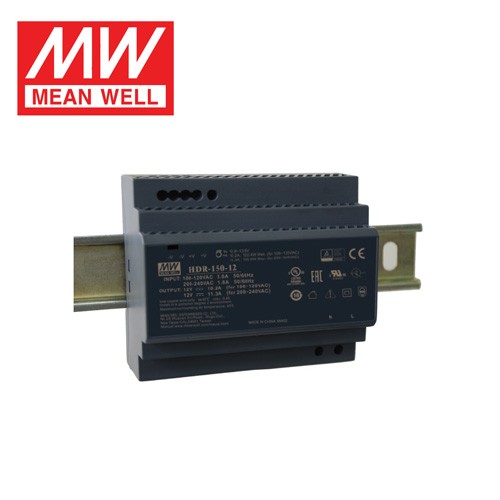

MEAN WELL Power Supply HDR-150 Series Ultra Slim Step Shape DIN Rail - 副本

Product Item : HDR-150 series
Category：DIN Rail Power Supplies
Wattage: 150W
Input Voltage: 85 ~ 264VAC(277VAC operational) 120 ~ 370VDC(390VDC operational)
Output Current: 0 ~ 10.2A
Output Voltage: 12 ~ 48V
Product description：HDR-150 is one economical ultra slim 150W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails.
INQUIRY EMAIL

MDR-10 Series - 10W Ultra-Slim DIN Rail Power Supply (22.5mm, Active DC OK, 120ms Hold-up)

✓ In Stock 3-Year DC OK Signal 22.5mm Slim 120ms Hold-up UL508

Key Performance at a Glance10W
Rated Power
120ms
Hold-up (230Vac)
22.5mm
Ultra-Slim Width
84%
Max Efficiency
DC OK
Active Signal
3,334K
MTBF (hrs)

Product Overview

The MDR-10 series is MEAN WELL's ultra-slim 10W DIN rail industrial power supply with a 22.5mm width -- the narrowest DIN rail supply in MEAN WELL's portfolio. Designed for space-constrained control panels, it features a built-in active DC OK signal output that sources current to drive external LEDs, relays, or PLC inputs for real-time power status monitoring -- a capability absent from entry-level HDR and NDR models.

The MDR-10 accepts universal 85~264Vac input (120~370Vdc) with 0.33A/115V, 0.21A/230V AC current and 35A/70A cold-start inrush. Four voltages: 5V (2A), 12V (0.84A), 15V (0.67A), and 24V (0.42A) -- all delivering 10W. Efficiency ranges from 77% at 5V to 84% at 24V. The 120ms hold-up time at 230Vac is exceptionally long for a 10W supply, providing superior brownout ride-through. No-load consumption is <0.75W.

Protection is straightforward: >105% OLP in hiccup mode with auto-recovery, OVP with output shutdown requiring a restart, and short-circuit protection. The MDR-10 uses a metal chassis with FG terminal (unlike the plastic Class II HDR series) -- it requires protective earth. Isolation is 3KVac I/P-O/P, 2KVac I/P-FG, 0.5KVac O/P-FG. EMC compliance is Class B with light industrial immunity per EN61000-6-1.

The MDR-10 holds UL508, TUV BS EN/EN62368-1, EAC, BSMI, AS/NZS 62368.1, and BIS IS13252 certifications -- fully certified for global industrial deployment. At 22.5x90x100mm and only 170g, with 72 units per carton, it is the most compact DIN rail supply for distributed 10W control power. 3-year warranty with 100% full-load burn-in test.

Product Images

Technical Specifications

Parameter	MDR-10-5	MDR-10-12	MDR-10-15	MDR-10-24
DC Output Voltage	5V	12V	15V	24V
Rated Current	2A	0.84A	0.67A	0.42A
Rated Power	10W	10W	10W	10W
Ripple & Noise (max)	80mVp-p	120mVp-p	120mVp-p	150mVp-p
Voltage Accuracy	+/-5.0%	+/-3.0%	+/-3.0%	+/-2.0%
Line / Load Regulation	+/-1.0% / +/-5.0%	+/-1.0% / +/-3.0%	+/-1.0% / +/-3.0%	+/-1.0% / +/-2.0%
Efficiency (Typ.)	77%	81%	81%	84%
OVP Threshold	5.75~6.75V	13.8~16.2V	17.25~20.25V	27.6~32.4V
DC OK Signal (max)	3.75~6V / 50mA	9~13.5V / 40mA	11.5~16.5V / 40mA	18~27V / 20mA

Input & Features (All Models)

Input Voltage Range	85~264Vac or 120~370Vdc; 47~63Hz
AC Current / Inrush / No-Load	0.33A/115V, 0.21A/230V \| 35A/115V, 70A/230V (cold start) \| <0.75W
Leakage Current	<1mA / 240Vac
Hold-up / Start-up	120ms/230V, 25ms/115V \| 500ms/30ms@230V, 1000ms/30ms@115V (cold start)
Overload / OVP / SC	>105% hiccup mode, auto-recovery \| OVP: shutdown, restart to recover \| SC: auto-recovery
DC OK Signal	Active sourcing output -- drives external LED, relay, or PLC digital input to indicate output healthy status (see per-model limits above)
Operating Temperature	-20~+70C (derating curve); 20~90% RH non-condensing
Storage / Temp Coefficient	-40~+85C, 10~95% RH \| +/-0.03%/C (0~50C)
Vibration / Altitude	2G, 10~500Hz, IEC60068-2-6 \| 2,000m (derate 3.5C/1000m above)
Safety Standards	UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1, AS/NZS 62368.1, BIS IS13252(Part1)/IEC60950-1
Isolation	I/P-O/P: 3KVac \| I/P-FG: 2KVac \| O/P-FG: 0.5KVac \| All: >100Mohm/500Vdc/25C/70% RH
EMC Emissions	BS EN/EN55032(CISPR32) Class B, BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, CNS15936 Class B, EAC TP TC 020
EMC Immunity	BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035; BS EN/EN61000-6-1 (light industrial); EAC TP TC 020
MTBF / Dimensions / Weight	3,334.7K hrs (Telcordia SR-332); 584.0K hrs (MIL-HDBK-217F, 25C) \| 22.5 x 90 x 100mm / 0.17kg / 72pcs per carton / 13.2kg

Key Features

Active DC OK Signal -- Built-in Monitoring
Active sourcing DC OK output drives LEDs, relays, or PLC inputs directly -- no external circuit needed. Real-time power status for industrial control panels

120ms Hold-up -- Exceptional Brownout Ride-Through
Exceptionally long 120ms hold-up at 230Vac -- 7.5x longer than typical 10W supplies, ensures reliable operation through grid disturbances and transfer switch events

22.5mm Ultra-Slim -- 44 Units per Meter
Narrowest MEAN WELL DIN rail supply -- fits 44 units on a 1m rail. Ideal for distributed 10W control power in high-density I/O panels

UL508 + BIS + BSMI -- Global Industrial Certified
Fully certified for industrial control (UL508) with India (BIS), Taiwan (BSMI), and Australia/NZ (AS/NZS 62368.1) -- deploy anywhere worldwide

Class B EMC + Light Industrial Immunity
Class B conducted and radiated EMI with EN61000-6-1 light industrial immunity -- RF-clean 10W power for sensitive control and measurement circuits

100% Burn-in + 3-Year Warranty
Every unit undergoes full-load burn-in testing before shipment with 3,334K hrs MTBF -- industrial reliability you can count on for 10W distributed power

Frequently Asked Questions

How do I use the DC OK signal?

The MDR-10's DC OK pin is an active sourcing output -- when the output voltage is healthy, it sources current at a voltage proportional to the output. You can use it three ways: (a) LED indicator -- connect DC OK to V- through a resistor; (b) Relay -- drives a small relay coil for dry-contact status signaling to a PLC/SCADA input; (c) PLC digital input -- wire directly to a 24V PLC input for real-time power monitoring. Maximum current varies by model: 50mA (5V), 40mA (12V/15V), 20mA (24V).

Does MDR-10 require an earth/ground connection?

Yes. Unlike the HDR series (Class II plastic, no FG), MDR-10 uses a metal chassis with an FG (Frame Ground) terminal that must be connected to protective earth. The three isolation ratings (I/P-O/P 3KVac, I/P-FG 2KVac, O/P-FG 0.5KVac) depend on proper earthing. If you need an earth-free solution, consider the HDR-15 or HDR-30 plastic-shell series instead.

Why is 120ms hold-up important for a 10W supply?

120ms at 230Vac is 7.5x longer than typical 10W supplies (which average 16ms). This means the MDR-10 can ride through 6+ cycles of power interruption at 50Hz. In industrial panels where a momentary brownout could cause a PLC to reboot or a safety relay to drop out, this extended hold-up keeps 10W control circuits alive through transfer switch events, generator start-up, and grid transients that would crash a standard supply.

How does MDR-10 compare to HDR-15?
