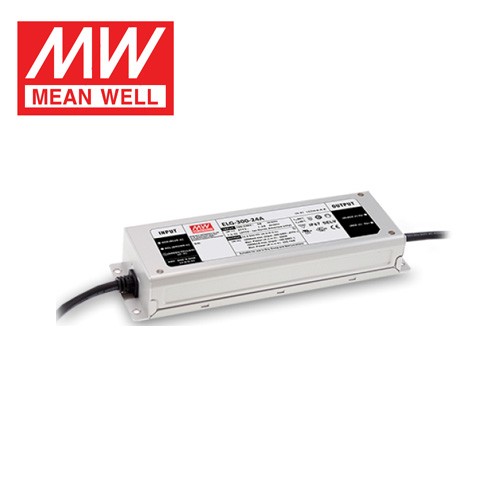

MEAN WELL Power Supply ELG-300 Series Constant Current/Voltage LED Driver - 副本

Product Item : ELG-300 series
Category：LED Driver
Wattage: 300W
Input Voltage: 100 ~ 305VAC or 142 ~ 431VDC
Output Current: 12.5 ~ 22A
Output Voltage: 12 ~ 24V
Product description：ELG-300 series is a 30oW LED driver featuring with constant current and Constant voltage mode design.ELG-300 operates from 100~305VAC and offers CV mode or CC mode applications.
INQUIRY EMAIL

ELG-100U Series - 100W CC+CV LED Driver with Active PFC, UL Class 2, Type HL, 3-in-1 Dimming Option

In Stock 5-Year Warranty CC + CV 100W Max UL Class 2 Active PFC Type HL

Key Performance at a Glance100W
Max Power
90%
Peak Efficiency
4
Voltage Options
3
Version Types
UL
Class 2
305V
Max Input

Product Overview

The MEAN WELL ELG-100U series is a 100W AC-to-DC LED driver family designed for both constant-current (CC) and constant-voltage (CV) operation. It accepts universal 100~305VAC input (142~431VDC) and offers 24V, 36V, 42V, and 48V output options, making it a flexible platform for North American LED lighting systems.

With peak efficiency up to 90%, the ELG-100U uses a fanless design and operates at a case temperature of -40C to +85C under natural convection. The metal enclosure is certified to UL8750 Type HL for use in Class I Division 2 hazardous location luminaires, and is listed as a UL Class 2 power supply for simplified wiring and installation.

Three function versions are available: Blank (fixed output), A (internal potentiometer adjustment), and B (3-in-1 dimming with dim-to-off). This lets lighting designers match the exact control strategy of each luminaire without changing the driver platform.

Standard protection includes over-current CC limiting, short-circuit hiccup, over-voltage restart, and over-temperature restart. The driver complies with UL safety and FCC Part 15 Class B emission requirements, and is backed by a 5-year warranty.

Product Images

ELG-100U series LED driver product image

ELG-100U series LED driver wiring diagram

ELG-100U series LED driver dimension diagram

Technical Specifications

Output ratings for the ELG-100U series. All values measured at 230VAC, rated load, 25C unless noted.

Model	DC Voltage	Rated Current	Power	CC Range	Efficiency
ELG-100U-24	24V	4.0A	96W	12 ~ 24V	88%
ELG-100U-36	36V	2.66A	95.76W	18 ~ 36V	89%
ELG-100U-42	42V	2.28A	95.76W	21 ~ 42V	90%
ELG-100U-48	48V	2.0A	96W	24 ~ 48V	90%

Version Types

Type	Io/Vo Adjustment	Dimming	Best For
Blank	Fixed	None	Simple fixed-output luminaires
A	Pot adjustable	None	Luminaires with current/voltage tuning
B	Fixed	3-in-1 (0-10Vdc / 10V PWM / resistor), dim-to-off	Smart street/flood lights with 0-10V control

Input & Protection (All Versions)

Input Voltage Range	100~305VAC / 142~431VDC \| 47~63Hz
Active PFC / THD / AC Current	PF>=0.97 at 120V, PF>=0.95 at 230V, PF>=0.92 at 277V \| THD<20% (>=50% load at 120V, >=60% at 230V, >=75% at 277V) \| 1.1A/120V, 0.6A/230V, 0.5A/277V
Inrush / Leakage / Hold-up	60A/277V cold start (1400us at 10% Ipeak, 620us at 50% Ipeak, NEMA 410) \| <0.75mA/277V \| 15ms/120V, 10ms/230V at full load
Standby / No-Load	<0.5W no-load and standby \| 1000ms/120V, 500ms/230V startup; 80ms/120V, 100ms/230V rise
Protection	Over-current: 95~108% CC limit, auto-recovery \| Short circuit: hiccup auto-recovery \| OVP: restart (model-specific trip range) \| OTP: restart
Operating / Storage Temp	Tcase=-40~+85C (refer to derating curve) \| Storage -40~+80C \| Temp coefficient +/-0.03%/C (0~60C)
Vibration / Humidity	10~500Hz, 5G, 12min/cycle, X/Y/Z 72min each \| 20~95% RH non-condensing
Isolation	3.75KVac I/P-O/P, 2KVac I/P-FG, 1.5KVac O/P-FG
EMC Emission / Immunity	FCC Part 15 Class B; designed to IEC61000-4-2/3/4/5/6/8/11, EN61547 light industrial
Lifetime / MTBF / Size	>50,000 hours at Tcase<75C \| 2877.8K hrs min. (Telcordia SR-332) \| 199 x 63 x 35.5mm \| 0.85kg \| 16pcs/carton / 14.2kg

Safety Standards & Certifications

Safety Standards	UL8750 (Type HL), CSA C22.2 No. 250.13-12, UL Class 2 listed
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2.0KVAC \| O/P-FG: 1.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25C / 70% RH
EMC Emissions	FCC Part 15 Class B
EMC Immunity	Designed to IEC61000-4-2/3/4/5/6/8/11 and EN61547 light industrial standards

Key Features

100W CC+CV Dual Mode -- Flexible North American Platform
Run in CC mode to drive LED strings directly, or CV mode to power LED strips, modules, or downstream DC-DC drivers. Covers a wide range of luminaire designs with a single driver family.

3 Version Types -- Blank, A, and B
Choose fixed output (Blank), potentiometer tuning (A), or 3-in-1 dimming with dim-to-off (B). Match the exact control strategy without changing the driver platform.

UL Class 2 + Type HL Certification
Listed as a UL Class 2 power supply for simplified wiring. UL8750 Type HL certification enables use in Class I Division 2 hazardous location luminaires.

Active PFC + FCC Part 15 Class B
PF>=0.97 at 120V and THD<20% keep installations compliant with harmonics regulations. FCC Part 15 Class B emission compliance for residential and commercial environments.

100~305VAC Universal Input + 5G Vibration
Covers 120V North America, 277V commercial circuits, and global grids. Fanless design rated for 5G vibration and -40C to +85C Tcase.

5-Year Warranty + >50,000 Hour Life
No fan means no noise and no moving parts. Backed by a 5-year warranty and >50,000-hour life at Tcase<75C.

Frequently Asked Questions

What is the difference between CC mode and CV mode on ELG-100U?

In CC mode the driver maintains a constant current output while the voltage automatically adjusts within the model-specific CC range to match the LED string forward voltage. In CV mode the driver maintains a stable output voltage with a current limit, suitable for LED strips, modules, or loads that expect a fixed voltage bus.

What does UL Class 2 mean for ELG-100U?

UL Class 2 means the driver has limited output power and is considered safe from a fire and electric shock perspective without requiring additional over-current protection in the field. This simplifies wiring and reduces installation cost in North American applications.

Which version type should I choose?

Blank for simple fixed-output luminaires. A-Type for fixtures needing current/voltage tuning via internal pot. B-Type for smart lighting with 0-10V/PWM/resistor dimming, including dim-to-off capability.

Does ELG-100U support DALI dimming?

No, the ELG-100U series offers Blank, A, and B versions only. B-Type provides 3-in-1 dimming (0-10V, PWM, resistor) with dim-to-off, but does not support DALI. For DALI control, consider the standard ELG-100/150/200/240 series DA-Type versions.
