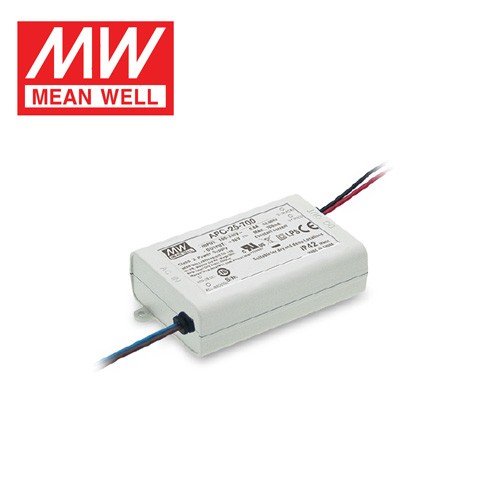

MEAN WELL Power Supply APC-25 Series Constant Current LED Driver

Product Item : APC-25 series
Category：LED Driver
Wattage: 25W
Input Voltage: 90 ~ 264VAC or 127 ~ 370VDC
Output Current: 350 ~ 1050mA
Output Voltage: 25 ~ 70V
Product description：APC-25 series is one 25W AC/DC constant current mode single output LED power supply.
INQUIRY EMAIL

APC-25 Series - 25W Constant Current LED Driver (350/500/700/1050mA, 300VAC Surge, OVP Restart, 70V Max)

✓ In Stock 2-Year 300VAC Surge 25.2W OVP Restart 70V Max

				Key Performance at a Glance

						25.2W

						Max Rated Power

						300VAC

						Surge Immunity 5s

						4

						Current Options

						70V

						350mA Compliance Top

						1050mA

						Highest APC Current

						3KV

						I/P-O/P

Product Overview

The APC-25 series is MEAN WELL's 25W constant-current LED driver on a new 84x57x29.5mm platform -- the most powerful APC CC driver with four current options including the series-first 1050mA. A major technology leap: 300VAC 5-second surge immunity (absent on all previous APC models), OVP with restart auto-recovery instead of diode clamping, 70V compliance ceiling, and 1500ms fast start-up.

The APC-25 accepts 90~264Vac with 0.4A/230V, 0.8A/115V and 45A inrush. Four fixed current options with +/-8% accuracy and 5.0% ripple: 350mA (25~70V/24.5W), 500mA (15~50V/25.2W), 700mA (11~36V/25.2W), and 1050mA (9~24V/25.2W). All models deliver 83% efficiency with 1500ms/30ms start-up and 20ms/230V hold-up. The 350mA variant's 25~70V compliance range is the highest-voltage CC capability in any APC series.

300VAC 5-second surge immunity is the flagship feature: this protects against grid voltage spikes in unstable power environments -- industrial areas, developing regions, and outdoor installations with frequent lightning-induced surges. The APC-25 withstands input surges that would destroy an APC-16 or APC-12. OVP restart recovery (not diode clamping) means the output auto-restarts after OVP is cleared -- no manual power-cycling needed.

⚠ Important Certification Notes: APC-25-350 is NOT UL8750 listed, NOT BIS certified, NOT Class 2/LPS, NOT CSA -- it is the most restricted APC model due to its 70V output exceeding safety thresholds. Only APC-25-500/700/1050 carry full UL8750/BIS/LPS certifications. CSA C22.2 only applies to 700mA and 1050mA models. Not for EU/CN LED lighting.

Certifications: UL8750 (500/700/1050mA only), CSA C22.2 (700/1050mA only), BIS IS15885 (500/700/1050mA only), EAC, BS EN/EN62368-1, IP42. Class 2/LPS (500/700/1050mA only). 3KVac I/P-O/P. EMC Class A emission, EN55035 immunity. 0.13kg, 72 pcs/carton (10.4kg). 2-year warranty. 9 B-type / 15 C-type on 16A breaker at 230V. 60KHz switching frequency. ⚠ Not for EU/CN LED lighting.

Product Images

Technical Specifications

4 current options, 300VAC surge. OVP restart recovery. 350mA reaches 70V -- highest in APC family. 1050mA is the highest CC current in any APC.

Parameter	APC-25-350	APC-25-500	APC-25-700	APC-25-1050
Rated Current	350mA	500mA	700mA	1050mA
DC Voltage Range	25~70V	15~50V	11~36V	9~24V
Rated Power	24.5W	25.2W	25.2W	25.2W
Current Accuracy	+/-8.0%	+/-8.0%	+/-8.0%	+/-8.0%
Current Ripple	5.0%	5.0%	5.0%	5.0%
Efficiency (Typ.)	83%	83%	83%	83%
OVP (Restart)	76~94V	55~68V	41~49V	27~35V
UL8750 / BIS / LPS	No / No / No	Yes / Yes / Yes	Yes / Yes / Yes	Yes / Yes / Yes

Input & Features (All Models)

Input / AC Current / Inrush	90~264Vac or 127~370Vdc \| 0.4A/230V, 0.8A/115V \| 45A/230V cold start (310us twidth)
Surge Immunity	300VAC for 5 seconds -- unique in APC family. Withstands grid spikes that destroy APC-12/16. Critical for unstable power environments.
Leakage / Hold-up / Start-up	0.25mA/240V \| 20ms/230V, 12ms/115V \| 1500ms/30ms@230V (2x faster than APC-12/16)
OVP / SC Protection	Restart auto-recovery (not diode clamp like APC-12/16) -- output restarts when OVP clears. SC: hiccup auto-recovery. OVP thresholds: 350mA=76~94V, 500mA=55~68V, 700mA=41~49V, 1050mA=27~35V
Fly Leads	Brown(L)/Blue(N) 18AWG in, Red(+V)/Black(-V) 18AWG out, 150+/-10mm
Operating / Storage Temp	-30~+70C (derating) \| -40~+80C, 10~95% RH \| +/-0.2%/C (0~50C)
Vibration / Breaker Capacity	10~500Hz, 2G 10min/cycle \| 9 B-type / 15 C-type on 16A breaker @ 230V
Safety / IP / Cert Notes	UL8750 (500/700/1050mA), CSA C22.2 (700/1050mA), BIS IS15885 (500/700/1050mA), EAC, EN62368-1 \| IP42 \| Class 2/LPS (500/700/1050mA)
Isolation / EMC	3KVac \| EN55032 Class A, EN61000-3-2 Class A \| Light industrial Surge 2KV, EN55035 \| 60KHz
MTBF / Size / Weight	4,955.9K hrs (Telcordia SR-332); 504.9K hrs (MIL-HDBK-217F, 25C) \| 84x57x29.5mm / 0.13kg / 72pcs / 10.4kg

Key Features

300VAC 5s Surge Immunity -- Grid-Proof CC Driver
APC family-first surge protection: withstands 300VAC input for 5 seconds. APC-12/16 have zero surge immunity. Critical for industrial zones, lightning-prone areas, and developing regions with unstable grids. Prevents driver destruction from voltage transients.

4 Currents 350~1050mA -- Widest APC Coverage
From 350mA for 20+ LED series strings (25~70V) to 1050mA for high-brightness COB arrays (9~24V). 500mA and 700mA fill the mid-range. One platform covers every 25W CC LED application from long architectural runs to spot accent lighting. 1050mA is the highest current in any APC model.

OVP Restart Recovery -- No Manual Reset
Unlike APC-12/16's diode clamping that permanently shuts down output, APC-25's OVP auto-restarts when the fault clears. Unattended LED installations recover automatically after temporary over-voltage events -- no service call needed.

350mA / 70V -- Longest LED Strings in APC
25~70V compliance with 76~94V OVP restart enables 20+ series LEDs at 350mA -- 46% longer than APC-16-350's 48V ceiling. Ideal for commercial linear LED fixtures, architectural cove lighting, and long facade runs.

1500ms Fast Start-up -- 2x Faster than APC-12/16
Start-up time halved from 3000ms to 1500ms with 30ms rise time -- instant-on LED lighting for motion-activated fixtures, emergency lighting, and retail displays where delay matters.

84x57mm Platform + 2G Vibration
New PCD16A chassis: 44% wider than APC-12/16 to support 25W and surge circuitry. Same -30~+70C range, 2G vibration, IP42 -- the most robust APC CC driver for industrial LED deployments.

Frequently Asked Questions

Why is APC-25-350 NOT UL8750/BIS certified?

The 350mA variant operates at 25~70V with OVP at 76~94V -- exceeding the 60V safety threshold for Class 2/LPS certification and UL8750 LED driver limits. When output exceeds 60V DC, additional safety requirements apply that the APC-25 plastic Class II chassis cannot meet. All other models (500/700/1050mA) are UL8750/BIS/LPS certified with compliance ranges staying within 50V/36V/24V respectively. For certified 350mA CC, use APC-16-350 (12~48V, fully certified) or choose a 500mA model with 15~50V range.

How is OVP restart different from diode clamping?

APC-12/16 use diode clamping OVP: the output permanently shuts down when OVP triggers, requiring manual power cycle. APC-25 uses restart recovery OVP: output auto-restarts when over-voltage clears. This is a major advantage for unattended installations (outdoor signage, street lighting, architectural lighting) where power-cycling each driver individually is impractical.

What makes 300VAC surge immunity critical?

In many regions, grid voltage can spike from 230V to 300V for seconds during switching events, lightning storms, or generator transitions. Standard LED drivers without surge immunity will be destroyed. APC-25's 300VAC/5s rating means it survives grid events that would destroy APC-12/16 instantly -- making it the only APC model suitable for industrial areas and outdoor installations with unpredictable power quality.

How do I choose the right current variant?

350mA for long LED strings (25~70V, 8-23 series LEDs) -- architectural and linear lighting. 500mA for mid-range (15~50V, 5-16 series LEDs) -- the most versatile balance. 700mA for standard 3W LEDs (11~36V, 3-12 series). 1050mA for COB and high-brightness (9~24V, 3-8 series, 3x brighter than 350mA) -- the highest APC current for spot/flood lighting. All deliver ~25W at 83% efficiency with 5.0% ripple and 300VAC surge protection.
