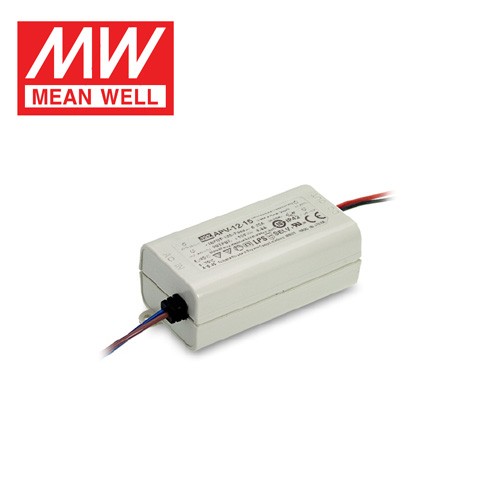

MEAN WELL Power Supply APV-12 Series Constant Voltage LED Driver

Product Item : APV-12 series
Category：LED Driver
Wattage: 12W
Input Voltage: 90 ~ 264VAC or 127 ~ 370VDC
Output Current: 0 ~ 2A
Output Voltage: 5 ~ 24V
Product description：Meanwell APV-12 series is a 12W AC/DC constant voltage mode single output LED power supply.
INQUIRY EMAIL

APV-12 Series - 12W Constant Voltage LED Driver (Class 2, LPS, IP42, 4 Voltages incl. 15V)

✓ In Stock2-YearClass 2/LPSSELVIP4215V Exclusive

				Key Performance at a Glance

						12W

						Rated Power

						84%

						Max Efficiency

						Class 2

						NEC Safety

						LPS

						Limited Power

						15V

						Exclusive Voltage

						7,488K

						MTBF (hrs)

Product Overview

The APV-12 series is the 1.5x power upgrade to APV-8, adding NEC Class 2, LPS (Limited Power Source), and SELV safety certifications -- plus an exclusive 15V model not available in APV-8. It is the only sub-$10 MEAN WELL LED driver with simultaneous Class 2 + LPS + IP42 + SELV, making it the safest budget LED driver for North American installations where Class 2 wiring rules reduce installation cost.

The APV-12 accepts 90~264Vac universal input (127~370Vdc) with 0.2A/230V, 0.35A/115V AC current and 70A/230V inrush. Four voltages: 5V (2A/10W), 12V (1A/12W), 15V (0.8A/12W), and 24V (0.5A/12W). The 5V model delivers 10W. Efficiency ranges from 76% (5V) to 84% (24V). Class 2 certification means output power is inherently limited below 100VA per NEC/UL1310 -- no conduit, no special wiring, significant panel cost savings in North America. LPS provides an additional safety layer for fire-rated installations.

Protection is identical to APV-8: hiccup-mode OLP (>105%) and SC with auto-recovery, and OVP with output shutdown and diode clamping. The 77x40x29mm compact plastic shell with 150mm fly leads (Brown/Blue input 20AWG, Red/Black output 18AWG) enables tool-free installation. Class II double insulation -- no FG required. IP42 rated. An installation reference: at 230Vac, a single 16A C-curve breaker can serve 29 APV-12 units.

Certifications: UL8750, CSA C22.2 No.250.0-08, BIS IS15885 (except 15V), EAC, BS EN/EN62368-1, IP42, LPS, SELV. EMC is EN55032 Class B with EN61000-3-2/-3 harmonics and light industrial immunity (Surge 2KV). I/P-O/P is 3.75KVac. MTBF is 7,488.9K hrs (Telcordia). At 80g and 120 units per carton. 2-year warranty. ⚠ Not for EU/China LED lighting.

Product Images

Technical Specifications

Class 2 + LPS + SELV triple safety. Excl. 15V voltage. 5V=10W. Not for EU/CN LED lighting. BIS excl 15V.

Parameter	APV-12-5	APV-12-12	APV-12-15	APV-12-24
DC Output Voltage	5V	12V	15V	24V
Rated Current	2A	1A	0.8A	0.5A
Rated Power	10W	12W	12W	12W
Ripple & Noise	100mVp-p	120mVp-p	120mVp-p	150mVp-p
Efficiency	76%	82%	82%	84%
OVP (Diode Clamped)	5.75~6.75V	13.8~16V	17.5~21V	27.6~32.4V
Class 2 / LPS / BIS	✓ / ✓ / Y	✓ / ✓ / Y	✓ / ✓ / N	✓ / ✓ / Y

Input & Features (All Models)

Input Voltage	90~264Vac or 127~370Vdc; 47~63Hz (DC: + to L / - to N)
AC Current / Inrush / No-Load	0.2A/230V, 0.35A/115V \| 70A/230V (twidth=185μs) \| <0.5W
Breaker Configuration	16A breaker @ 230V: 17 units (B-curve) / 29 units (C-curve)
Leakage / Hold-up / Start-up	0.25mA/240V \| 20ms/230V, 15ms/115V \| 1500ms/30ms @ 230V & 115V
Overload / SC / OVP	>105% hiccup auto-recovery \| SC hiccup auto-recovery \| OVP: shutdown + diode clamp
Fly Leads	Input: Brown (L) + Blue (N) 20AWG \| Output: Red (+V) + Black (-V) 18AWG, 150+/-10mm
Operating / Storage Temp	-30~+70C (derating curve) \| -40~+80C, 10~95% RH
Temp Coefficient / Vibration / Altitude	+/-0.03%/C (0~50C) \| 2G, 10~500Hz \| 2,000m
Safety / IP / SELV	UL8750, CSA C22.2, BIS IS15885 (exc 15V), EAC, BS EN/EN62368-1 \| IP42 \| SELV
Isolation	I/P-O/P: 3.75KVac \| >100Mohm/500Vdc/25C/70% RH
EMC	EN55032 Class B, EN61000-3-2,-3, EAC TP TC 020 \| EN55035, EN61000-4-2,3,4,5,6,8,11; light industrial (Surge 2KV)
MTBF / Dimensions / Weight	7,488.9K hrs (Telcordia); 1,132.5K hrs (MIL-HDBK-217F, 25C) \| 77x40x29mm / 0.08kg / 120pcs per carton / 11.8kg

Key Features

Class 2 + LPS + SELV -- Triple Safety, Lower Install Cost
NEC Class 2 output inherently limited below 100VA -- no conduit, no special wiring, no electrician certification required in many jurisdictions. LPS and SELV add fire safety and touch-safe voltage -- the safest budget LED driver for North American installations.

15V Exclusive + 4 Voltage Options
Only APV model with 15V output -- ideal for 15V LED strips, legacy 15V indicator lamps, and battery-adjacent applications. Covers 5V, 12V, 15V, and 24V from a single product family.

29 Units per 16A C-Curve Breaker
Low 0.2A/230V current draw means 29 APV-12 units on a single 16A C-curve breaker -- dramatically lower installation cost per LED driver in large signage and cove lighting projects.

Lower Ripple -- Cleaner LED Output
Halved ripple vs APV-8 (100mV vs 250mV at 5V, 150mV vs 300mV at 24V) -- visibly smoother LED dimming without flicker, especially important for PWM-dimmable LED strips.

IP42 + Class II + Fly Leads
77x40x29mm compact plastic shell with 150mm fly leads, IP42 splash protection, and no earth wire -- the simplest possible installation for indoor LED signage and decorative lighting.

100% Burn-in + 2-Year Warranty
Every unit undergoes full-load burn-in with Class 2 + LPS safety -- the safest 12W CV LED driver for global signage and decorative LED applications.

Frequently Asked Questions

What does Class 2 certification mean for my LED installation?

NEC Class 2 (per UL1310) means the output is inherently limited to under 100VA and under 60V, so the wiring is considered safe from both fire and electric shock hazards. This eliminates the need for conduit, special junction boxes, or licensed electrician installation in many North American jurisdictions. Combined with LPS and SELV, APV-12 is the most safety-certified budget LED driver in MEAN WELL's portfolio -- it significantly reduces installation labor and material costs.

How many APV-12 units can I put on one circuit?

At 230Vac input: 17 units on a 16A B-curve breaker or 29 units on a 16A C-curve breaker. This is due to the low 0.2A/230V current draw and controlled inrush. For 115Vac installations, AC current is 0.35A -- use this to calculate per your local electrical code. The datasheet provides breaker data for 230V only; consult an electrician for 115V breaker sizing.

Is BIS available for the 15V model?

No. BIS IS15885 is available for 5V, 12V, and 24V models only. The 15V model (APV-12-15) is excluded from BIS certification.

How does APV-12 compare to APV-8?

APV-12 (12W, 77x40x29mm, 80g): 1.5x power, adds Class 2/LPS/SELV triple safety, adds exclusive 15V model, lower ripple (100-150mV vs 250-300mV), C-curve breaker data. APV-8 (8W, 60x30x23.5mm, 50g): smaller, lighter, higher MTBF (9,638K vs 7,488K), lower cost. Choose APV-12 when you need Class 2/LPS for North America, 15V output, cleaner power, or 12W capacity. Choose APV-8 for the smallest, lightest, highest-reliability 8W LED driver.
