MEAN WELL Power Supply ELG-150-C Series Constant Current LED Driver

Product Item : ELG-150-C series
Category：LED Driver
Wattage: 150W
Input Voltage: 100 ~ 305VAC
Output Current: 500 ~ 2100mA
OPEN CIRCUIT VOLTAGE (max): 80 ~ 315V
Product description：ELG-150-C series is a 150W LED AC/DC driver featuring the constant current mode and high voltage output.
INQUIRY EMAIL

ELG-150-C Series - 150W Constant Current LED Driver with Active PFC, IP67/65, 5 Version Types, 3-in-1/DALI Dimming, Type HL

In Stock 5-Year Warranty Constant Current 150W Max IP67 / IP65 Active PFC Type HL

				Key Performance at a Glance

						150W

						Max Power

						92%

						Peak Efficiency

						6

						Current Options

						5

						Version Types

						IP67

						Outdoor Rated

						305V

						Max Input

Product Overview

The MEAN WELL ELG-150-C series is a 150W constant-current (CC) AC-to-DC LED driver family. Designed specifically for direct LED string driving, it offers fixed output current with a wide, automatically-adjusting output voltage range up to 315V.

It accepts universal 100~305VAC input (142~431VDC continuous, 320VDC for 24 hours, 360VDC for 1 hour) and provides six rated current options: 500mA, 700mA, 1050mA, 1400mA, 1750mA, and 2100mA. With peak efficiency up to 92%, the driver uses a fanless design and operates at case temperatures from -40C to +90C under natural convection.

The sealed metal enclosure carries IP67 or IP65 ratings depending on the version and is certified to UL8750 Type HL for Class I Division 2 hazardous location luminaires. Five function versions are available: Blank (fixed output, IP67), A (internal potentiometer adjustment, IP65), B (3-in-1 dimming, IP67), AB (pot adjustment + 3-in-1 dimming, IP65), and DA (DALI interface, IP67).

Protection includes OVP, OTP, short-circuit hiccup, and +/-5.0% current accuracy. The driver withstands 6KV line-to-ground and 4KV line-to-line surge, complies with global lighting safety and EMC standards, and is backed by a 5-year warranty.

Product Images

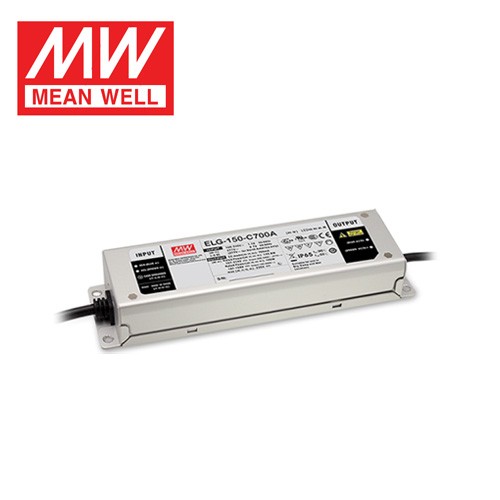

ELG-150-C series LED driver product image

ELG-150-C series LED driver wiring diagram

ELG-150-C series LED driver dimension diagram

Technical Specifications

Output ratings for the ELG-150-C series. All values measured at 230VAC, rated load, 25C unless noted.

Model	Rated Current	CC Range	Open Circuit Voltage	Power (200~305V)	Power (100~180V)	Efficiency	BIS
ELG-150-C500	500mA	150 ~ 300V	315V	150W	105W	92%	No
ELG-150-C700	700mA	107 ~ 214V	225V	149.8W	105W	92%	A/DA
ELG-150-C1050	1050mA	72 ~ 143V	151V	150.15W	105W	92%	A
ELG-150-C1400	1400mA	54 ~ 107V	115V	149.8W	105W	91%	No
ELG-150-C1750	1750mA	43 ~ 86V	94V	150.5W	105W	91%	No
ELG-150-C2100	2100mA	36 ~ 72V	80V	151.2W	105W	91%	No

Version Types

Type	IP	Current Adjustment	Dimming	Best For
Blank	IP67	Fixed	None	Simple fixed-output outdoor luminaires
A	IP65	Pot adjustable	None	Indoor luminaires with current tuning
B	IP67	Fixed	3-in-1 (0-10Vdc / 10V PWM / resistor)	Smart outdoor street/flood lights
AB	IP65	Pot + Dimming	3-in-1	Maximum flexibility indoor
DA	IP67	Fixed, 8% at startup	DALI (16 groups / 64 addresses)	Building management integration

Input & Protection (All Versions)

Input Voltage Range	100~305VAC / 142~431VDC; 320VDC continuous 24Hrs, 360VDC for 1Hr \| 47~63Hz
Active PFC / THD / AC Current	PF>=0.97 at 115V, PF>=0.95 at 230V, PF>=0.92 at 277V at full load \| THD<20% (@load>=50%/115V; @load>=60%/230V; @load>=75%/277V) \| 1.7A/115V, 0.9A/230VAC, 0.7A/277V
Inrush / Leakage / Hold-up	Cold start 65A (50% Ipeak, twidth=485us) / 230VAC per NEMA 410 \| 3 units (B-type breaker) or 6 units (C-type breaker) on 16A breaker at 230VAC \| <0.75mA/277VAC \| 1600ms/115VAC, 500ms/230VAC start-up
Standby / No-Load	<0.5W no-load (Blank/A), <0.5W standby (B/AB/DA)
Protection	OVP: shutdown/restart (model-specific trip range) \| OTP: shutdown/restart \| Short circuit: hiccup auto-recovery \| Current accuracy: +/-5.0%
Surge Immunity	Line-to-ground: 6KV \| Line-to-line: 4KV \| Light industrial per EN61547
Operating / Storage Temp	Tcase=-40~+90C (refer to derating curve) \| Storage -40~+80C \| Temp coefficient +/-0.03%/C (0~60C)
Vibration / Humidity	10~500Hz, 5G, 12min/cycle, X/Y/Z 72min each \| 20~95% RH non-condensing
DALI / Isolation	IEC62386-101/102/207 (DA type) \| 3.75KVac I/P-O/P, 2KVac I/P-FG, 1.5KVac O/P-FG
EMC Emission / Immunity	EN55015 Class C (>60% load), EN61000-3-2/3-3, GB/T17743, GB17625.1, EAC, KC KN15 \| Immunity: EN61000-4-2/3/4/5/6/8/11, EN61547
Lifetime / MTBF / Size	>50,000 hours at Tcase<75C \| 3102.4K hrs (Telcordia SR-332) \| 219 x 63 x 35.5mm \| 0.95kg \| 16pcs/carton / 16.0kg

Safety Standards & Certifications

Safety Standards	UL8750 (Type HL), CSA C22.2 No. 250.13-12, IEC/BS EN/EN/AS/NZS 61347-1/2-13 independent, BS EN/EN62384, EAC TP TC 004, BIS IS15885 (700A/1050A/700DA only), GB/T19510.1/19510.213, KC61347-1/2-13 \| IP65 or IP67
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2.0KVAC \| O/P-FG: 1.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25C / 70% RH
EMC Emissions	BS EN/EN55015, BS EN/EN61000-3-2 Class C (>60% load), BS EN/EN61000-3-3, GB/T17743, GB17625.1, EAC TP TC 020, KC KN15
EMC Immunity	BS EN/EN61000-4-2/3/4/5/6/8/11, BS EN/EN61547, EAC TP TC 020, KC KN15

Key Features

Constant Current Output -- Direct LED String Drive
ELG-150-C maintains a fixed output current while the voltage automatically adapts within the CC range to match the LED string forward voltage. This eliminates the need for external current limiting and simplifies luminaire design.

6 Current Options -- 500mA to 2100mA
Choose from six rated currents to match different LED chip configurations, from very long high-voltage strings (C500) to very high-current COB modules (C2100).

5 Version Types -- Blank to DALI
Select fixed output (Blank), potentiometer tuning (A), 3-in-1 dimming (B), tuning plus dimming (AB), or DALI digital control (DA) to match your luminaire control strategy.

IP67 / IP65 Metal Housing + Type HL
Sealed aluminum housing with UL8750 Type HL certification for hazardous location luminaires. 5G vibration, -40~+90C Tcase, and 6KV/4KV surge immunity for harsh environments.

Active PFC + Global Certifications
PF>=0.97 at 115V and THD<20% keep installations compliant with lighting harmonics regulations. UL/CSA/TUV/EAC/KC/GB/BIS certifications enable one SKU for worldwide deployment.

5-Year Warranty + 100~305VAC Input
Backed by a 5-year warranty. Universal 100~305VAC input covers 100V Japan, 120V North America, 230V Europe, and 277V US industrial circuits, with 360VAC withstand for 1 hour.

Frequently Asked Questions

What is the difference between ELG-150 and ELG-150-C?

ELG-150 is a CC+CV dual-mode driver with fixed output voltage options (12V/24V/36V/42V/48V/54V). ELG-150-C is a constant-current-only driver designed to drive LED strings directly, with the output voltage automatically adjusting within the specified CC range to match the LED load.

Why does the power drop at 100~180VAC?

ELG-150-C delivers full rated power at 200~305VAC but derates to 105W at 100~180VAC. The lower input voltage limits the PFC boost stage, so full power is only available on 208V, 230V, or 277V grids. For 120V North American or 100V Japanese installations, size your LED load for 105W.

Which version type should I choose?

Blank for simple fixed-output outdoor luminaires. A-Type for indoor fixtures needing current tuning via internal pot. B-Type for outdoor smart lighting with 0-10V/PWM/resistor dimming. AB-Type for maximum flexibility with both tuning and dimming. DA-Type for DALI building management integration. Note: A and AB are IP65 and require internal use for Type HL.

Which ELG-150-C models are BIS-certified for India?

BIS IS15885 is available on ELG-150-C700 (A and DA versions) and ELG-150-C1050 (A version) only. Confirm the exact model suffix carries BIS before ordering for India-bound luminaires.
