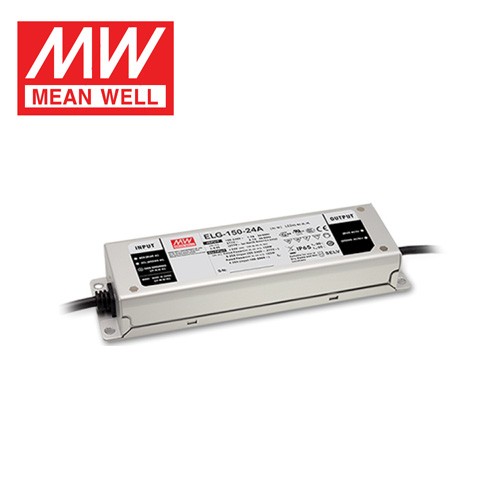

MEAN WELL Power Supply ELG-150 Series Constant Current/Voltage LED Driver

Product Item : ELG-150 series
Category：LED Driver
Wattage: 150W
Input Voltage: 100 ~ 305VAC
Output Current: 2.8 ~ 10A
Output Voltage: 12 ~ 54V
Product description：ELG-150 series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-100 operates from 100~305VAC and offers models with different rated voltage ranging
INQUIRY EMAIL

ELG-150 Series - 150W CC+CV LED Driver with Active PFC, IP67/65, 5 Version Types, 3-in-1/DALI Dimming, Type HL

In Stock 5-Year Warranty CC + CV 150W Max IP67 / IP65 Active PFC Type HL

				Key Performance at a Glance

						150W

						Max Power

						91%

						Peak Efficiency

						6

						Voltage Options

						5

						Version Types

						IP67

						Outdoor Rated

						305V

						Max Input

Product Overview

The MEAN WELL ELG-150 series is a 150W AC-to-DC LED driver family designed for both constant-current (CC) and constant-voltage (CV) operation. It accepts universal 100~305VAC input (142~431VDC) and offers output voltages from 12V to 54V, making it a flexible platform for outdoor and indoor LED lighting systems.

With peak efficiency up to 91%, the ELG-150 uses a fanless design and operates at a case temperature of -40C to +90C under natural convection. The sealed metal enclosure carries IP67 or IP65 ratings depending on the version, and is certified to UL8750 Type HL for use in Class I Division 2 hazardous location luminaires.

Five function versions are available: Blank (fixed output, IP67), A (internal potentiometer adjustment, IP65), B (3-in-1 dimming, IP67), AB (pot adjustment + 3-in-1 dimming, IP65), and DA (DALI interface, IP67). This lets lighting designers match the exact control, protection, and wiring strategy of each luminaire without changing the driver platform.

Standard protection includes OVP, OTP, short-circuit hiccup, and over-current CC limiting. The driver withstands 6KV line-to-ground and 4KV line-to-line surge, complies with global lighting safety and EMC standards, and is backed by a 5-year warranty.

Product Images

ELG-150 series LED driver wiring diagram

ELG-150 series LED driver dimension diagram

Technical Specifications

Output ratings for the ELG-150 series. All values measured at 230VAC, rated load, 25C unless noted.

Model	DC Voltage	Rated Current	Power (200~305V)	Power (100~180V)	CC Range	Efficiency	BIS
ELG-150-12	12V	10A	120W	84W	6 ~ 12V	88.5%	A/B/DA
ELG-150-24	24V	6.25A	150W	105W	12 ~ 24V	89%	A/B/DA
ELG-150-36	36V	4.17A	150.1W	105W	18 ~ 36V	90%	A/B
ELG-150-42	42V	3.57A	150W	105W	21 ~ 42V	90%	A/B
ELG-150-48	48V	3.13A	150.2W	105W	24 ~ 48V	90%	A/B
ELG-150-54	54V	2.8A	151.2W	105W	27 ~ 54V	91%	A/B

Version Types

Type	IP	Io/Vo Adjustment	Dimming	Best For
Blank	IP67	Fixed	None	Simple fixed-output outdoor luminaires
A	IP65	Pot adjustable	None	Indoor luminaires with current/voltage tuning
B	IP67	Fixed	3-in-1 (0-10Vdc / 10V PWM / resistor)	Smart outdoor street/flood lights
AB	IP65	Pot + Dimming	3-in-1	Maximum flexibility indoor
DA	IP67	Fixed, 8% at startup	DALI (16 groups / 64 addresses)	Building management integration

Input & Protection (All Versions)

Input Voltage Range	100~305VAC / 142~431VDC \| 47~63Hz
Active PFC / THD / AC Current	PF>=0.97 at 115V, PF>=0.95 at 230V, PF>=0.92 at 277V \| THD<20% (>50% load at 115V, >60% at 230V, >75% at 277V) \| 1.7A/115V, 0.9A/230V, 0.7A/277V
Inrush / Leakage / Hold-up	65A/230V cold start (550us at 50% Ipeak, NEMA 410); 3 units (B-type breaker) or 6 units (C-type breaker) per 16A breaker \| <0.75mA/277V \| 10ms/115V, 10ms/230V at full load
Standby / No-Load	<0.5W no-load (Blank/A), <0.5W standby (B/AB/DA) \| 1600ms/115VAC, 500ms/230VAC startup; 80ms/115VAC, 100ms/230VAC rise
Protection	OVP: shutdown/restart (model-specific trip range) \| OTP: shutdown/restart \| Short circuit: hiccup auto-recovery \| Over-current: 95~108% CC limit
Surge Immunity	Line-to-ground: 6KV \| Line-to-line: 4KV \| Light industrial per EN61547
Operating / Storage Temp	Tcase=-40~+90C (refer to derating curve) \| Storage -40~+80C \| Temp coefficient +/-0.03%/C (0~60C)
Vibration / Humidity	10~500Hz, 5G, 12min/cycle, X/Y/Z 72min each \| 20~95% RH non-condensing
DALI / Isolation	IEC62386-101/102/207 (DA type) \| 3.75KVac I/P-O/P, 2KVac I/P-FG, 1.5KVac O/P-FG
EMC Emission / Immunity	EN55015 Class C (>60% load), EN61000-3-2/3-3, GB/T17743, GB17625.1, EAC, KC KN15 \| Immunity: EN61000-4-2/3/4/5/6/8/11, EN61547
Lifetime / MTBF / Size	>50,000 hours at Tcase<80C \| 2661.6K hrs (Telcordia SR-332) \| 219 x 63 x 35.5mm \| 0.95kg \| 16pcs/carton / 16.0kg

Safety Standards & Certifications

Safety Standards	UL8750 (Type HL, except BE-Type), CSA C22.2 No. 250.13-12, IEC/BS EN/EN/AS/NZS 61347-1/2-13 independent, BS EN/EN62384, EAC TP TC 004, BIS IS15885 (selected models), GB/T19510.1/19510.213, KC61347-1/2-13 \| IP65 or IP67
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2.0KVAC \| O/P-FG: 1.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25C / 70% RH
EMC Emissions	BS EN/EN55015, BS EN/EN61000-3-2 Class C (>60% load), BS EN/EN61000-3-3, GB/T17743, GB17625.1, EAC TP TC 020, KC KN15
EMC Immunity	BS EN/EN61000-4-2/3/4/5/6/8/11, BS EN/EN61547, EAC TP TC 020, KC KN15

Key Features

150W CC+CV Dual Mode -- One Platform, Two Drive Styles
Run in CC mode to drive LED strings directly with automatic voltage adaptation, or CV mode to power LED strips, modules, or downstream DC-DC drivers. Covers a wide range of luminaire designs with a single driver family.

5 Version Types -- Blank to DALI
Choose fixed output (Blank), potentiometer tuning (A), 3-in-1 dimming (B), tuning plus dimming (AB), or DALI digital control (DA). Match the exact control strategy without changing the driver platform.

IP67 / IP65 Metal Housing + Type HL
Sealed aluminum housing with UL8750 Type HL certification for hazardous location luminaires. 5G vibration, -40~+90C Tcase, and 6KV/4KV surge immunity for harsh indoor and outdoor environments.

Active PFC + Global Certifications
PF>=0.97 at 115V and THD<20% keep installations compliant with lighting harmonics regulations. UL/CSA/TUV/EAC/KC/GB/BIS certifications allow one SKU for worldwide deployment.

100~305VAC Universal Input
Covers 100V Japan, 120V North America, 230V Europe, and 277V US industrial circuits. High surge immunity and wide temperature range for demanding outdoor applications.

5-Year Warranty + Fanless Design
No fan means no noise and no moving parts. Backed by a 5-year warranty and >50,000-hour life at Tcase<80C.

Frequently Asked Questions

What is the difference between CC mode and CV mode on ELG-150?

In CC mode the driver maintains a constant current output while the voltage automatically adjusts within the model-specific CC range to match the LED string forward voltage. In CV mode the driver maintains a stable output voltage with a current limit, suitable for LED strips, modules, or loads that expect a fixed voltage bus.

Why does the power drop at 100~180VAC?

ELG-150 delivers full rated power at 200~305VAC but derates at 100~180VAC (for example, 150W models drop to 105W and the 12V model drops to 84W). The lower input voltage limits the PFC boost stage, so full power is only available on 208V, 230V, or 277V grids.

Which version type should I choose?

Blank for simple fixed-output outdoor luminaires. A-Type for indoor fixtures needing current/voltage tuning via internal pot. B-Type for outdoor smart lighting with 0-10V/PWM/resistor dimming. AB-Type for maximum flexibility with both tuning and dimming. DA-Type for DALI building management integration. Note: A and AB are IP65 and require internal use for Type HL.

Is ELG-150 BIS-certified for India?

BIS IS15885 is available on selected ELG-150 models. Per the datasheet, covered types include 12/12A/12B/12DA, 24/24A/24B/24DA, 36A/36B, 42/42A/42B, 48A/48B, and 54/54A/54B. Confirm the exact voltage and version suffix carries BIS before ordering for India-bound luminaires.
