244 x 71 x 37.5mm Metal Housing | 100~305VAC Universal Input | 24V/36V/42V/48V/54V | CC+CV Dual Mode | Active PFC | IP67/IP65 | Type HL | >50,000hrs | 5-Year Warranty

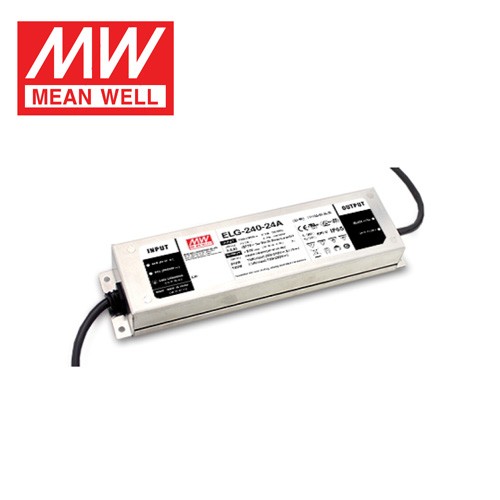

The MEAN WELL ELG-240 series is a 240W AC-to-DC LED driver family designed for both constant-current (CC) and constant-voltage (CV) operation. It accepts universal 100~305VAC input (142~431VDC) and offers output voltages from 24V to 54V, making it a flexible platform for high-power outdoor and indoor LED lighting systems.
With peak efficiency up to 93%, the ELG-240 uses a fanless design and operates at a case temperature of -40C to +90C under natural convection. The sealed metal enclosure carries IP67 or IP65 ratings depending on the version, and is certified to UL8750 Type HL for use in Class I Division 2 hazardous location luminaires.
Five function versions are available: Blank (fixed output, IP67), A (internal potentiometer adjustment, IP65), B (3-in-1 dimming, IP67), AB (pot adjustment + 3-in-1 dimming, IP65), and DA (DALI interface, IP67). This lets lighting designers match the exact control, protection, and wiring strategy of each luminaire without changing the driver platform.
Standard protection includes OVP, OTP, short-circuit hiccup, and over-current CC limiting. The driver withstands 6KV line-to-ground and 4KV line-to-line surge, complies with global lighting safety and EMC standards, and is backed by a 5-year warranty.
Output ratings for the ELG-240 series. All values measured at 230VAC, rated load, 25C unless noted.
| Model | DC Voltage | Rated Current | Power (200~305V) | Power (100~180V) | CC Range | Efficiency | BIS |
|---|---|---|---|---|---|---|---|
| ELG-240-24 | 24V | 10A | 240W | 180W | 12 ~ 24V | 92% | A/B/DA |
| ELG-240-36 | 36V | 6.66A | 239.76W | 180W | 18 ~ 36V | 92% | A/B |
| ELG-240-42 | 42V | 5.71A | 239.82W | 179.76W | 21 ~ 42V | 92.5% | A/B |
| ELG-240-48 | 48V | 5.0A | 240W | 180W | 24 ~ 48V | 93% | A/B |
| ELG-240-54 | 54V | 4.45A | 240.3W | 180.36W | 27 ~ 54V | 93% | A/B |
| Type | IP | Io/Vo Adjustment | Dimming | Best For |
|---|---|---|---|---|
| Blank | IP67 | Fixed | None | Simple fixed-output outdoor luminaires |
| A | IP65 | Pot adjustable | None | Indoor luminaires with current/voltage tuning |
| B | IP67 | Fixed | 3-in-1 (0-10Vdc / 10V PWM / resistor) | Smart outdoor street/flood lights |
| AB | IP65 | Pot + Dimming | 3-in-1 | Maximum flexibility indoor |
| DA | IP67 | Fixed, 8% at startup | DALI (16 groups / 64 addresses) | Building management integration |
| Input Voltage Range | 100~305VAC / 142~431VDC | 47~63Hz |
| Active PFC / THD / AC Current | PF>=0.97 at 115V, PF>=0.95 at 230V, PF>=0.92 at 277V | THD<20% (>50% load at 115V/230V, >75% at 277V) | 2.2A/115V, 1.5A/230V, 1.2A/277V |
| Inrush / Leakage / Hold-up | 60A/230V cold start (510us at 50% Ipeak, NEMA 410); 4 units (B-type breaker) or 6 units (C-type breaker) per 16A breaker | <0.75mA/277V | 10ms/115VAC, 10ms/230VAC at full load |
| Standby / No-Load | <0.5W no-load (Blank/A), <0.5W standby (B/AB/DA) | 1000ms/115VAC, 500ms/230VAC startup; 100ms rise time |
| Protection | OVP: shutdown/restart (model-specific trip range) | OTP: shutdown/restart | Short circuit: hiccup auto-recovery | Over-current: 95~108% CC limit |
| Surge Immunity | Line-to-ground: 6KV | Line-to-line: 4KV | Light industrial per EN61547 |
| Operating / Storage Temp | Tcase=-40~+90C (refer to derating curve) | Storage -40~+90C, 10~95% RH | Temp coefficient +/-0.03%/C (0~60C) |
| Vibration / Humidity | 10~500Hz, 5G, 12min/cycle, X/Y/Z 72min each | 20~95% RH non-condensing |
| DALI / Isolation | IEC62386-101/102/207 (DA type) | 3.75KVac I/P-O/P, 2KVac I/P-FG, 1.5KVac O/P-FG |
| EMC Emission / Immunity | EN55015 Class C (>50% load), EN61000-3-2/3-3, GB/T17743, GB17625.1, EAC, KC KN15 | Immunity: EN61000-4-2/3/4/5/6/8/11, EN61547 |
| Lifetime / MTBF / Size | >50,000 hours at Tcase<70C | 2391.4K hrs min. (Telcordia SR-332) | 244 x 71 x 37.5mm | 1.22kg | 12pcs/carton / 15.2kg |
| Safety Standards | UL8750 (Type HL), CSA C22.2 No. 250.13-12, IEC/BS EN/EN/AS/NZS 61347-1/2-13 independent, BS EN/EN62384, EAC TP TC 004, BIS IS15885 (selected models), GB/T19510.1/19510.213, KC61347-1/2-13 | IP65 or IP67 |
| Withstand Voltage | I/P-O/P: 3.75KVAC | I/P-FG: 2.0KVAC | O/P-FG: 1.5KVAC |
| Insulation Resistance | I/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25C / 70% RH |
| EMC Emissions | BS EN/EN55015, BS EN/EN61000-3-2 Class C (>50% load), BS EN/EN61000-3-3, GB/T17743, GB17625.1, EAC TP TC 020, KC KN15 |
| EMC Immunity | BS EN/EN61000-4-2/3/4/5/6/8/11, BS EN/EN61547, EAC TP TC 020, KC KN15 |
In CC mode the driver maintains a constant current output while the voltage automatically adjusts within the model-specific CC range to match the LED string forward voltage. In CV mode the driver maintains a stable output voltage with a current limit, suitable for LED strips, modules, or loads that expect a fixed voltage bus.
ELG-240 delivers full rated power at 200~305VAC but derates to approximately 180W at 100~180VAC. The lower input voltage limits the PFC boost stage, so full power is only available on 208V, 230V, or 277V grids. For 120V North American or 100V Japanese installations, size your load for the derated power.
Blank for simple fixed-output outdoor luminaires. A-Type for indoor fixtures needing current/voltage tuning via internal pot. B-Type for outdoor smart lighting with 0-10V/PWM/resistor dimming. AB-Type for maximum flexibility with both tuning and dimming. DA-Type for DALI building management integration. Note: A and AB are IP65 and require internal use for Type HL.
BIS IS15885 is available on selected ELG-240 models: 24/24A/24B/24DA, 36/36A/36B, 42/42A/42B, 48/48A/48B, and 54/54A/54B/54DA. Confirm the exact voltage and version suffix carries BIS before ordering for India-bound luminaires.
