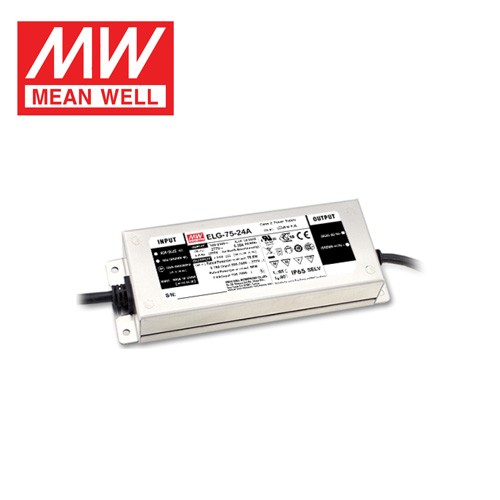

MEAN WELL Power Supply ELG-75 Series Constant Current/Voltage LED Driver

Product Item : ELG-75 series
Category：LED Driver
Wattage: 75W
Input Voltage: 100 ~ 305VAC
Output Current: 1.6 ~ 5A
Output Voltage: 12 ~ 48V
Product description：ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100~305VAC and offers models with different rated voltage ranging bet
INQUIRY EMAIL

ELG-75 Series - 75W CC+CV LED Driver (PFC, IP67, 5-Year, 3-in-1 Dimming, DALI, Type HL)

In Stock 5-Year Warranty Active PFC IP67 Waterproof Type HL Certified CC + CV Dual Mode

				Key Performance at a Glance

						75.6W

						Max Output Power

						90%

						Peak Efficiency

						305VAC

						Max Input Voltage

						5

						Voltage Options

						IP67

						Waterproof Rating

						5G

						Vibration Resistance

Product Overview

The ELG-75 series is MEAN WELL's professional-grade 75W CC+CV LED driver with Active PFC, metal IP67 housing, and 5-year warranty. Unlike the budget APC/APV plastic-shell drivers, the ELG-75 is built for outdoor and industrial LED lighting: street lights, flood lights, high-bay fixtures, and architectural illumination. With dual constant-current and constant-voltage output modes, multiple dimming options, and UL8750 Type HL certification, it is the most rugged 75W LED driver in MEAN WELL's lineup.

The ELG-75 accepts 100~305VAC universal input with Active PFC (PF>0.97/115V, PF>0.95/230V, PF>0.92/277V), THD<20%, and 0.7A/115VAC typical current. It offers a dual power rating: 48~60W at 100~180VAC and 60~76.8W at 200~305VAC. Five output voltages are available with CC+CV dual-mode output: 12V/5A, 24V/3.15A, 36V/2.1A, 42V/1.8A, and 48V/1.6A. In CC mode the driver delivers constant current with voltage automatically adapting within the CC range. In CV mode it provides a stable voltage with current limiting.

Five version types cover different control requirements: Blank (fixed output, IP67), A (internal potentiometer for Io/Vo adjustment, IP65), B (3-in-1 dimming: 0-10V/PWM/resistor, IP67), AB (Io/Vo pot + 3-in-1 dimming, IP65), and DA (DALI interface, IP67). This makes ELG-75 the most flexible 75W LED driver for luminaire designers needing precise current tuning or smart lighting control. All models feature >50,000-hour lifetime at Tcase<70C.

Industrial-grade protection includes OVP restart, OTP restart, short-circuit hiccup, and over-current constant current limiting. Surge immunity is rated at 6KV line-to-ground and 4KV line-to-line. The metal shell achieves 5G vibration resistance and -40~+85C Tcase operation. Certifications cover UL8750 Type HL, CSA C22.2, IEC/BS EN/AS/NZS 61347-1/2-13, EN62384, EAC, KC, GB/T, and BIS IS15885 on select A/B/DA models. Isolation is 3.75KVac I/P-O/P, 2KVac I/P-FG, and 1.5KVac O/P-FG.

Product Images

Technical Specifications

Dual power rating (100~180V vs 200~305V). CC+CV output. Five version types (Blank/A/B/AB/DA). Surge immunity 6KV/4KV.

Parameter	ELG-75-12	ELG-75-24	ELG-75-36	ELG-75-42	ELG-75-48
DC Output Voltage	12V	24V	36V	42V	48V
CC Range	6~12V	12~24V	18~36V	21~42V	24~48V
Rated Current	5A	3.15A	2.1A	1.8A	1.6A
Power (200~305VAC)	60W	75.6W	75.6W	75.6W	76.8W
Power (100~180VAC)	48W	60W	60W	60W	60W
Ripple & Noise (max)	150mVp-p	200mVp-p	250mVp-p	250mVp-p	250mVp-p
Voltage Adj Range (A/AB)	10.8~13.2V	21.6~26.4V	32.4~39.6V	37.8~46.2V	43.2~52.8V
Current Adj Range (A/AB)	2.5~5A	1.57~3.15A	1.05~2.1A	0.9~1.8A	0.8~1.6A
Voltage Accuracy	+/-3.0%	+/-3.0%	+/-2.5%	+/-2.5%	+/-2.0%
Line Regulation	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Load Regulation	+/-2.0%	+/-1.0%	+/-1.0%	+/-0.5%	+/-0.5%
Efficiency (Typ.)	86%	88%	89%	90%	90%
OVP Trip Range	14~18V	28~34V	41~48V	47~54V	54~62V

Version Types (5 Options Per Voltage)

Blank	IP67 \| Fixed Io/Vo \| No dimming \| Standard model for simple fixed-output LED luminaires
A-Type	IP65 \| Internal potentiometer adjustable Io 50-100% and Vo +/-10% \| No dimming. Type HL requires internal use only.
B-Type	IP67 \| Fixed Io/Vo \| 3-in-1 dimming: 0-10VDC / 10V PWM (100Hz-3KHz) / external resistor. 8% minimum dimming.
AB-Type	IP65 \| Io/Vo pot + 3-in-1 dimming \| Maximum flexibility for luminaire tuning. Type HL requires internal use.
DA-Type	IP67 \| DALI interface (IEC62386-101/102/207) \| 16 groups / 64 addresses \| Fixed 8% output at startup.

Input & Protection (All Models)

Input Voltage Range	100~305VAC / 142~431VDC \| 47~63Hz \| Dual power rating: 48~60W at 100~180VAC, 60~76.8W at 200~305VAC
Active PFC / THD / AC Current	PF>0.97 at 115V, PF>0.95 at 230V, PF>0.92 at 277V \| THD<20% (>50% load) \| 0.7A/115V, 0.45A/230V, 0.38A/277V
Inrush / Leakage / Hold-up	50A/230V cold start (350us, NEMA 410) \| <0.75mA/277V \| 10ms/230V, 10ms/115V at full load
Standby / No-Load	<0.5W no-load (Blank/A), <0.5W standby (B/AB/DA) \| 500ms/100ms start-up
Protection	OVP: restart \| OTP: restart \| Short circuit: hiccup auto-recovery \| Over-current: 95~108% CC limit, auto-recovery
Surge Immunity	Line-to-ground: 6KV \| Line-to-line: 4KV \| Light industrial per EN61547
Breaker Capacity	5 B-type / 8 C-type on 16A breaker at 230VAC
Operating / Storage Temp	Tcase=-40~+85C (refer to derating curve) \| Tcase max=85C \| Storage -40~+80C \| Temp coefficient +/-0.03%/C (0~60C)
Vibration / Humidity	5G, 10~500Hz, 12min/cycle, X/Y/Z 72min each \| 20~95% RH non-condensing
DALI / Isolation	IEC62386-101/102/207 (DA type) \| 3.75KVac I/P-O/P, 2KVac I/P-FG, 1.5KVac O/P-FG
EMC Emission / Immunity	EN55015 Class C (>50% load), EN61000-3-2/3-3, GB/T17743, GB17625.1, EAC, KC KN15 \| Immunity: EN61000-4-2/3/4/5/6/8/11, EN61547
Lifetime / MTBF / Size	>50,000 hours at Tcase<70C \| 3,451.7K hrs (Telcordia SR-332) \| 180 x 63 x 35.5mm \| 0.8kg \| 16pcs/carton / 13.4kg

Safety Standards & Certifications

Safety Standards	UL8750 (Type HL), CSA C22.2 No. 250.13-12, IEC/BS EN/AS/NZS 61347-1/2-13 independent, BS EN/EN62384, EAC TP TC 004, BIS IS15885 (select A/B/DA models), GB/T19510.1/19510.213, KC61347-1/2-13 \| IP65 or IP67
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2.0KVAC \| O/P-FG: 1.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25C / 70% RH
EMC Emissions	BS EN/EN55015, BS EN/EN61000-3-2 Class C (>50% load), BS EN/EN61000-3-3, GB/T17743, GB17625.1, EAC TP TC 020, KC KN15
EMC Immunity	BS EN/EN61000-4-2/3/4/5/6/8/11, BS EN/EN61547, EAC TP TC 020, KC KN15

Key Features

CC+CV Dual-Mode Output - One Driver, Any LED
Unlike APC's CC-only topology, ELG-75 operates in both constant current and constant voltage modes. In CC mode it delivers fixed current with voltage adapting to LED string Vf. In CV mode it provides stable voltage for LED strips or downstream DC-DC drivers. One driver platform replaces separate CC and CV supplies.

Active PFC PF>0.97 + THD<20% - Grid Compliant
Full-range Active PFC with near-unity power factor at 115V and THD under 20% - compliant with EN61000-3-2 Class C lighting harmonics standards. Essential for EU and global lighting regulations that basic drivers cannot meet.

UL8750 Type HL - Hazardous Location Certified
UL8750 Type HL certification for Class I Division 2 hazardous locations - petrochemical plants, grain elevators, paint booths, chemical storage. The most rugged 75W LED driver for dangerous environments. A/AB types require internal use for HL.

5 Version Types - Blank to DALI, One Platform
Choose fixed output (Blank), potentiometer adjustable (A), 3-in-1 dimming (B: 0-10V/PWM/resistor), both (AB), or DALI digital control (DA: 16 groups, 64 addresses). The most flexible 75W LED driver ecosystem for luminaire designers.

IP67 Metal, -40~+85C, 5G Vibration - Industrial Outdoor
Sealed IP67 aluminum housing, -40C cold start, 85C Tcase, 5G vibration, 6KV/4KV surge - built for outdoor street lighting, flood lighting, and industrial high-bay fixtures. >50,000 hour lifetime at Tcase<70C.

5-Year Warranty + 100~305VAC Universal Input
5-year warranty backed by MEAN WELL quality. Works on any grid worldwide: 100V Japan, 120V US, 230V EU, 277V US industrial - a single SKU for global LED luminaire products. 305VAC max with HV surge protection.

Frequently Asked Questions

How is ELG-75 different from APC series?

ELG-75 is a professional-grade outdoor LED driver; APC is a budget indoor LED driver. Key differences: ELG has Active PFC (PF>0.97 vs none), CC+CV dual-mode (vs CC-only), IP67 metal housing (vs IP42 plastic), UL8750 Type HL hazardous location (vs none), 5G vibration (vs 2G), 6KV surge (vs 2KV), 3-in-1/DALI dimming (vs none), 100~305VAC including 277V (vs 90~264V), -40~+85C Tcase (vs -30~+70C ambient), 5-year warranty (vs 2-year), and >50,000hr lifetime. ELG-75 is for street lights, flood lights, and industrial high-bay; APC is for indoor signage and decorative LED strips.

What does the dual power rating mean?

ELG-75 delivers 60~76.8W at 200~305VAC but derates to 48~60W at 100~180VAC. This is because at lower input voltages the PFC boost stage cannot sustain full output power. For installations on 120V US or 100V Japan grids, expect ~48~60W maximum. For 208/230/277V installations, the full 60~76.8W is available. The 12V model is most affected: 48W at 100~180V vs 60W at 200~305V.

Which version type should I choose?

Blank (IP67) for fixed-output outdoor luminaires where no adjustment is needed. A-Type (IP65) for indoor luminaires needing current/voltage tuning via internal pot. B-Type (IP67) for outdoor smart lighting with 0-10V/PWM/resistor control. AB-Type (IP65) for maximum flexibility - internal tuning plus external dimming. DA-Type (IP67) for DALI building management integration. Note: A and AB types are IP65 (not IP67) and require internal use for Type HL certification.

Which models carry BIS certification for India?

BIS IS15885 is available on select A, B, and DA type models only: 12A/12B/12DA, 24A/24B/24DA, 36A/36B, 42A/42B, 48A/48B. Blank and AB types are NOT BIS certified. This is a critical consideration for India-bound LED luminaires - verify your specific voltage and version combination carries BIS before ordering.

Related Products

Five voltage models with five version types each (Blank/A/B/AB/DA). CC+CV output. IP67 metal housing. Type HL. 5-year warranty.

Available Models

ELG-75-12 - 12V / 5A / 60W | Blank/A/B/AB/DA | BIS: A/B/DA | 48W at 100~180V
ELG-75-24 - 24V / 3.15A / 75.6W | Blank/A/B/AB/DA | BIS: A/B/DA | 60W at 100~180V
ELG-75-36 - 36V / 2.1A / 75.6W | Blank/A/B/AB/DA | BIS: A/B | 60W at 100~180V
ELG-75-42 - 42V / 1.8A / 75.6W | Blank/A/B/AB/DA | BIS: A/B | 60W at 100~180V
ELG-75-48 - 48V / 1.6A / 76.8W | Blank/A/B/AB/DA | BIS: A/B | 60W at 100~180V
