MEAN WELL Power Supply HLG-120H-C Series Constant Current LED Driver

Product Item : HLG-120H-C series
Category：LED Driver
Wattage: 150W
Input Voltage: 90 ~ 305VAC or 127 ~ 431VDC
Rated Current: 350 ~ 1400mA
Constant Current Region Note.2: 54 ~ 430V
Product description：HLG-120H-C series is a 150W AC/DC LED driver featuring the constant current mode and high voltage output.
INQUIRY EMAIL

HLG-120H-C Series - 150W Constant Current LED Driver with Active PFC, IP67/IP65, 1-10V Dimming

In Stock 7-Year Warranty Constant Current 150W Max IP67 / IP65 Active PFC 1-10V Dimming

				Key Performance at a Glance

						150W

						Max Power

						94%

						Peak Efficiency

						5

						Current Options

						4

						Version Types

						IP67

						Outdoor Rated

						+90C

						Max Tcase

Product Overview

The MEAN WELL HLG-120H-C series is a 150W AC-to-DC constant-current (CC) LED driver family. It is designed for LED street lighting, fishing lamps, harbor lighting, building architectural lighting, greenhouse lighting, and bay lighting.

It accepts universal 90~305VAC input (127~431VDC) and provides five fixed output current options: 350mA, 500mA, 700mA, 1050mA and 1400mA. With peak efficiency up to 94% (93.5% on C1400), the driver uses a fanless design and operates at case temperatures from -40C to +90C under free air convection.

The metal enclosure carries IP67 or IP65 ratings depending on the version. Four function versions are available: A (output current adjustable via built-in potentiometer, IP65), B (3-in-1 dimming, IP67), AB (current adjustment + 3-in-1 dimming, IP65), and D (timer dimming function, IP67, safety approval pending - contact MEAN WELL for details).

Protection includes OVP (auto-recovery or re-power recovery), OTP (automatic recovery after temperature drops), and short-circuit constant-current limiting with automatic recovery. The driver complies with global lighting safety and EMC standards and is backed by a 7-year warranty. Note: a switch must be installed between the mains and the LED driver to meet the latest ErP regulations.

Product Images

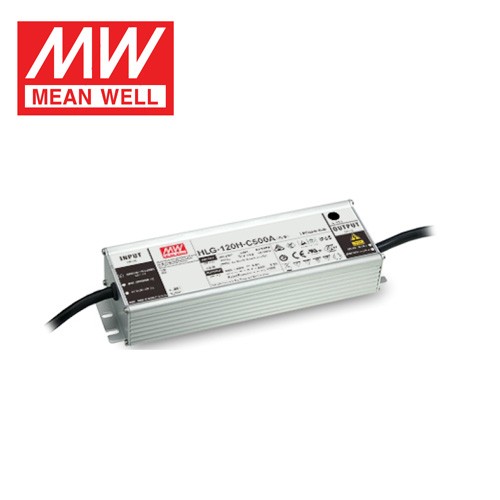

HLG-120H-C series LED driver product image

HLG-120H-C series LED driver wiring diagram

HLG-120H-C series LED driver dimension diagram

Technical Specifications

Output ratings for the HLG-120H-C series. All values measured at 230VAC, rated current, 25C unless noted.

Model	Rated Current	Rated Power	CC Region	Current Adj. Range (A/AB)	Efficiency
HLG-120H-C350	350mA	150.5W	215 ~ 430V	175 ~ 350mA	94%
HLG-120H-C500	500mA	150W	150 ~ 300V	250 ~ 500mA	94%
HLG-120H-C700	700mA	150.5W	107 ~ 215V	350 ~ 700mA	94%
HLG-120H-C1050	1050mA	155.4W	74 ~ 148V	525 ~ 1050mA	94%
HLG-120H-C1400	1400mA	151.2W	54 ~ 108V	700 ~ 1400mA	93.5%

Version Types

Type	IP	Output Adjustment	Dimming	Availability
A	IP65	Current adjustable via built-in potentiometer	None	In Stock
B	IP67	Fixed	3-in-1 (1~10Vdc / 10V PWM / resistor)	In Stock
AB	IP65	Pot + Dimming	3-in-1 (1~10Vdc / 10V PWM / resistor)	In Stock
D	IP67	Timer dimming function	Built-in timer dimming	By request (safety pending)

Input & Protection (All Versions)

Input Voltage Range	90~305VAC / 127~431VDC \| 47~63Hz
Active PFC / THD / AC Current	PF>=0.98/115V, >=0.96/230V, >=0.93/277V at full load \| THD<20% (@load>=50%/115VAC,230VAC; @load>=75%/277VAC) \| 1.6A/115V, 0.8A/230V, 0.7A/277V
Inrush / Leakage / Breaker	Cold start 50A (twidth=600us measured at 50% Ipeak) / 230VAC per NEMA 410 \| 4 units (B-type breaker) or 6 units (C-type breaker) on 16A breaker at 230VAC \| <0.75mA/277VAC
Set Up Time	1000ms / 115VAC, 500ms / 230VAC (first cold start)
Protection	OVP: shutdown with auto-recovery or re-power on (model-specific trip range) \| OTP: shutdown, automatic recovery after temperature drops \| Short circuit: constant-current limiting, auto-recovery after fault removed \| Current tolerance: ±5% \| Current ripple: 8.0% max. @ rated current
Surge Immunity	Line-to-earth: 4KV (heavy industry) \| Line-to-line: 2KV
Operating / Storage Temp	Tcase=-40~+90C (refer to derating curve) \| Storage -40~+80C \| Temp coefficient ±0.03%/C (0~50C)
Vibration / Humidity	10~500Hz, 5G, 12min/cycle, X/Y/Z 72min each \| 10~95% RH non-condensing
Isolation	3.75KVac I/P-O/P, 2KVac I/P-FG, 1.5KVac O/P-FG
EMC Emission / Immunity	EN55015, EN61000-3-2 Class C (>=50% load), EN61000-3-3, GB/T17743, GB17625.1, EAC TP TC 020 \| Immunity: EN61000-4-2/3/4/5/6/8/11, EN61547, heavy industry surge, EAC TP TC 020
Lifetime / MTBF / Size	>62,000 hours at Tcase<80C \| 2456.4K hrs (Telcordia SR-332) / 191.1K hrs (MIL-HDBK-217F, 25C) \| 220 x 68 x 38.8mm \| 1.04Kg

Safety Standards & Certifications

Safety Standards	UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, GB/T19510.1, GB/T19510.213, EAC TP TC 004 \| IP65 or IP67
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2.0KVAC \| O/P-FG: 1.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25C / 70% RH
EMC Emissions	BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=50% load), BS EN/EN61000-3-3, GB/T17743, GB17625.1, EAC TP TC 020
EMC Immunity	BS EN/EN61000-4-2/3/4/5/6/8/11, BS EN/EN61547, heavy industry level (surge 4KV line-earth, 2KV line-line), EAC TP TC 020

Key Features

Constant Current Output -- Direct LED Drive
HLG-120H-C is a pure constant-current driver designed to directly drive LED strings without additional constant-current circuitry. Choose 350mA, 500mA, 700mA, 1050mA or 1400mA to match your LED module current rating.

Five Current Options -- 350mA to 1400mA
C350 covers 215~430V; C500 covers 150~300V; C700 covers 107~215V; C1050 covers 74~148V; C1400 covers 54~108V. Select the current and version that matches your LED string configuration.

4 Version Types -- A / B / AB / D
A-Type offers current adjustment via internal pot; B-Type adds 1-10V/PWM/resistor dimming; AB-Type combines both; D-Type provides timer dimming (contact MEAN WELL for availability).

IP67 / IP65 Metal Housing
Sealed metal enclosure supports both indoor and outdoor installations. 5G vibration resistance and -40~+90C Tcase operation for harsh environments.

Active PFC + Global Certifications
PF>=0.98 at 115V and THD<20% keep installations compliant. UL/CSA/IEC/AS/NZS/GB/EAC certifications enable worldwide deployment.

7-Year Warranty + 90~305VAC Input
Backed by a 7-year warranty. Universal 90~305VAC input covers 100V Japan, 120V North America, 230V Europe, and 277V US industrial circuits.

Frequently Asked Questions

What is the difference between HLG-120H-C350, C500, C700, C1050 and C1400?

The model number indicates the rated constant current: C350=350mA, C500=500mA, C700=700mA, C1050=1050mA, C1400=1400mA. Each model has a different output voltage region matched to the current. C350 covers 215~430V; C500 covers 150~300V; C700 covers 107~215V; C1050 covers 74~148V; C1400 covers 54~108V. All share the same 150W-class enclosure, protection, and certification set.

Is HLG-120H-C a constant-voltage driver?

No. HLG-120H-C is a constant-current LED driver. It maintains a fixed output current while the output voltage varies within the specified constant-current region based on the LED load. Do not use it to power LED modules that require a constant-voltage supply.

Which version type should I choose?

A-Type for fixtures needing current tuning via internal potentiometer. B-Type for smart lighting with 1-10V/PWM/resistor dimming. AB-Type for both tuning and dimming. D-Type for timer dimming functions - contact MEAN WELL before ordering because safety approval is pending.

What IP rating do I get with each version?

B and D versions are IP67. A and AB versions are IP65. Select IP67 for direct outdoor exposure and IP65 for protected outdoor or indoor applications.

Does HLG-120H-C support high ambient temperatures?

Yes. The driver operates at case temperatures from -40C to +90C with free air convection. For lifetime, MEAN WELL specifies >62,000 hours when Tcase remains below 80C.
