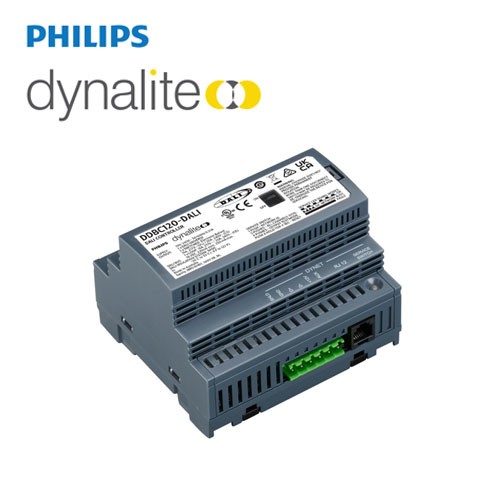

PHILIPS Dynalite DALI Driver Controller DDBC120-DALI 913703685109

DDBC120-DALI

Enabling a full DALI universe including tunable white drivers, DALI sensors and user

interfaces

• Single-master solution – Compatible with a range of DALI fittings and devices, including DALI fluorescent drivers, DALI electronic

low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user

interfaces.

• Compatible with DALI 209 drivers – Provides control of tunable white luminaires.

• DALI auto-enumeration – Provides automatic enumeration of DALI drivers when powered on and enables self-repair of the

network system if a DALI driver fails.

• Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as

maximum group sizes.

• Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to

the controlled lighting circuit.

• DALI port protection – DALI port is protected by a self-resettable fuse, preventing damage to devices if exposed to prolonged

excessive current from multiple DALI power supplies or accidental shorting to mains. Once fault conditions have been corrected,

the device resumes normal operation.

• Dual functionality – Leverage advantages of a true DALI network solution, whilst still allowing full function set of DyNet network

control.

• Driver standby power elimination – Internal switched relay automatically isolates the power circuit when all drivers are dimmed to

0%.

• Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution

board wiring complexity.

• Driver management tools – Includes lamp and driver status reporting, driver run time tracking, and emergency test reporting.

• Onboard DALI test function – Use the controller's service switch to set all connected lamps to full brightness, or flash on/off for a

5-minute test window, without the need for software or additional input devices.

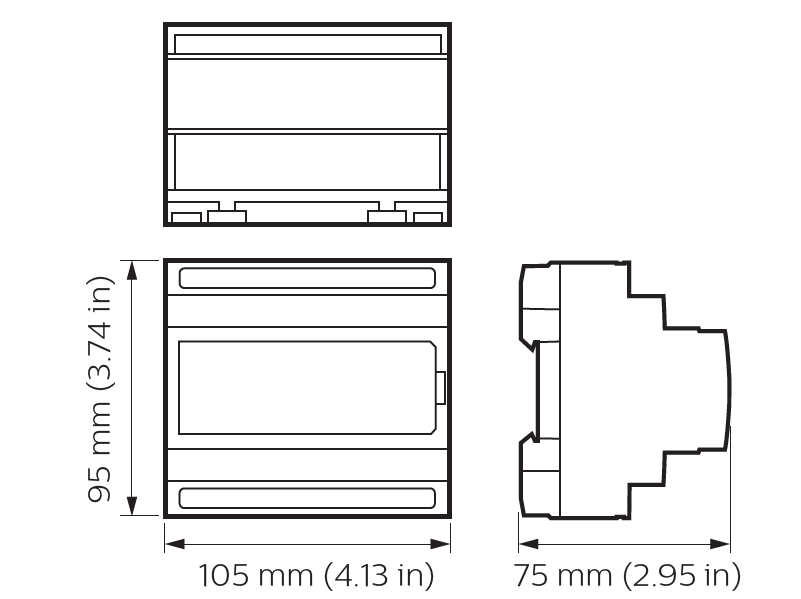

Dimension

Ordering Code

913703685109  DDBC120-DALI v4

913703031109  DDBC300-DALI

913703031209  DDBC320-DALI V3

913703079709  DDBC320-DALI V4

913703333909  DDBC1200

913703031509  DDBC516-FR
