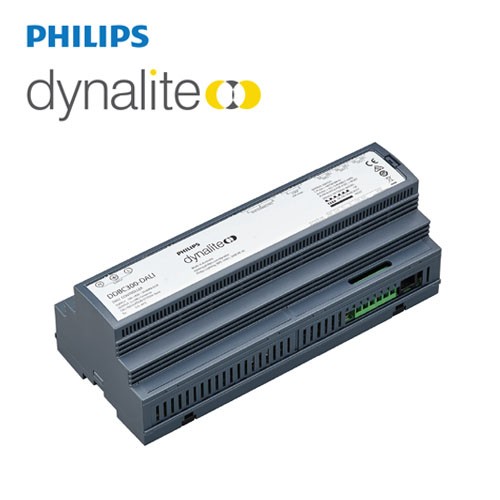

PHILIPS Dynalite DALI Driver Controller DDBC300-DALI 913703031109

DDBC300-D

Cost-effective DALI control solution

• Compatible with a range of DALI fittings and devices – Including DALI drivers, DALI electronic low voltage transformers and DALI

LED fixtures.

• Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as

maximum group sizes.

• Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to

the controlled lighting circuit.

• Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution

board wiring complexity.

• Inbuilt diagnostic functionality – Features lamp and driver failure reporting, driver run time tracking for each driver and Device

Online/Offline status indication.

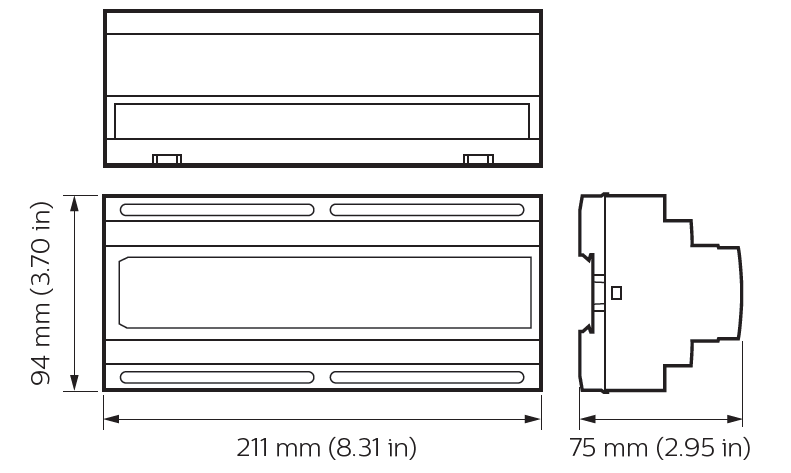

Dimension

Ordering Code

913703685109  DDBC120-DALI v4

913703031109  DDBC300-DALI

913703031209  DDBC320-DALI V3

913703079709  DDBC320-DALI V4

913703333909  DDBC1200

913703031509  DDBC516-FR
