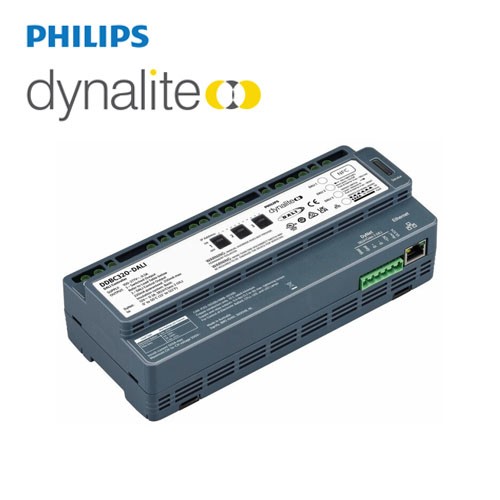

PHILIPS Dynalite DALI Driver Controller DDBC320-DALI V3 913703031209

DDBC320-DALI

• Compatible with a range of DALI fittings and devices — Including; DALI HF fluorescent drivers, DALI electronic low voltage

tranformer and DALI LED fixtures.

• Innate energy savings — Control signals can be programmed to operate in tandem with three internal switched outputs, which will

automatically isolate the power circuit when all associated channels are at 0%. This is a useful feature as DALI drivers still draw

significant power when lamps are turned off via a DALI command.

• Fully scalable network solution — Direct mapping from DALI to the Philips Dynalite DyNet network protocol eliminates DALI

imposed limits, such as maximum group sizes.

• Flexible mounting solution — A DIN-rail mountable device, designed to be installed into the distribution board supplying power to

the controlled lighting circuit.

• Integral DALI bus power supply — Removes the need for provision of a separate external power supply and reduces distribution

board wiring complexity.

• Inbuilt diagnostic functionality — Features lamp and driver failure reporting, driver run time tracking for each driver and Device

Online/Offline status indication.

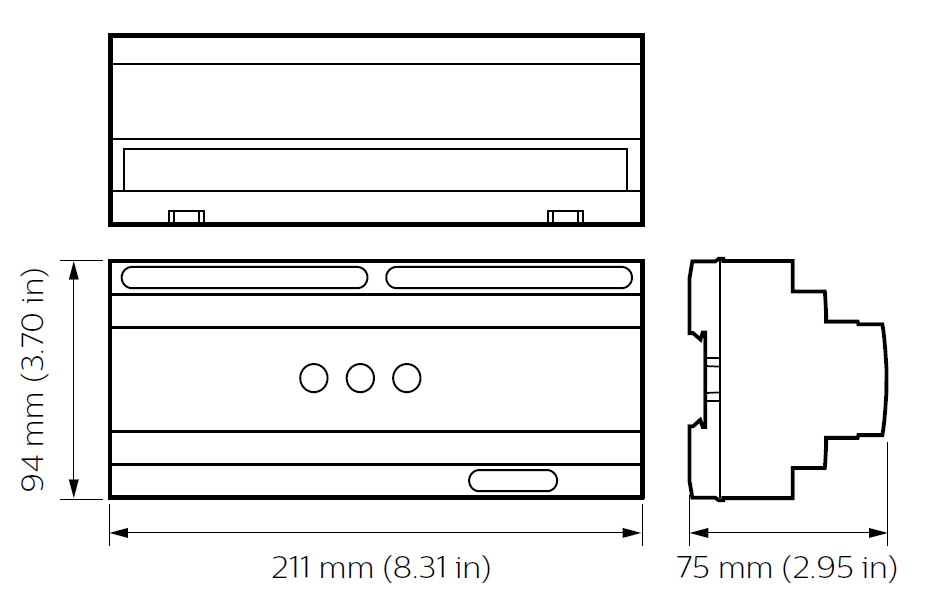

Dimension

Ordering Code

913703685109  DDBC120-DALI v4

913703031109  DDBC300-DALI

913703031209  DDBC320-DALI V3

913703079709  DDBC320-DALI V4

913703333909  DDBC1200

913703031509  DDBC516-FR
