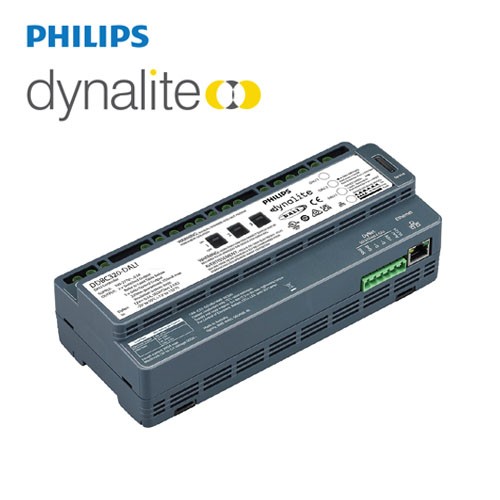

PHILIPS Dynalite DALI Driver Controller DDBC320-DALI V4 913703079709

DDBC320-DALI

Power-saving DALI-2 control solution

• Single-master solution – Compatible with a range of DALI fittings and devices including DALI fluorescent drivers, DALI electronic

low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user interfaces.

• Compatible with DALI 209 drivers – Provides control of tunable white and RGBWAF luminaires.

• Driver standby power elimination – Internal switched relay automatically isolates each line's power circuit when all drivers are

dimmed to 0%.

• Independent line enumeration – Commission each DALI line individually without affecting other lines or controller functionality.

• Auto-enumeration – Provides automatic enumeration of DALI drivers when powered on and enables self repair of the network

system if a DALI driver fails.

• Silent enumeration – Constantly checks the DALI bus for changes, automatically enumerating individual driver replacements with

no disruption to lighting performance.

• UL924 Input – Integrates seamlessly with compatible emergency systems.

• Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as

maximum group sizes.

• DALI port protection – Each DALI port is protected by a self-resettable fuse, preventing damage to devices if exposed to

prolonged excessive current from multiple DALI power supplies or accidental shorting to mains. Once fault conditions have been

corrected, the device resumes normal operation.

• Inbuilt Ethernet port – Directly connecting to a site’s LAN, the device can securely report its status and pass network messages via

the Dynalite PDDEG-S*.

• Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board, supplying power to

the controlled lighting circuit.

• Dual functionality – Leverage advantages of a true DALI network solution, whilst still providing access to the full DyNet feature

set.

• Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution

board wiring complexity.

• Driver management tools – Includes lamp and driver status reporting, driver runtime tracking, and emergency test reporting.

• Onboard DALI test function – Use each DALI line's test button to turn all connected drivers on/off, or flash on/off for a 5-minute test

window, without the need for software or additional input devices.

• Onboard line override switch – Set each DALI line's connected drivers to 100% or 0% brightness without the need for software or

additional input devices.

* Each PDDEG-S supports encrypted communication with up to 25 controllers.

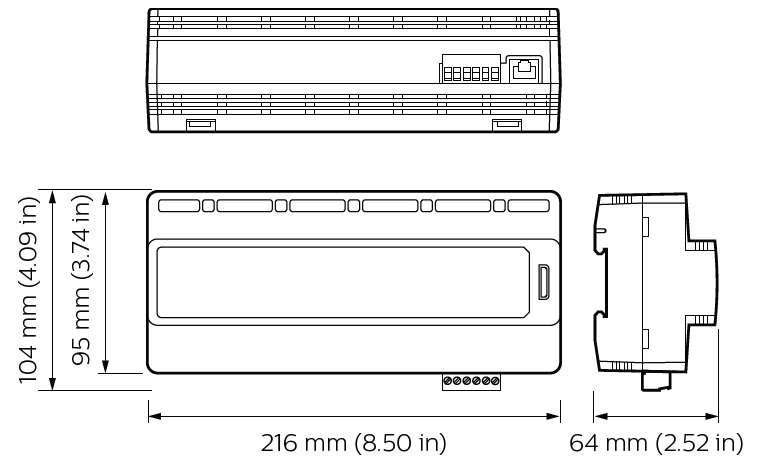

Dimension

Ordering Code

913703685109  DDBC120-DALI v4

913703031109  DDBC300-DALI

913703031209  DDBC320-DALI V3

913703079709  DDBC320-DALI V4

913703333909  DDBC1200

913703031509  DDBC516-FR
