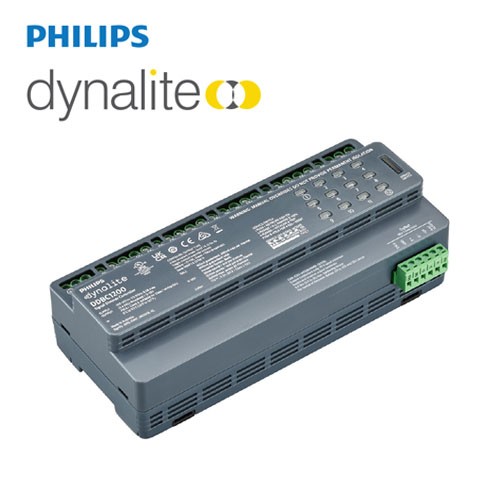

PHILIPS Dynalite DALI Driver Controller DDBC1200 913703333909

DDBC1200

Multi-protocol control solution

• Multiple protocols supported – Compatible with a range of fittings and devices including: DALI drivers (broadcast mode only), DALI

electronic low voltage transformers (broadcast mode only), 1-10 V drivers, and devices that require 0-10 V analog control signals.

• Inbuilt protocol selection – Installers can toggle each channel between DALI Broadcast and 1-10 V without the need for

commissioning software.

• Compatible with DALI 209 drivers – Provides control of tunable white luminaires.

• LED status indicators – Instant visual feedback on channel status of all 12 outputs.

• Flexible mounting solution – DIN rail mounting clips designed for installation into the distribution board supplying power to the

controlled lighting circuits.

• Inbuilt diagnostic functionality – Device Online/Offline status and individual control channel status indicators.

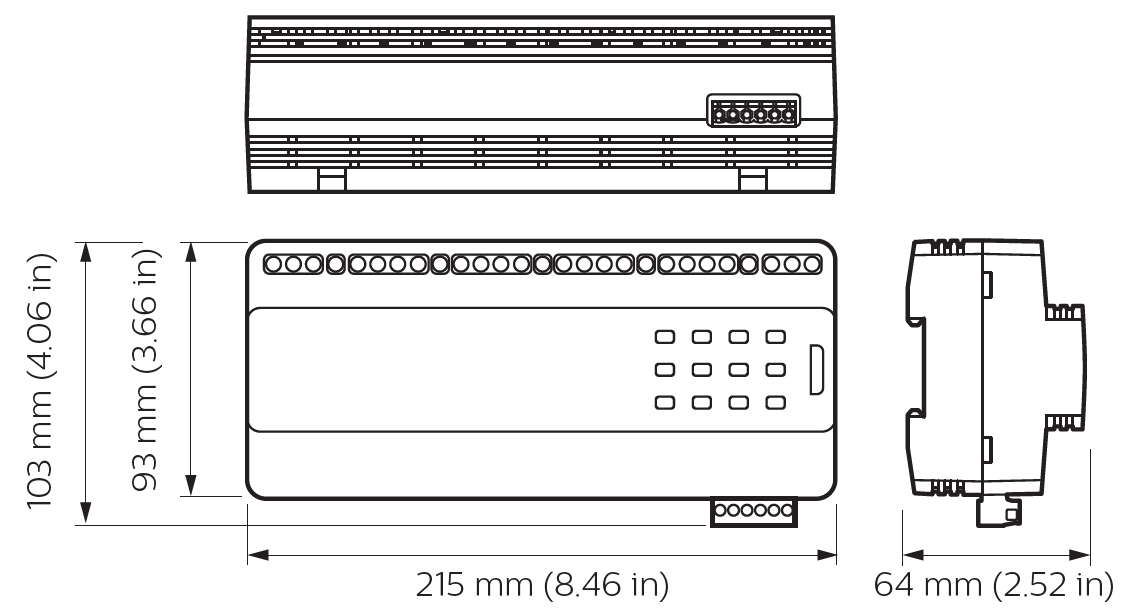

Dimension

Ordering Code

913703685109  DDBC120-DALI v4

913703031109  DDBC300-DALI

913703031209  DDBC320-DALI V3

913703079709  DDBC320-DALI V4

913703333909  DDBC1200

913703031509  DDBC516-FR
