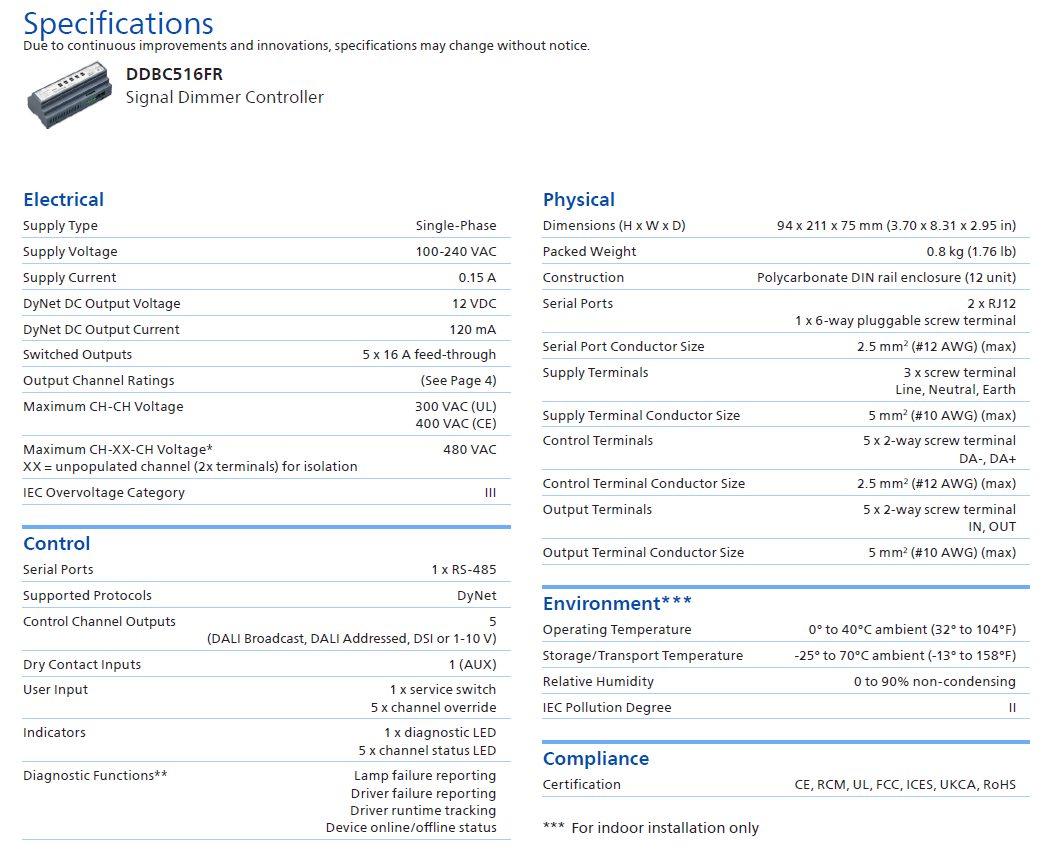

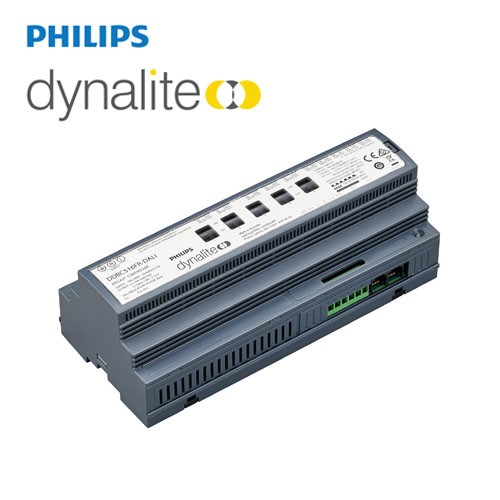

DDBC516FR
Flexible control of 1-10 V and DALI drivers
• Multiple protocols supported – Each of the five control outputs supports DALI broadcast (maximum ten DALI loads/channel), DALI
addressed (maximum ten DALI loads/ channel), 1-10 V (maximum 10 mA sink or source/channel) or DSI (maximum five DSI
loads/channel).
• Built-in energy savings – Control signals can be programmed to operate in tandem with five internal switched outputs, which will
automatically isolate the power circuit when all associated channels are at 0%. This is a useful feature as DALI drivers still draw
significant power when lamps are turned off via a DALI command.
• Integral DALI bus power supply – Removes the need for an additional external device.
• Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to
the controlled circuit.
• Inbuilt diagnostic functionality – Features lamp and driver failure reporting, driver run time tracking for each driver and the
switched output, as well as Device Online/Offline status indication.
Dimension
Ordering Code
913703685109 DDBC120-DALI v4
913703031109 DDBC300-DALI
913703031209 DDBC320-DALI V3
913703079709 DDBC320-DALI V4
913703333909 DDBC1200
913703031509 DDBC516-FR
