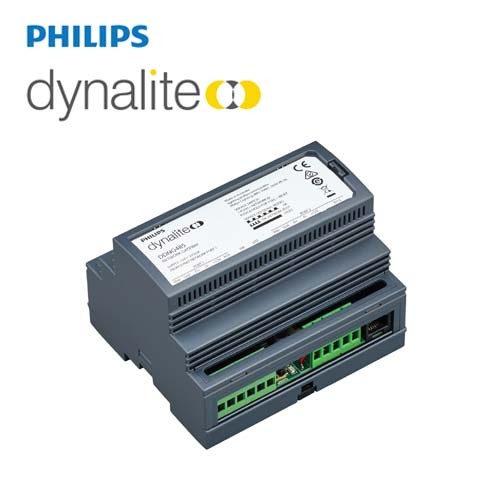

PHILIPS Dynalite Integration Devices DDNG485 913703081209

DDNG485

Flexible network communications gateway

• Route DyNet to third-party systems – Such as audio visual, Somfy blind controllers, Modbus meters and building automation

systems, providing an integrated approach to total building control and energy management.

• DMX512 mode – Transmit or receive up to 64 channels of DMX512, with automatic DyNet conversion and task triggering.

Provides temporary control of house lights from the DMX512 console in an auditorium scenario.

• Electrical fault isolation – Faults can be isolated to individual network spurs.

• Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic

function processing, packet filtering and DyNet to DyNet 2 translation.

• Flexible mounting solution – DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.

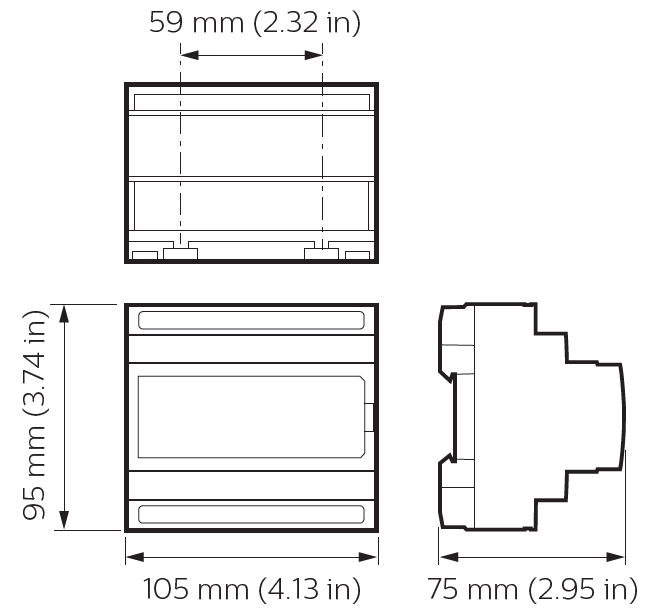

Dimension

Ordering Code

913703081009  DDFCUC024

913703081909  DDFCUC010

913703081109  DDMIDC8

913703081209  DDNG485

913703081309  DDNI485

913703080509  DDNG-KNX

913703081809  DDNG232

913703013809  PDEG

913703240009  PDEB
