PHILIPS Dynalite Network Devices DDNI485 913703081309

DDNI485

Cost-effective optical isolation

• Electrical fault isolation – Two opto-isolated RS 485 ports enable the DDNI485 to implement network segmentation, electrically

isolating each spur and containing network faults.

• Passive device – Does not require programming.

• Flexible mounting solution – DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.

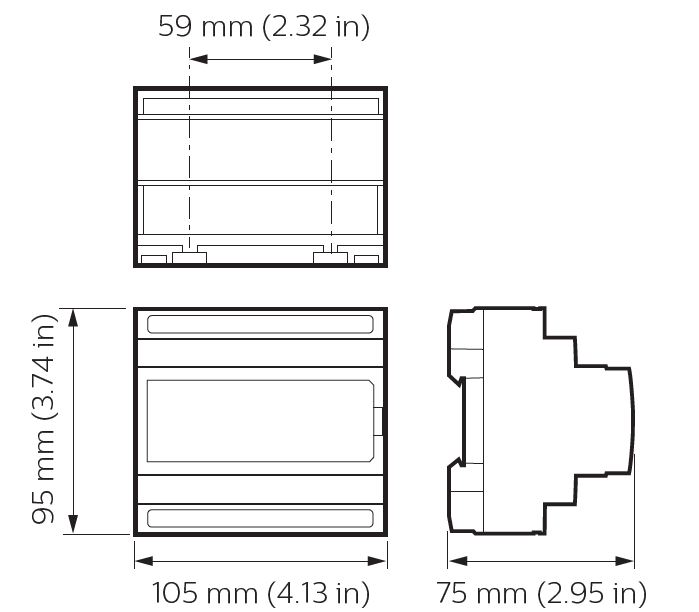

Dimension

Ordering Code

913703081009  DDFCUC024

913703081909  DDFCUC010

913703081109  DDMIDC8

913703081209  DDNG485

913703081309  DDNI485

913703080509  DDNG-KNX

913703081809  DDNG232

913703013809  PDEG

913703240009  PDEB
