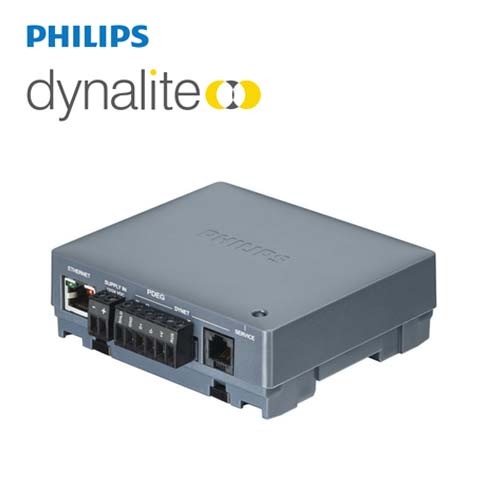

PHILIPS Dynalite System Integration DDNG232 913703081809

PDEG

Flexible Ethernet integration

• Large storage capacity – The device stores large project files internally, which apps use to automatically configure their settings.

This saves configuration time and ensures accuracy for phone and tablet control.

• Built-in web server – Provides control and status via Common Gateway Interface (CGI) protocol. Allows authenticated users to

edit and check system settings via the Network Hardware Checker and System Roll Call tools.

• Secure Access – Employs HTTPS for secure, encrypted network communication.

• Network routing – Routing functionality such as address offset and message filtering and translation

• Scheduled event management – Inbuilt timeclock, schedule manager, sunrise/sunset tracking and automatic daylight saving

adjustment allow the user to manage operation and task scheduling without advanced technical knowledge.

• Powerful custom task engine – Allows users or third-party systems to run macros, such as ‘After Hours’, ‘Shut Down’, ‘Welcome’

and more.

• Advanced interoperability – Supports management of Philips Dynalite systems, Philips PoE fittings, and Philips Hue lamps and

bridges, on a single system.

• Third party integration – Capable of direct communication with specialized hospitality and building automation systems such as

VingCard Elsafe, CoolAutomation, Oracle Fidelio, and others.

• Day Rhythm* – Supports up to five color temperature curves to simulate the intensity and color temperature of natural daylight

over the course of a day. Different curves can be assigned to different seasons or specific days as required.

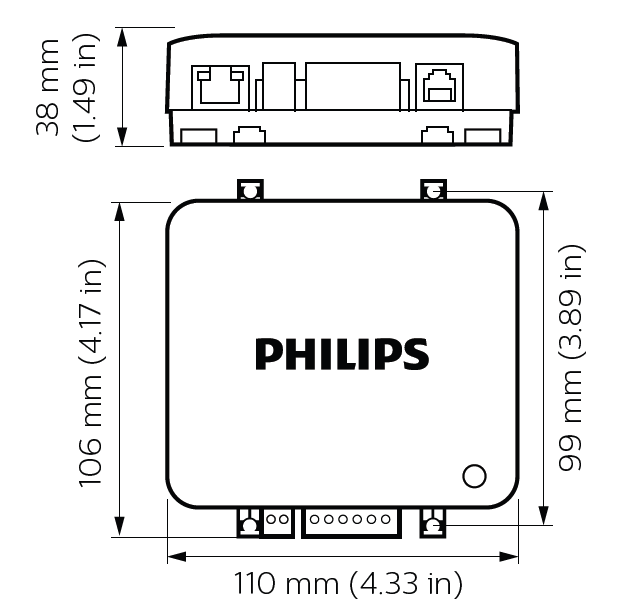

Dimension

Ordering Code

913703081009  DDFCUC024

913703081909  DDFCUC010

913703081109  DDMIDC8

913703081209  DDNG485

913703081309  DDNI485

913703080509  DDNG-KNX

913703081809  DDNG232

913703013809  PDEG

913703240009  PDEB
