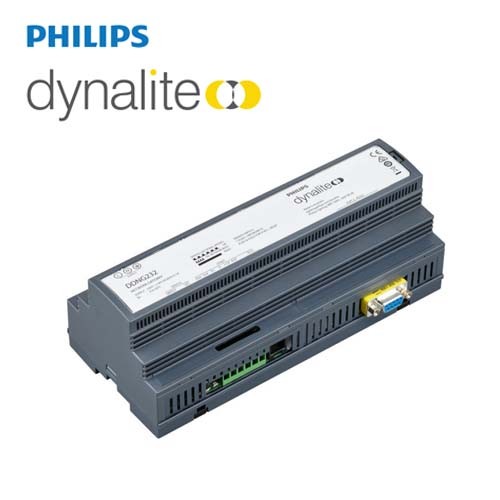

PHILIPS Dynalite System Integration DDNG232 913703081809

DDNG232

RS232 Network Gateway Cost-effective serial port integration

• Seamless integration with third-party systems — Including AV systems, lighting desks, data projectors, HVAC, BMS and security

systems.

• Internal controls — Including programmable logic controller capable of comprehensive conditional and sequential logic and

 arithmetic function processing.

• Utilize data format library or create your own — A library of data formats is available for systems integrators, or can be created

 using the onboard conditional logic engine to assemble and transmit user-defined data strings.

• Macro functions available — To simplify the control of multiple devices.

• Flexible mounting solution — DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.

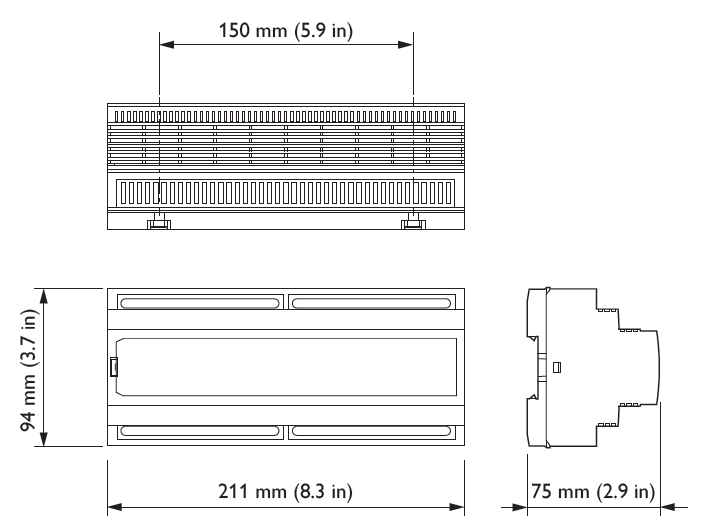

Dimension

Ordering Code

913703081009  DDFCUC024

913703081909  DDFCUC010

913703081109  DDMIDC8

913703081209  DDNG485

913703081309  DDNI485

913703080509  DDNG-KNX

913703081809  DDNG232

913703013809  PDEG

913703240009  PDEB
