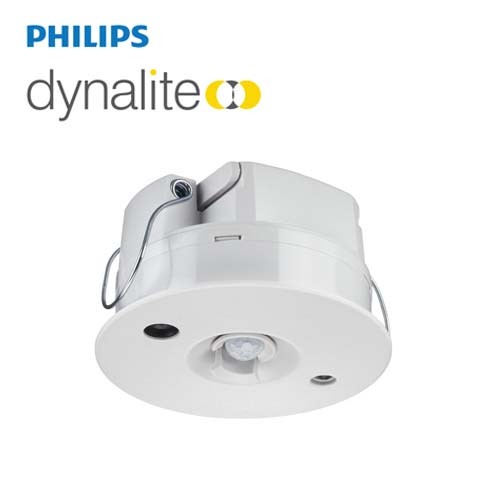

PHILIPS Dynalite Multifunction Sensor DUS360CR 913703689609

DUS360CR

Low profile recessed 360° ceiling sensor

• Motion detection feature – Detects the presence or absence of motion and adjusts lights accordingly.

• Segmented click-up bezel – Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This

prevents nuisance detection from adjacent doorways or corridors.

• Ambient light level regulation – In applications where it is critical to maintain precise light levels, the PE function reads ambient

levels and adjusts artificial light accordingly.

• Infrared receive capability – Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the

DUS360CR.

• Daylight harvesting mode – Delivers automatic energy savings.

• Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.

• Anti-stumble sensing option – Helps users move about safely at night without having to find a light switch. (see page 4 for details)

• Suitable for plenum use – UL2043 certified for installation in air-handling plenum spaces.

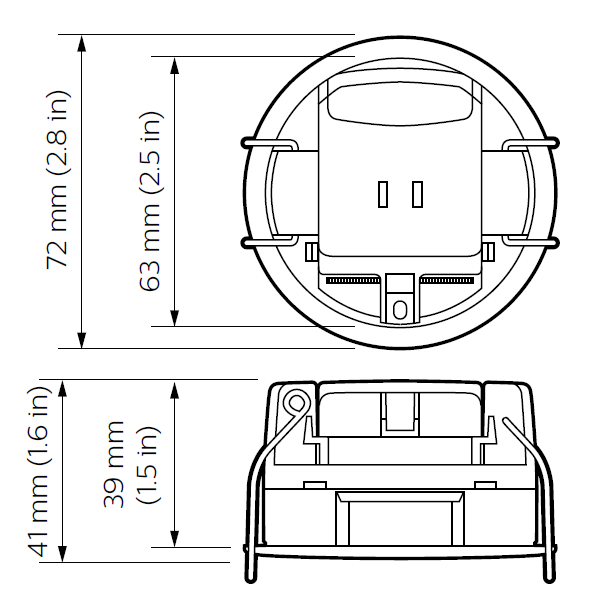

Dimension

Ordering Code

913703689609  DUS360CR

913703029309  DUS360CR-DA

913703070409  DUS804C-UP

913703243109  DUS360CS

913703244209  DUS90CS

913703244309  DUS30CS
