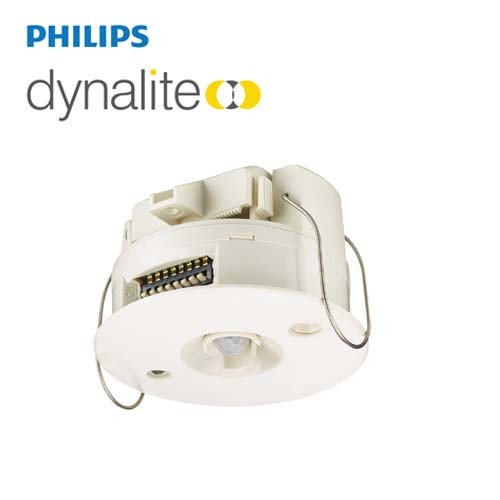

PHILIPS Dynalite Multifunction Sensor DUS360CR-DA 913703029309

DUS360CR-DA

Low profile recessed 360° ceiling sensor

• Motion detection feature – Detects the presence or absence of motion and adjusts lights accordingly.

• Segmented click-up bezel – Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This

prevents nuisance detection from adjacent doorways or corridors.

• No software set-up – All functionality can be achieved with the built-in DIP switches for area addressing, no-motion time-out and

other advanced features.

• Rapid configuration – Up to 31 individual addressing areas of control.

• User-selectable options – No-motion time-out selectable to 30 seconds, 5 minutes, 15 minutes or 30 minutes.

• Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.

• Suitable for plenum use – UL2043 certified for installation in air-handling plenum spaces.

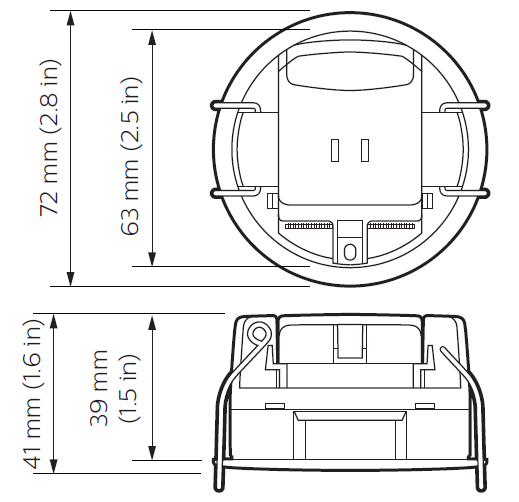

Dimension

Ordering Code

913703689609  DUS360CR

913703029309  DUS360CR-DA

913703070409  DUS804C-UP

913703243109  DUS360CS

913703244209  DUS90CS

913703244309  DUS30CS
