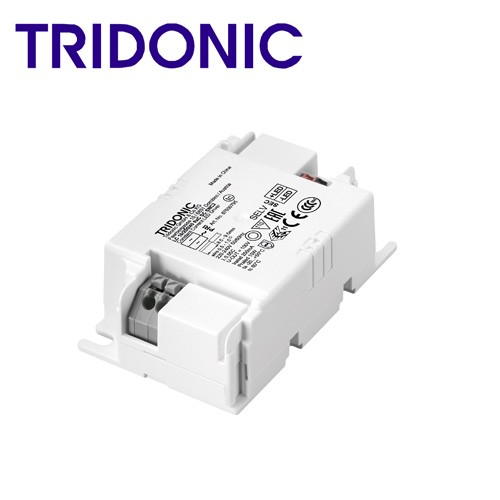

Tridonic LED Driver LC 10W 250/350/500/700mA fixC SC SNC2 87500795

Product description

- Fixed output LED driver

- Can be either used built-in or independent with clip-on strain-relief (see accessory)

- Independent LED driver with cable clamps

- Constant current LED driver

- For luminaires of protection class II

- Temperature protection as per EN 61347-2-13 C5e

- Output current 250, 350, 500 or 700 mA

- Max. output power 10 W

- Nominal lifetime up to 50,000 h

- 5 years guarantee

Housing properties

- Casing: polycarbonate, white

- Type of protection IP20

Functions

- Overload protection

- Short-circuit protection

- No-load protection

- Burst protection voltage 1 kV

- Surge protection voltage 0.5 kV (L to N)

- Surge protection voltage 1 kV (L/N to earth)

Typical applications

- For spot light and downlight in retail and hospitality applications

- For panel light and area light in office and education application

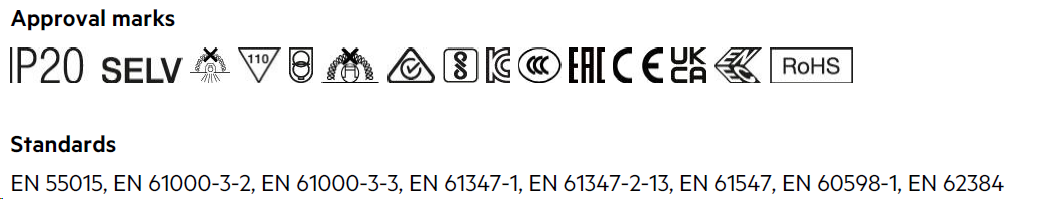

Approval marks and Standards

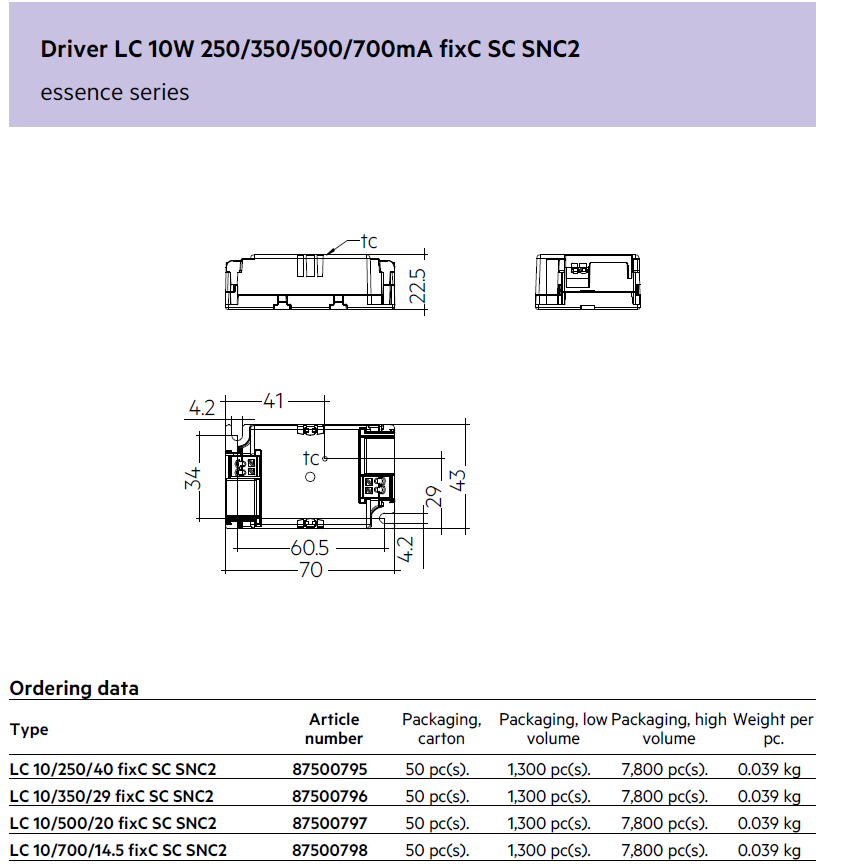

Dimension and Ordering data

Remark

LC 10/250/40 fixC SC SNC2         87500795

LC 10/350/29 fixC SC SNC2         87500796

LC 10/500/20 fixC SC SNC2         87500797

LC 10/700/14.5 fixC SC SNC2      87500798

LC 15/300/50 fixC SC SNC2         87500718

LC 15/350/43 fixC SC SNC2         87500729

LC 8/180/44 fixC SR SNC2           87500799

LC 8/200/40 fixC SR SNC2           87500800

LC 10/250/40 fixC SR SNC2         87500801

LC 10/350/29 fixC SR SNC2         87500802

LC 10/500/20 fixC SR SNC2         87500803

LC 10/700/14.5 fixC SR SNC2      87500804

LC 15/300/50 fixC SR SNC2         87500746

LC 15/350/43 fixC SR SNC2         87500747
