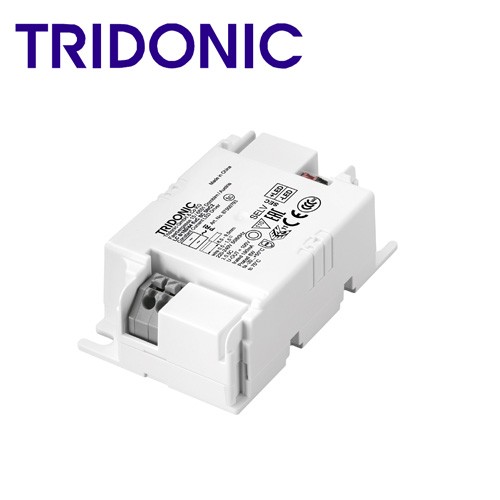

Tridonic LED Driver LC 8W 180/200mA fixC SC SNC2 87500794

Product description

- Fixed output LED driver

- Can be either used built-in or independent with clip-on strain-relief (see accessory)

- Independent LED driver with cable clamps

- Constant current LED driver

- For luminaires of protection class II

- Temperature protection as per EN 61347-2-13 C5e

- Output current 180 or 200 mA

- Max. output power 8 W

- Nominal lifetime up to 50,000 h

- 5 years guarantee

Housing properties

- Casing: polycarbonate, white

- Type of protection IP20

Functions

- Overload protection

- Short-circuit protection

- No-load protection

- Burst protection voltage 1 kV

- Surge protection voltage 0.5 kV (L to N)

- Surge protection voltage 1 kV (L/N to earth)

Typical applications

- For spot light and downlight in retail and hospitality applications

- For panel light and area light in office and education application

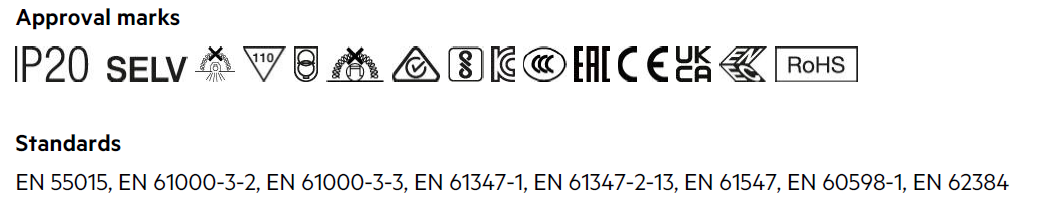

Approval marks and Standards

Dimension and Ordering data

Remark

LC 20/500/40 fixCC SC SNC4             87501106

LC 24/600/40 fixCC SC SNC4             87501107

LC 28/700/40 fixCC SC SNC4             87501108

LC 32/800/40 fixCC SC SNC4             87501109

LC 36/900/40 fixCC SC SNC4             87501110

LC 42/1050/40 fixCC SC SNC4           87501111

LC 10/150-250/42 flexC SC SNC4       87501081

LC 17/250-400/42 flexC SC SNC4       87501082

LC 25/450-600/42 flexC SC SNC4       87501083

LC 36/700-850/42 flexC SC SNC4       87501084

LC 42/900-1050/40 flexC SC SNC4     87501085

LC 62/700-1400/57 flexC SC SNC4     87501125

LC 80/1050-1400/57 flexC C SNC4     87501126

LC 114/1500-2100/57 flexC C SNC4   87501127

LC 10/150-250/42 flexC SR SNC4       87501086

LC 17/250-400/42 flexC SR SNC4       87501087

LC 25/450-600/42 flexC SR SNC4       87501088

LC 36/700-850/42 flexC SR SNC4       87501089

LC 42/900-1050/40 flexC SR SNC4     87501090

LC 5/120/42 fixC SR SNC2                 23000326

LC 7/150/47 fixC SR SNC2                 23000328

LC 8/180/44 fixC SR SNC2                 23000285

LC 8/200/40 fixC SR SNC2                 23000286

LC 10/250/40 fixC SR SNC2               23000287

LC 15/350/43 fixC SR SNC2               23000268

LC 8/180/44 fixC SC SNC2                 87500793

LC 8/200/40 fixC SC SNC2                 87500794
