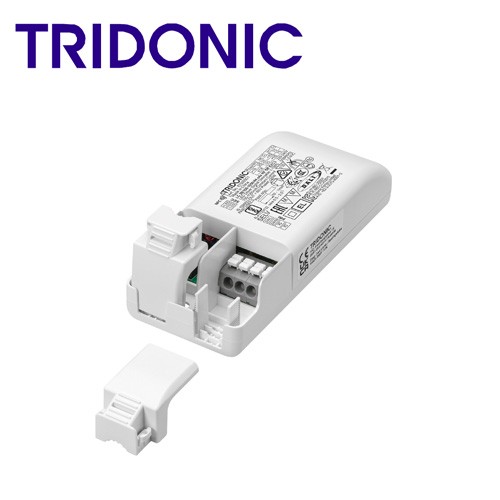

Tridonic LED Driver LC 20W 100-1050mA 44V o4a NF SR EXC3 87500921

Product description

- Independent constant current LED driver

- Dimmable via DALI-2

- Dimming range 1 to 100 % (min. 5 mA)

- Output current adjustable between 100 – 1,050 mA with DALI or NFC

- Max. output power 20 W

- Up to 85 % efficiency

- Power input on stand-by < 0.5 W

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Casing: polycarbonate, white

- Type of protection IP20

- Toolless mounting of strain relief

Interfaces

- Near field communication (NFC)

- one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION V2)

Functions

- Adjustable output current in 1-mA-steps (NFC, DALI-2)

- Constant light output function (CLO)

- Protective features (overtemperature, short-circuit, overload, no-load)

- Surge protection voltage 1 kV (L – N)

- Suitable for emergency escape lighting systems acc. to EN 50172

- For cable cross-sections up to 2.5 mm²

Benefits

- Flexible configuration via companionSUITE (NFC, DALI-2)

- Application-oriented operating window for maximum compatibility

- New strain relief concept – fast mounting and pre-assembled connection of the LED load possible

Typical applications

- For applications in downlight and decorative luminaires

Approval marks and Standards

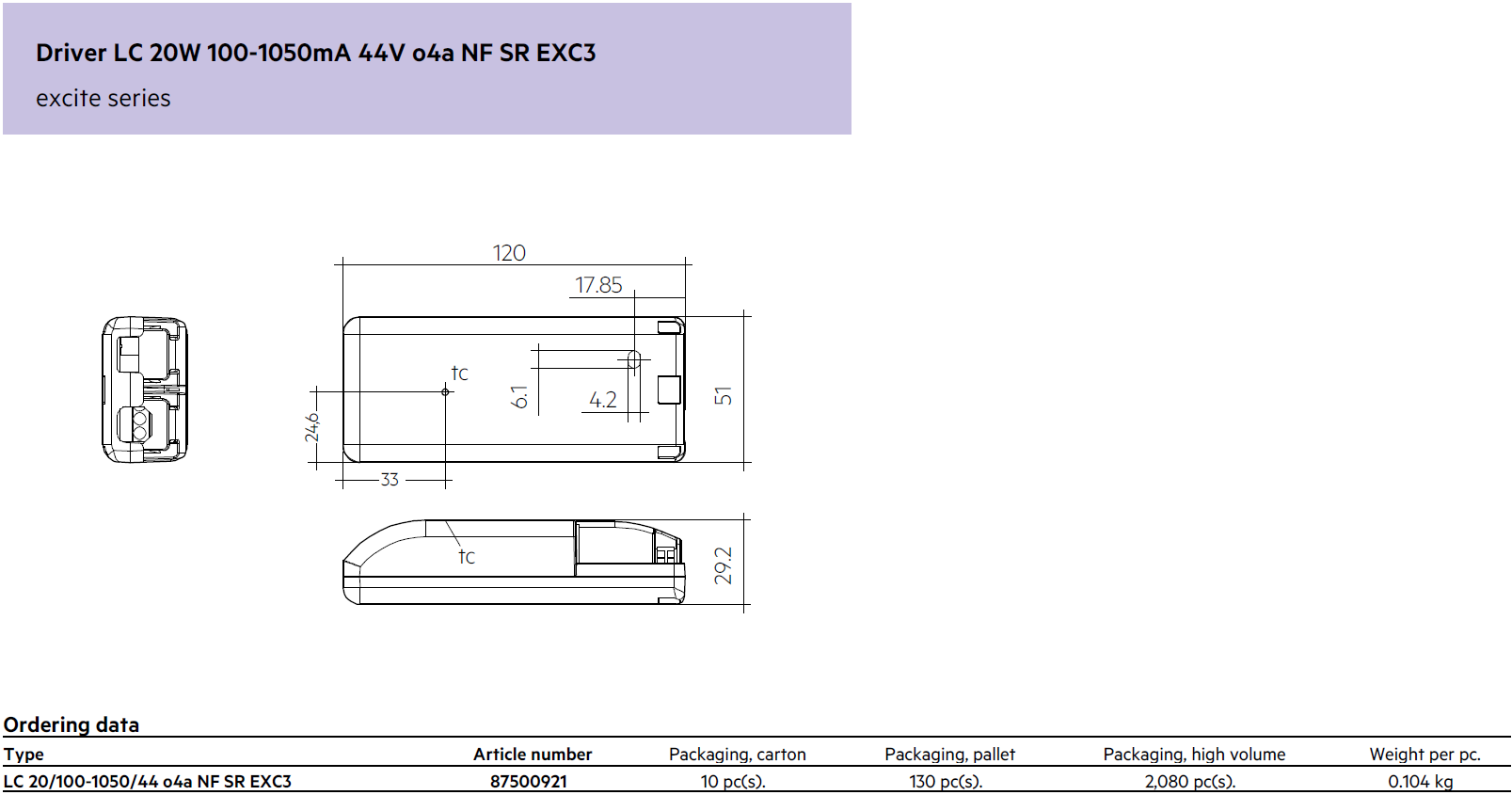

Dimension and Ordering data

Remark

LC 14/100-400/42 04a NF SC EXC3      28004041

LC 28/300-700/42 04a NF SC EXC3      28004042

LC 38/650-1050/42 04a NF SC EXC3    28004043

LC 20/100-1050/44 04a NF SR EXC3    87500921

LC 27/100-500/54 o4a NF SR EXC3      87500922

LC 45/450-1050/54 o4a NF SR EXC3    87500923
