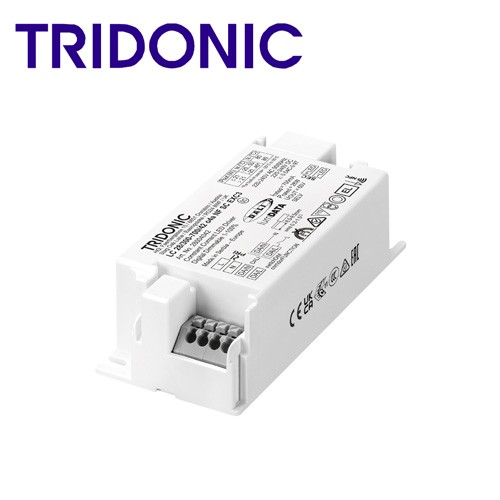

Tridonic LED Driver LC 38W 650–1050mA 42V o4a NF SC EXC3 28004043

Product description

- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)

- Can be either used build-in or independent with clip-on strain-relief (see accessory)

- Dimming range 1 to 100 % (min. 5 mA)

- For luminaires of protection class I and protection class II

- Temperature protection as per EN 61347-2-13 C5e

- Adjustable output current between 650 – 1,050 mA via NFC or DALI

- Max. output power 38 W

- Up to 88 % efficiency

- Lowest power input on stand-by < 0.4 W

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Casing: polycarbonate, white

- Type of protection IP20

Interfaces

- Near field communication (NFC)

- one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION)

- Terminal blocks: 45° push terminals

Functions

- Adjustable output current in 1-mA-steps (NFC, DALI)

- Enhanced constant light output function (eCLO)

- Protective features (overtemperature, short-circuit, overload, no-load)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Flexible configuration via companionSUITE (NFC, DALI)

- Application-oriented operating window for maximum compatibility

- Best energy savings due to low stand-by losses and high efficiency

- In-field programming possible after installation with NFC interface

Typical applications

- For downlight, spotlight and decorative applications

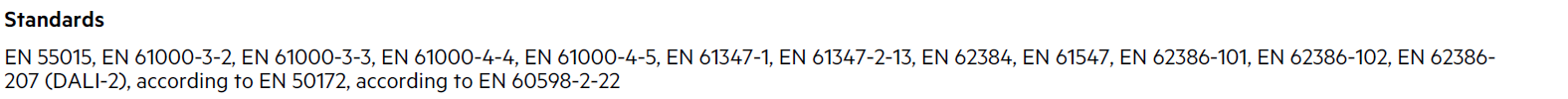

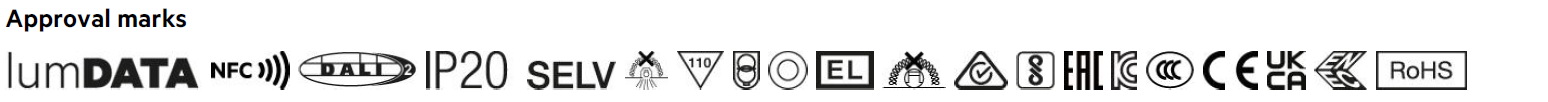

Approval marks and Standards

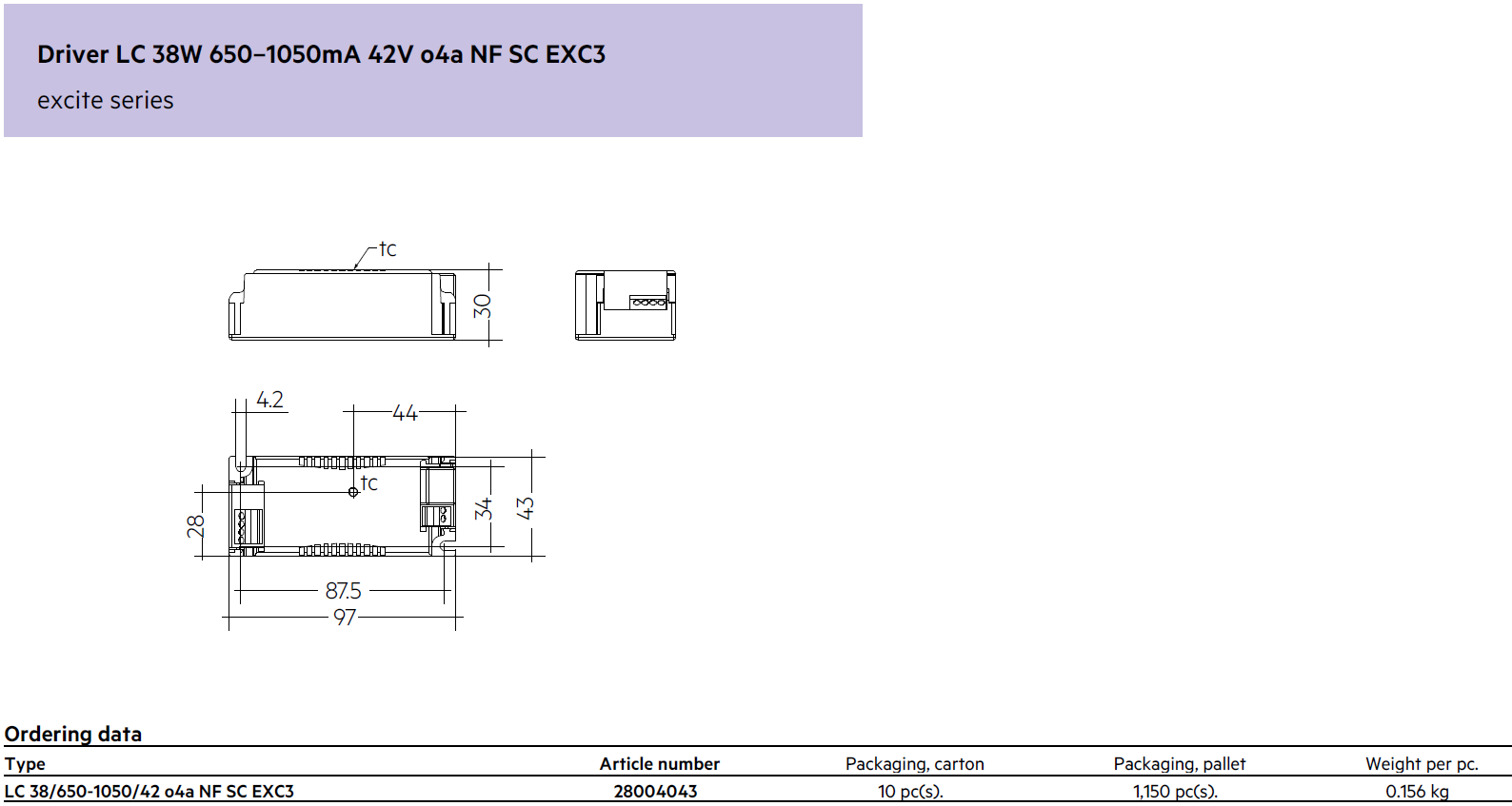

Dimension and Ordering data

Remark

LC 14/100-400/42 04a NF SC EXC3      28004041

LC 28/300-700/42 04a NF SC EXC3      28004042

LC 38/650-1050/42 04a NF SC EXC3    28004043

LC 20/100-1050/44 04a NF SR EXC3    87500921

LC 27/100-500/54 o4a NF SR EXC3      87500922

LC 45/450-1050/54 o4a NF SR EXC3    87500923
