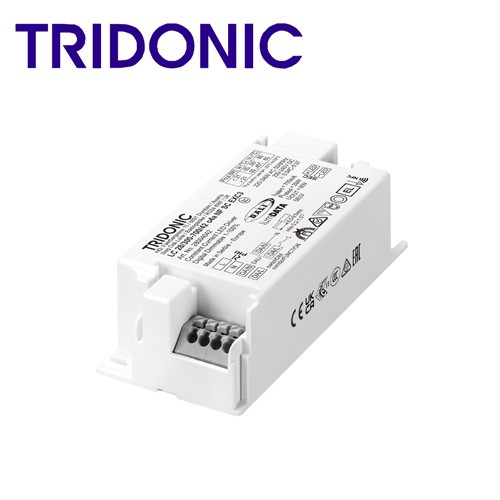

  • Tridonic LED Driver LC 28W 300–700mA 42V o4a NF SC EXC3 28004042

Tridonic LED Driver LC 28W 300–700mA 42V o4a NF SC EXC3 28004042

  • Product Item : 28004042
  • Category: LED Compact Drivers
  • Power: 28W
  • Rated supply voltage: 220-240V
  • Output current: 300-700mA
  • Dimensions: 97*43*30mm
  • Product description:This compact driver delivers a ‌flexible output current range of 300–700mA‌ with a ‌28W maximum power rating‌, optimized for 230V AC input.
  • INQUIRY   EMAIL


Tridonic LED Driver LC 28W 300–700mA 42V o4a NF SC EXC3 28004042




Product description


- Can be either used build-in or independent with clip-on strain-relief (see accessory)

- Dimming range 1 to 100 % (min. 5 mA)

- For luminaires of protection class I and protection class II

- Temperature protection as per EN 61347-2-13 C5e

- Adjustable output current between 300 – 700 mA via NFC or DALI

- Max. output power 28 W

- Up to 86 % efficiency

- Lowest power input on stand-by < 0.35 W

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties


- Casing: polycarbonate, white

- Type of protection IP20

Interfaces


- Near field communication (NFC)

- one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION)

- Terminal blocks: 45° push terminals

Functions


- Adjustable output current in 1-mA-steps (NFC, DALI)

- Constant light output function (CLO)

- Protective features (overtemperature, short-circuit, overload, no-load)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits


- Flexible configuration via companionSUITE (NFC, DALI)

- Application-oriented operating window for maximum compatibility

- Best energy savings due to low stand-by losses and high efficiency

- In-field programming possible after installation with NFC interface

Typical applications


- For downlight, spotlight and decorative applications

Approval marks and Standards

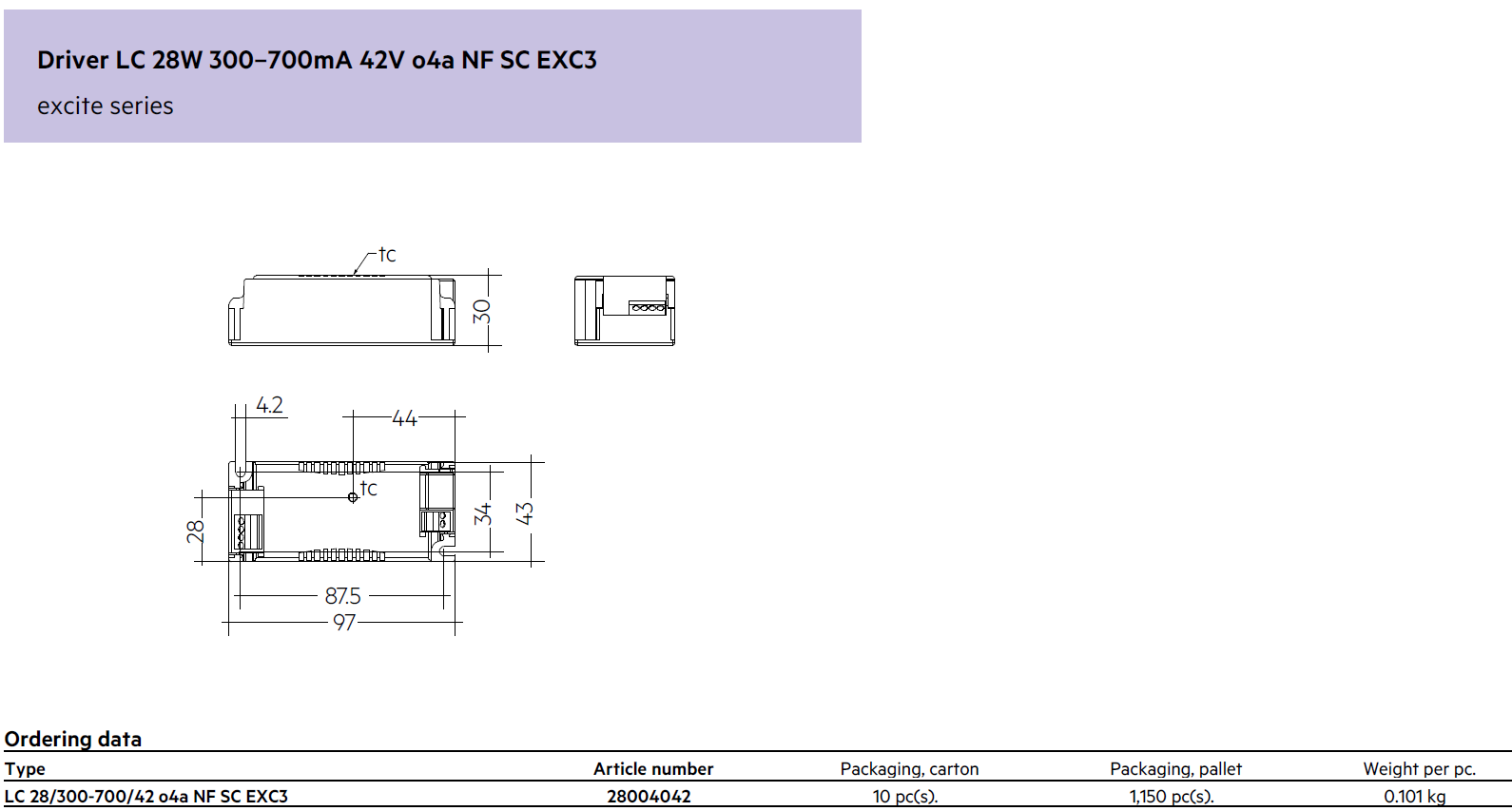

Dimension and Ordering data


Remark

LC 14/100-400/42 04a NF SC EXC3      28004041

LC 28/300-700/42 04a NF SC EXC3      28004042

LC 38/650-1050/42 04a NF SC EXC3    28004043

LC 20/100-1050/44 04a NF SR EXC3    87500921

LC 27/100-500/54 o4a NF SR EXC3      87500922

LC 45/450-1050/54 o4a NF SR EXC3    87500923
