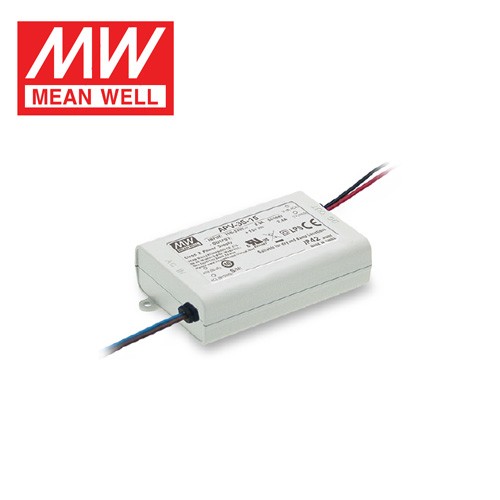

MEAN WELL Power Supply APV-35 Series Constant Voltage LED Driver - 副本

Product Item : APV-35 series
Category：LED Driver
Wattage: 35W
Input Voltage: 90 ~ 264VAC or 127 ~ 370VDC
Output Current: 0 ~ 5A
Output Voltage: 5 ~ 36V
Product description：Meanwell APV-35 series is a 35W AC/DC constant voltage mode single output LED power supply.
INQUIRY EMAIL

APC-8 Series - 8W Constant Current LED Driver (CC, 250~700mA, IP42, Class II, 14,511K MTBF)

60x30x23.5mm (Same as APV-8) | 90-264Vac | Constant Current 250/350/500/700mA | Class II No FG | IP42 | <0.5W | 82.5% Eff | UL8750/BIS | 2-Year

✓ In Stock2-YearCC Design14,511K MTBFIP42BIS All

Key Performance at a Glance8.05W
Max Power (350mA)
82.5%
Max Efficiency
4
Current Options
60mm
Length
14,511K
MTBF (hrs)
3.75KV
I/P-O/P

Product Overview

The APC-8 series is MEAN WELL's entry-level 8W constant-current LED driver -- the CC counterpart to the APV-8 CV series in the identical 60x30x23.5mm plastic chassis. Unlike the APV which delivers a fixed voltage, the APC regulates current at 250mA, 350mA, 500mA, or 700mA with a compliance voltage range that automatically adapts to the LED string's forward voltage. This is a pure CC driver for series-connected LEDs with minimal protection (short circuit only, hiccup mode).

The APC-8 accepts 90~264Vac with 0.15A/230V, 0.3A/115V and 70A inrush. Four fixed current outputs with ±8% accuracy: 250mA (16~32V/8W), 350mA (11~23V/8.05W), 500mA (8~16V/8W), and 700mA (6~11V/7.7W). The compliance voltage range means the driver automatically adjusts output voltage to maintain the set current -- no voltage setting required, just match the LED string Vf to the compliance range. Efficiency: 80% (700mA) to 82.5% (250mA). No-load output voltage is 17~38V.

The APC-8 is a simplified driver compared to the CV APV: it has only short-circuit protection (hiccup mode, auto-recovery) -- no OVP or OLP. This is by design: a CC driver inherently limits current and lets voltage float within the compliance range. The Class II plastic shell with IP42 and fly leads (Brown/Blue input 20AWG, Red/Black output 18AWG) are identical to APV-8. Operating temperature is -15~+70C (slightly higher minimum than APV's -30C).

Highlight: 14,511K hrs MTBF (Telcordia) -- the highest in MEAN WELL's budget LED driver range and 50% higher than the APV-8's 9,638K. Certifications: UL8750, CSA C22.2, BIS IS15885 (all models), EAC, BS EN/EN62368-1. 3.75KVac I/P-O/P. 50g, 144 pcs/carton. 2-year warranty. ⚠ Not for EU/CN LED lighting.

Product Images

Technical Specifications

Constant Current design. No OVP/OLP — SC only. Compliance voltage auto-adapts to LED string Vf. ±8% accuracy. BIS all.

Parameter	APC-8-250	APC-8-350	APC-8-500	APC-8-700
Rated Current	250mA	350mA	500mA	700mA
DC Voltage Range	16~32V	11~23V	8~16V	6~11V
Rated Power	8W	8.05W	8W	7.7W
No-Load Voltage	38V	29V	24V	17V
Current Accuracy	+/-8.0%	+/-8.0%	+/-8.0%	+/-8.0%
Efficiency	82.5%	81.5%	81%	80%

Input & Features (All Models)

Input / AC Current / Inrush	90~264Vac or 127~370Vdc \| 0.15A/230V, 0.3A/115V \| 70A/230V cold start
Leakage / Hold-up / Start-up	0.25mA/240V \| 20ms/230V \| 500ms/180ms@230V, 3000ms/150ms@115V
Protection	Short circuit only -- hiccup mode, auto-recovery. No OVP or OLP (CC driver inherently limits output)
Fly Leads	Brown(L)/Blue(N) 20AWG in, Red(+V)/Black(-V) 18AWG out, 150mm
Operating / Storage Temp	-15~+70C (derating) \| -40~+80C, 10~95% RH
Safety / IP / BIS	UL8750, CSA C22.2, BIS IS15885 (all models), EAC, EN62368-1 \| IP42 \| Class II
Isolation / EMC	3.75KVac \| EN55032 Class B, EN61000-3-2,-3 \| Light industrial Surge 2KV
MTBF / Size / Weight	14,511.7K hrs (Telcordia); 2,275.9K hrs (MIL-HDBK-217F, 25C) \| 60x30x23.5mm / 0.05kg / 144pcs / 7.6kg

Key Features

Constant Current -- Auto Voltage Adaptation
Pure CC regulator: set current at 250/350/500/700mA, driver automatically adjusts voltage within compliance range to match LED string Vf. No voltage setting, no trim pot -- just match your LED string to the compliance window.

14,511K hrs MTBF -- LED Driver Reliability Champion
Highest MTBF in MEAN WELL's budget LED driver range -- 50% above APV-8's 9,638K. With fewer components (no OVP/OLP circuit) and CC topology, the APC-8 is the most reliable 8W LED driver for always-on installations.

4 Fixed Currents -- 6~32V Coverage
250mA for high-voltage LED strings (16-32V, ~3-10 LEDs), 700mA for low-voltage high-brightness (6-11V, ~2-3 LEDs). One family covers every 8W CC LED application from indicator lamps to small floodlights.

Same 60mm Chassis as APV-8
Identical 60x30x23.5mm form factor, same fly leads, same IP42 plastic shell -- CV (APV) and CC (APC) can be mixed in the same product design with zero mechanical changes.

UL8750 + BIS All Models -- Global CC LED
LED-specific safety with BIS on every model, UL8750/CSA for North America -- the most certified 8W CC LED driver for global LED luminaire integration.

100% Burn-in + 2-Year Warranty
Every unit undergoes full-load burn-in with 14,511K MTBF -- the most reliable budget CC LED driver in its class.

Frequently Asked Questions

How is APC-8 different from APV-8?

APC-8 is constant-current (CC), APV-8 is constant-voltage (CV). APC regulates the output current (250/350/500/700mA) and lets voltage float within a compliance range -- ideal for series-connected LED strings. APV regulates output voltage (5/12/15/24V) and lets current vary -- ideal for LED strips with built-in resistors. APC has only SC protection (no OVP/OLP -- inherent to CC topology), higher MTBF (14,511K vs 9,638K), and slightly higher minimum temp (-15C vs -30C). Same 60mm chassis and certifications.

How do I choose the right current variant?

Match the APC-8's rated current to your LED string's rated forward current. Then verify the LED string's total forward voltage falls within the compliance voltage range: 250mA = 16~32V (3-10 series LEDs typical), 350mA = 11~23V (3-7 LEDs), 500mA = 8~16V (2-5 LEDs), 700mA = 6~11V (2-3 LEDs). If your LED string Vf is outside the range, the current will not regulate -- choose a different current variant.

Why does the 700mA model only deliver 7.7W?

At 700mA, the compliance range is 6~11V -- the maximum power is 11V x 0.7A = 7.7W. This is the trade-off of higher current: lower voltage range. The 350mA model reaches 8.05W (23V x 0.35A). Choose the current rating that best matches your LED string's operating point.

Why no OVP or OLP on APC-8?

In a constant-current driver, the output voltage is determined by the LED load, not regulated by the driver. If the LED string opens, the output voltage rises to the no-load voltage (17~38V) and stays there -- no overvoltage condition. If the load shorts, the SC hiccup protection activates. A CC topology inherently limits output power, making traditional OVP/OLP circuits unnecessary. This simpler design contributes to the APC-8's exceptional 14,511K hrs MTBF.
