MEAN WELL Power Supply APV-35 Series Constant Voltage LED Driver

Product Item : APV-35 series
Category：LED Driver
Wattage: 35W
Input Voltage: 90 ~ 264VAC or 127 ~ 370VDC
Output Current: 0 ~ 5A
Output Voltage: 5 ~ 36V
Product description：Meanwell APV-35 series is a 35W AC/DC constant voltage mode single output LED power supply.
INQUIRY EMAIL

APV-35 Series - 35W Constant Voltage LED Driver (Same Chassis as APV-25, 300VAC Surge, 160% OLP, 85% Eff)

84x57x29.5mm (Same as APV-25) | 90-264Vac | 300VAC Surge 5s | 110~160% OLP | 85% Eff | Class 2/LPS | IP42 | 5V incl. 36V | BIS All | <0.5W | 2-Year

✓ In Stock2-Year300VAC Surge160% OLP85% EffBIS All

				Key Performance at a Glance

						36W

						Max Power

						85%

						Max Efficiency

						160%

						OLP Ceiling

						5A

						Max Current (5V)

						300VAC

						Surge 5s

						180g

						Weight

Product Overview

The APV-35 series is a 1.4x power upgrade to APV-25 in the identical 84x57x29.5mm chassis. It retains all APV-25 innovations (300VAC surge, 36V, BIS all models, OVP restart) and adds 110~160% OLP (wider than APV-25's >105%) and 85% peak efficiency at 36V. The 5V model delivers 5A/25W -- a 43% current boost for pixel LED applications.

The APV-35 accepts 90~264Vac with 0.5A/230V, 0.75A/115V and 45A inrush. Five voltages: 5V (5A/25W), 12V (3A/36W), 15V (2.4A/36W), 24V (1.5A/36W), 36V (1A/36W). Efficiency: 76.5% to 85% (36V). Breaker: 6 B-curve / 10 C-curve per 16A. 180g. ⚠ Not for EU/CN LED lighting.

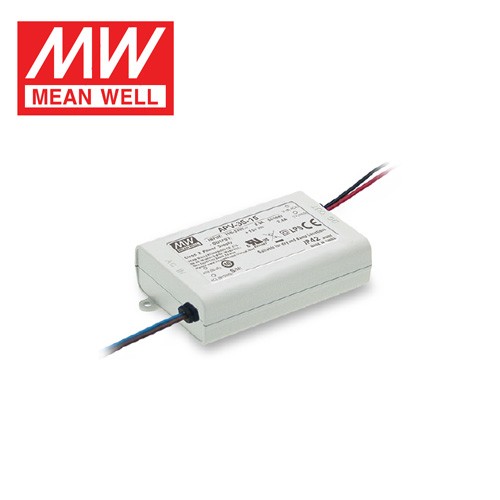

Product Images

Technical Specifications

Same chassis as APV-25, 1.4x power. 160% OLP. 300VAC surge. BIS all models.

Parameter	APV-35-5	APV-35-12	APV-35-15	APV-35-24	APV-35-36
DC Voltage	5V	12V	15V	24V	36V
Rated Current	5A	3A	2.4A	1.5A	1A
Rated Power	25W	36W	36W	36W	36W
Ripple / Efficiency	120mV/76.5%	150mV/83%	150mV/84%	180mV/84%	180mV/85%
OVP (Restart)	5.75~6.95V	13.8~16.2V	17.25~21V	27~32.4V	41.4~48.6V

Input & Features (All Models)

Input / Surge / AC Current	90~264Vac \| 300VAC/5s \| 0.5A/230V, 0.75A/115V \| 45A inrush
Breaker / Leakage / Hold-up	6 B-curve / 10 C-curve per 16A @ 230V \| 0.25mA \| 20ms/230V, 12ms/115V
OLP / OVP / SC	110~160% hiccup auto-recovery \| OVP shutdown restart \| SC auto-recovery
Safety / IP / Class 2 / BIS	UL8750, CSA C22.2, BIS IS15885 (all models), EAC, EN62368-1 \| IP42 \| Class 2/LPS/SELV
Isolation / EMC / Temp	3KVac \| EN55032 Class B, Harmonics Class A \| -30~+70C
MTBF / Size / Weight	5,489.6K hrs (Telcordia) \| 84x57x29.5mm / 0.18kg / 72pcs / 14kg

Key Features

36W in Same 84x57mm -- Drop-in APV-25 Upgrade
Identical chassis, terminals, and certifications as APV-25 with 1.4x power -- 5V hits 5A (43% more current), all others reach 36W. Zero mechanical rework for panel upgrades.

160% OLP -- APV's Highest Overload Ceiling
110~160% OLP range vs APV-25's >105% -- handles deeper LED strip inrush, motorized signage actuators, and capacitive start-up loads that would trip narrower OLP thresholds

85% Peak + 300VAC Surge + BIS All
Highest APV efficiency at 36V with grid-surge immunity and BIS on every model -- the most rugged, most certified, most efficient APV for commercial LED in surge-prone regions

Same 5 Voltages incl. 36V + OVP Restart
Full 5/12/15/24/36V lineup with 300VAC surge, automatic OVP recovery, and Class 2/LPS -- one family covers every CV LED project from pixel strips to cove lighting

100% Burn-in + 2-Year Warranty
MEAN WELL reliability with 300VAC toughness and 5,489K MTBF -- the definitive 35W CV LED driver for the most demanding commercial signage

Frequently Asked Questions

How does APV-35 compare to APV-25?

APV-35: 1.4x power (36W vs 25W) in identical 84x57mm chassis. Key upgrades: 160% OLP (vs >105%), 85% peak efficiency (vs 84%), 5V at 5A/25W (vs 3.5A/17.5W), higher AC current (0.5A vs 0.4A), heavier (180g vs 130g). Same 300VAC surge, BIS all models, OVP restart, 36V voltage. Choose APV-35 for more power and higher OLP ceiling in the same form factor.

Can I drop APV-35 into an APV-25 installation?

Yes, mechanically identical. Same 84x57x29.5mm housing, same fly leads. AC current is higher (0.5A/230V vs 0.4A) -- verify upstream breaker sizing. Output power is 1.4x -- ensure LED load is within new rating. Breaker capacity drops to 10 C-curve (vs 15).

What does 160% OLP mean in practice?

Unlike APV-25's simple >105% OLP, APV-35 specifies 110~160% range with hiccup mode. This wider, higher ceiling means the driver can handle deeper overload transients -- LED strip inrush currents, motorized signage mechanisms, and high-capacitance LED drivers downstream -- without tripping. The supply auto-recovers when load drops below the threshold.
