MEAN WELL Power Supply HLG-320H Series Constant Voltage Constant Current LED Driver

Product Item : HLG-320H series
Category：LED Driver
Wattage: 320W
Input Voltage: 90 ~ 305VAC or 127 ~ 431VDC
Rated Current: 5.95 ~ 22A
Output Voltage: 12 ~ 54V
Product description：HLG-320H series is a 320W AC/DC LED driver featuring the dual mode constant voltage and constant current output.
INQUIRY EMAIL

HLG-320H Series - 320W CV+CC LED Driver with Active PFC, IP67/IP65, 6 Version Types, 3-in-1/Timing Dimming, Type HL

In Stock 7-Year Warranty CV + CC 320W Max IP67 / IP65 Active PFC Type HL

				Key Performance at a Glance

						320W

						Max Power

						95%

						Peak Efficiency

						9

						Voltage Options

						6

						Version Types

						IP67

						Outdoor Rated

						+90C

						Max Tcase

Product Overview

The MEAN WELL HLG-320H series is a 320W AC-to-DC LED driver family featuring both constant-voltage (CV) and constant-current (CC) output modes. It is designed for LED street lights, high-bay fixtures, parking lighting, fishing lights, greenhouse lighting, and Class I Division 2 hazardous location luminaires.

It accepts universal 90~305VAC input (127~431VDC) and provides nine fixed output voltage options: 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, and 54V. With peak efficiency up to 95%, the driver uses a fanless design and operates at case temperatures from -40C to +90C under natural convection.

The metal enclosure carries IP67 or IP65 ratings depending on the version and is certified to UL8750 Type HL for Class I Division 2 hazardous location luminaires. Six function versions are available: Blank (fixed output, IP67), A (internal potentiometer adjustment, IP65), B (3-in-1 dimming, IP67), AB (pot adjustment + 3-in-1 dimming, IP65), C (terminal-block connection with pot adjustment), and D (timing dimming, IP67).

Protection includes OVP, OTP (auto-recovery when temperature drops), short-circuit hiccup-mode recovery, and over-current constant-current limiting. The driver withstands 4KV line-to-ground and 2KV line-to-line surge, complies with global lighting safety and EMC standards, and is backed by a 7-year warranty.

Product Images

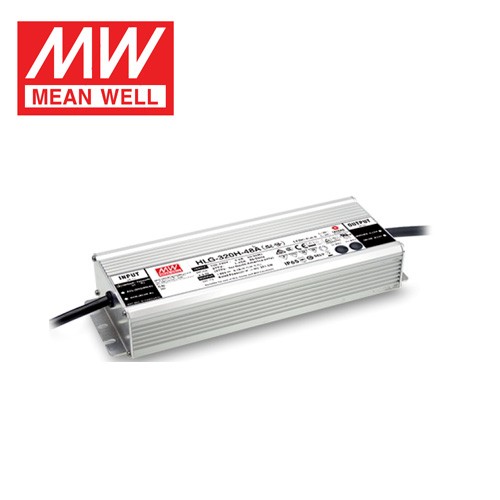

HLG-320H series LED driver product image

HLG-320H series LED driver wiring diagram

HLG-320H series LED driver dimension diagram

Technical Specifications

Output ratings for the HLG-320H series. All values measured at 230VAC, rated load, 25C unless noted.

Model	DC Voltage	Rated Current	Rated Power	CC Range	Ripple & Noise	Efficiency
HLG-320H-12	12V	22A	264W	6 ~ 12V	150mVp-p	91%
HLG-320H-15	15V	19A	285W	7.5 ~ 15V	150mVp-p	92.5%
HLG-320H-20	20V	15A	300W	10 ~ 20V	150mVp-p	93.5%
HLG-320H-24	24V	13.34A	320.16W	12 ~ 24V	150mVp-p	94%
HLG-320H-30	30V	10.7A	321W	15 ~ 30V	200mVp-p	94%
HLG-320H-36	36V	8.9A	320.4W	18 ~ 36V	250mVp-p	94.5%
HLG-320H-42	42V	7.65A	321.3W	21 ~ 42V	250mVp-p	95%
HLG-320H-48	48V	6.7A	321.6W	24 ~ 48V	250mVp-p	95%
HLG-320H-54	54V	5.95A	321.3W	27 ~ 54V	350mVp-p	95%

Version Types

Type	IP	Output Adjustment	Dimming	Best For
Blank	IP67	Fixed CV/CC	None	Simple fixed-output outdoor luminaires
A	IP65	Pot adjustable voltage/current	None	Luminaires needing output tuning
B	IP67	Fixed	3-in-1 (1-10Vdc / 10V PWM / resistor)	Smart outdoor street/flood lights
AB	IP65	Pot + Dimming	3-in-1 (1-10Vdc / 10V PWM / resistor)	Maximum flexibility indoor
C	Terminal block	Pot adjustable voltage/current	None	Cabinet or industrial panel installations
D	IP67	Timing dimming function	Built-in timing dimming	Street lighting with scheduled dimming

Input & Protection (All Versions)

Input Voltage Range	90~305VAC / 127~431VDC \| 47~63Hz
Active PFC / THD / AC Current	PF>=0.98/115V, >=0.95/230V at full load \| THD<20% (@load>=50%/115V,230V; @load>=75%/277V) \| 3.5A/115V, 1.65A/230V, 1.45A/277V
Inrush / Leakage / Breaker	Cold start 70A (50% Ipeak, twidth=1010us) / 230VAC per NEMA 410 \| 1 unit (B-type breaker) or 2 units (C-type breaker) on 16A breaker at 230VAC \| <0.75mA/277VAC
Start / Rise / Hold-up Time	2500ms, 80ms / 115VAC \| 600ms, 80ms / 230VAC \| Hold-up 15ms / 115VAC, 230VAC
Protection	OVP: shutdown/restart (model-specific trip range) \| OTP: shutdown/auto-recovery when temperature drops \| Short circuit: hiccup mode auto-recovery \| Over current: constant current limit auto-recovery \| Current accuracy: +/-5.0%
Surge Immunity	Line-to-ground: 4KV \| Line-to-line: 2KV \| Light industrial per EN61547
Operating / Storage Temp	Tcase=-40~+90C (refer to derating curve) \| Storage -40~+80C \| Temp coefficient +/-0.03%/C (0~50C)
Vibration / Humidity	10~500Hz, 5G, 12min/cycle, X/Y/Z 72min each \| 20~95% RH non-condensing
Isolation	3.75KVac I/P-O/P, 2KVac I/P-FG, 1.5KVac O/P-FG
EMC Emission / Immunity	EN55015, EN55032 Class B, EN61000-3-2 Class C (>50% load), EN61000-3-3, GB/T17743, GB17625.1, EAC \| Immunity: EN61000-4-2/3/4/5/6/8/11, EN61547, EN55024
Lifetime / MTBF / Size	>62,000 hours at Tcase<75C \| 1702.2K hrs (Telcordia SR-332) / 157.2K hrs (MIL-HDBK-217F, 25C) \| 252 x 90 x 43.8mm \| 1.88kg

Safety Standards & Certifications

Safety Standards	UL8750 (Type HL), CSA C22.2 No. 250.0-08, IEC/BS EN/AS/NZS 61347-1, IEC/BS EN/AS/NZS 61347-2-13 independent (except C-Type), GB/T19510.1/19510.213 (except C-Type), J61347-1/2-13 (except C-Type), EAC TP TC 004, KC61347-1/2-13 (except AB,C-Type), BIS IS15885 (A-Type) (NOTE 13) \| IP65 or IP67 (except C-Type)
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2.0KVAC \| O/P-FG: 1.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25C / 70% RH
EMC Emissions	BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (>50% load), BS EN/EN61000-3-3, GB/T17743, GB17625.1, EAC TP TC 020
EMC Immunity	BS EN/EN61000-4-2/3/4/5/6/8/11, BS EN/EN61547, BS EN/EN55024, EAC TP TC 020

Key Features

CV + CC Dual Output Mode -- Direct LED or DC/DC Drive
HLG-320H works as a constant-voltage power supply for LED modules with built-in drivers, or as a constant-current driver for direct LED string connection. One platform covers multiple luminaire designs.

9 Voltage Options -- 12V to 54V
Choose from 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, or 54V to match LED strip, module, COB, or DC/DC driver input requirements.

6 Version Types -- Blank / A / B / AB / C / D
Select fixed output (Blank), potentiometer tuning (A), 3-in-1 dimming (B), tuning plus dimming (AB), terminal-block adjustable (C), or timing dimming (D) to match your luminaire control strategy.

IP67 / IP65 Metal Housing + Type HL
Sealed aluminum housing with UL8750 Type HL certification for Class I Division 2 hazardous locations. 5G vibration, -40~+90C Tcase, for indoor and outdoor use.

Active PFC + Global Certifications
PF>=0.98 at 115V, >=0.95 at 230V and THD<20% keep installations compliant. UL/CSA/ENEC/EAC/KC/GB/JIS/BIS certifications enable worldwide deployment.

7-Year Warranty + 90~305VAC Input
Backed by a 7-year warranty. Universal 90~305VAC input covers 100V Japan, 120V North America, 230V Europe, and 277V US industrial circuits.

Frequently Asked Questions

What is the difference between HLG-320H and HLG-240H?

HLG-320H delivers up to 320W output compared to the 240W series rating of HLG-240H, with significantly higher output current on every voltage model. It shares the same CV+CC dual-mode design, IP67/IP65 sealing, Type HL certification, 6 version types, and 7-year warranty, but uses a larger 252 x 90 x 43.8mm enclosure.

Can HLG-320H be used for direct LED drive?

Yes. Each voltage model has a specified constant-current range. If the LED string forward voltage falls within that range, the driver operates in constant-current mode. It can also power LED modules with built-in constant-current drivers in constant-voltage mode.

Which version type should I choose?

Blank for simple fixed-output outdoor luminaires. A-Type for fixtures needing voltage/current tuning via internal pot. B-Type for smart lighting with 1-10V/PWM/resistor dimming. AB-Type for maximum flexibility with both tuning and dimming. C-Type for terminal-block wiring in cabinets or industrial panels. D-Type for timing dimming functions (contact MEAN WELL for details).

What IP rating do I get with each version?

Blank, B, and D versions are IP67. A and AB versions are IP65. C-Type uses terminal-block connections and is intended for cabinet or indoor industrial applications; refer to the datasheet for installation requirements. A/AB types require internal use for Type HL applications.

Which HLG-320H models have BIS IS15885 certification?

Per the datasheet note 13, BIS IS15885 applies to the A-Type. If BIS is mandatory for your market, confirm the exact orderable suffix with your MEAN WELL distributor.
