MEAN WELL Power Supply HLG-480H Series Constant Voltage Constant Current LED Driver

Product Item : HLG-480H series
Category：LED Driver
Wattage: 480W
Input Voltage: 90 ~ 305VAC or 127 ~ 431VDC
Rated Current: 8.9 ~ 20A
Output Voltage: 24 ~ 54V
Product description：HLG-480H series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constant current output.
INQUIRY EMAIL

HLG-480H Series - 480W CV+CC LED Driver with Active PFC, IP67/IP65, 5 Version Types, 3-in-1/Timing Dimming, Type HL

In Stock 7-Year Warranty CV + CC 480W Max IP67 / IP65 Active PFC Type HL

				Key Performance at a Glance

						480W

						Max Power

						95.5%

						Peak Efficiency

						6

						Voltage Options

						5

						Version Types

						IP67

						Outdoor Rated

						+90C

						Max Tcase

Product Overview

The MEAN WELL HLG-480H series is a 480W AC-to-DC LED driver family featuring both constant-voltage (CV) and constant-current (CC) output modes. It is designed for LED port lighting, greenhouse lighting, stadium lighting, mining lighting, street lights, high-bay fixtures, and Class I Division 2 hazardous location luminaires.

It accepts universal 90~305VAC input (127~431VDC) and provides six fixed output voltage options: 24V, 30V, 36V, 42V, 48V, and 54V. With peak efficiency up to 95.5%, the driver uses a fanless design and operates at case temperatures from -40C to +90C under natural convection.

The metal enclosure carries IP67 or IP65 ratings depending on the version and is certified to UL8750 Type HL for Class I Division 2 hazardous location luminaires. Five function versions are available: Blank (fixed output, IP67), A (internal potentiometer adjustment, IP65), B (3-in-1 dimming, IP67), AB (pot adjustment + 3-in-1 dimming, IP65), and Dx (timing dimming, IP67).

Protection includes OVP, OTP (auto-recovery when temperature drops), short-circuit constant-current recovery, and over-current constant-current limiting. The driver withstands 4KV line-to-ground and 2KV line-to-line surge, complies with global lighting safety and EMC standards, and is backed by a 7-year warranty.

Product Images

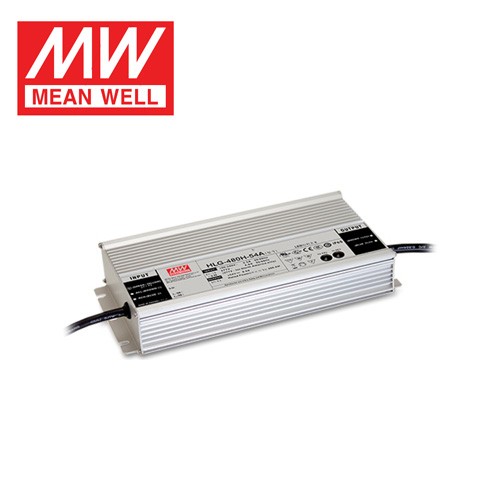

HLG-480H series LED driver product image

HLG-480H series LED driver wiring diagram

HLG-480H series LED driver dimension diagram

Technical Specifications

Output ratings for the HLG-480H series. All values measured at 230VAC, rated load, 25C unless noted.

Model	DC Voltage	Rated Current	Rated Power	CC Range	Ripple & Noise	Efficiency
HLG-480H-24	24V	20A	480W	12 ~ 24V	200mVp-p	94.5%
HLG-480H-30	30V	16A	480W	15 ~ 30V	200mVp-p	95%
HLG-480H-36	36V	13.3A	478.8W	18 ~ 36V	250mVp-p	95.5%
HLG-480H-42	42V	11.4A	478.8W	21 ~ 42V	250mVp-p	95.5%
HLG-480H-48	48V	10A	480W	24 ~ 48V	250mVp-p	95%
HLG-480H-54	54V	8.9A	480.6W	27 ~ 54V	350mVp-p	95%

Version Types

Type	IP	Output Adjustment	Dimming	Best For
Blank	IP67	Fixed CV/CC	None	Simple fixed-output outdoor luminaires
A	IP65	Pot adjustable voltage/current	None	Luminaires needing output tuning
B	IP67	Fixed	3-in-1 (0-10Vdc / 10V PWM / resistor)	Smart outdoor street/flood/high-bay lights
AB	IP65	Pot + Dimming	3-in-1 (0-10Vdc / 10V PWM / resistor)	Maximum flexibility indoor
Dx	IP67	Timing dimming function	Built-in timing dimming	Street lighting with scheduled dimming

Input & Protection (All Versions)

Input Voltage Range	90~305VAC / 127~431VDC \| 47~63Hz
Active PFC / THD / AC Current	PF>=0.98/115V, >=0.97/230V, >=0.95/277V at full load \| THD<20% (@load>=40%/115VAC,230VAC,277VAC) \| 5A/115V, 2.45A/230V, 2A/277V
Inrush / Leakage / Breaker	Cold start 35A (50% Ipeak, twidth=1800us) / 230VAC per NEMA 410 \| 2 units (B-type breaker) or 3 units (C-type breaker) on 16A breaker at 230VAC \| <0.75mA/277VAC
Start / Rise / Hold-up Time	500ms, 80ms / 115VAC/230VAC \| Hold-up 16ms / 115VAC, 230VAC
Protection	OVP: shutdown/restart (model-specific trip range) \| OTP: shutdown/auto-recovery when temperature drops \| Short circuit: constant current limit auto-recovery \| Over current: constant current limit auto-recovery \| Current accuracy: +/-5.0%
Surge Immunity	Line-to-ground: 4KV \| Line-to-line: 2KV \| Light industrial per EN61547
Operating / Storage Temp	Tcase=-40~+90C (refer to derating curve) \| Storage -40~+80C \| Temp coefficient +/-0.02%/C (0~60C)
Vibration / Humidity	10~500Hz, 5G, 12min/cycle, X/Y/Z 72min each \| 20~95% RH non-condensing
Isolation	3.75KVac I/P-O/P, 2KVac I/P-FG, 1.5KVac O/P-FG
EMC Emission / Immunity	EN55015, KC KN15, J55015(H29) (Blank,A only), EN61000-3-2 Class C (>=50% load), EN61000-3-3, GB/T17743, GB17625.1, EAC TP TC 020 \| Immunity: EN61000-4-2/3/4/5/6/8/11, EN61547, EAC TP TC 020
Lifetime / MTBF / Size	>62,000 hours at Tcase<75C \| 1185.9K hrs (Telcordia SR-332) / 95.4K hrs (MIL-HDBK-217F, 25C) \| 262 x 125 x 43.8mm \| 2.8kg

Safety Standards & Certifications

Safety Standards	UL8750 (Type HL), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, GB/T19510.1, GB/T19510.213, EAC TP TC 004, AS/NZS IEC 61347.2.13:2013, AS/NZS 61347.1:2016, KC61347-1/2-13 (except AB,Dx), J61347-1(H29)/2-13(H29) (except Dx) \| IP65 or IP67
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2.0KVAC \| O/P-FG: 1.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25C / 70% RH
EMC Emissions	BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=50% load), BS EN/EN61000-3-3, GB/T17743, GB17625.1, EAC TP TC 020
EMC Immunity	BS EN/EN61000-4-2/3/4/5/6/8/11, BS EN/EN61547, EAC TP TC 020

Key Features

CV + CC Dual Output Mode -- Direct LED or DC/DC Drive
HLG-480H works as a constant-voltage power supply for LED modules with built-in drivers, or as a constant-current driver for direct LED string connection. One platform covers high-power luminaire designs.

6 Voltage Options -- 24V to 54V
Choose from 24V, 30V, 36V, 42V, 48V, or 54V to match LED module, COB, or DC/DC driver input requirements.

5 Version Types -- Blank / A / B / AB / Dx
Select fixed output (Blank), potentiometer tuning (A), 3-in-1 dimming (B), tuning plus dimming (AB), or smart timing dimming (Dx) to match your luminaire control strategy.

IP67 / IP65 Metal Housing + Type HL
Sealed aluminum housing with UL8750 Type HL certification for Class I Division 2 hazardous locations. 5G vibration, -40~+90C Tcase, for indoor and outdoor use.

Active PFC + Global Certifications
PF>=0.98 at 115V, >=0.95 at 230V and THD<20% keep installations compliant. UL/CSA/ENEC/EAC/KC/GB/JIS certifications enable worldwide deployment.

7-Year Warranty + 90~305VAC Input
Backed by a 7-year warranty. Universal 90~305VAC input covers 100V Japan, 120V North America, 230V Europe, and 277V US industrial circuits.

Frequently Asked Questions

What is the difference between HLG-480H and HLG-320H?

HLG-480H delivers up to 480W output compared to the 320W rating of HLG-320H, with higher output current on each voltage model. It shares the same CV+CC dual-mode design, IP67/IP65 sealing, Type HL certification, and 7-year warranty, but uses a larger 262 x 125 x 43.8mm enclosure and offers 24V-54V voltage options.

Can HLG-480H be used for direct LED drive?

Yes. Each voltage model has a specified constant-current range. If the LED string forward voltage falls within that range, the driver operates in constant-current mode. It can also power LED modules with built-in constant-current drivers in constant-voltage mode.

Which version type should I choose?

Blank for simple fixed-output outdoor luminaires. A-Type for fixtures needing voltage/current tuning via internal pot. B-Type for smart lighting with 0-10V/PWM/resistor dimming. AB-Type for maximum flexibility with both tuning and dimming. Dx-Type for timing dimming functions (contact MEAN WELL for details).

What IP rating do I get with each version?

Blank, B, and Dx versions are IP67. A and AB versions are IP65. A/AB types require internal use for Type HL applications. Refer to the datasheet for installation requirements.

Does HLG-480H support high ambient temperatures?

Yes. The driver operates at case temperatures from -40C to +90C with natural convection. For lifetime, MEAN WELL specifies >62,000 hours when Tcase remains below 75C.
