MEAN WELL Power Supply HLG-480H-C Series Constant Current LED Driver

Product Item : HLG-480H-C series
Category：LED Driver
Wattage: 480W
Input Voltage: 90 ~ 305VAC or 127 ~ 431VDC
Rated Current: 1400 ~ 3500mA
Constant Current Region Note.2: 68 ~ 343V
Product description：HLG-480H-C series is a 480W AC/DC LED driver featuring the constant current mode and high voltage output.
INQUIRY EMAIL

HLG-480H-C Series - 480W Constant Current LED Driver with Active PFC, Type HL, IP67/IP65, 0-10V Dimming

In Stock 7-Year Warranty Constant Current 480W Max IP67 / IP65 Active PFC Type HL 0-10V Dimming Ambient Adaptive

				Key Performance at a Glance

						480W

						Max Power

						95%

						Peak Efficiency

						5

						Current Options

						4

						Version Types

						IP67

						Outdoor Rated

						+90C

						Max Tcase

Product Overview

The MEAN WELL HLG-480H-C series is a 480W AC-to-DC constant-current (CC) LED driver family with Type HL certification for Class I, Division 2 hazardous location lighting. It is designed for LED harbor lighting, greenhouse lighting, stadium lighting, mining lighting, and high-power outdoor luminaires.

It accepts universal 90~305VAC input (127~431VDC) and provides five fixed output current options: 1400mA, 1750mA, 2100mA, 2800mA and 3500mA. With peak efficiency up to 95%, the driver uses a fanless design and operates at case temperatures from -40C to +90C under free air convection.

The metal enclosure carries IP67 or IP65 ratings depending on the version. Four function versions are available: A (output current adjustable via built-in potentiometer, IP65), B (3-in-1 dimming, IP67), AB (current adjustment + 3-in-1 dimming, IP65), and Dx (smart timer dimming functions, IP67, customer-specific - contact MEAN WELL for details). All versions feature MEAN WELL's ambient adaptive capability for reliable operation in a wide range of installation environments.

Protection includes OVP (shutdown with re-power recovery), OTP (automatic recovery after temperature drops), and short-circuit constant-current limiting with automatic recovery. The driver complies with global lighting safety and EMC standards including UL8750 Type HL, CSA, IEC/AS/NZS/GB, and EAC, and is backed by a 7-year warranty. Note: a switch must be installed between the mains and the LED driver to meet the latest ErP regulations.

Product Images

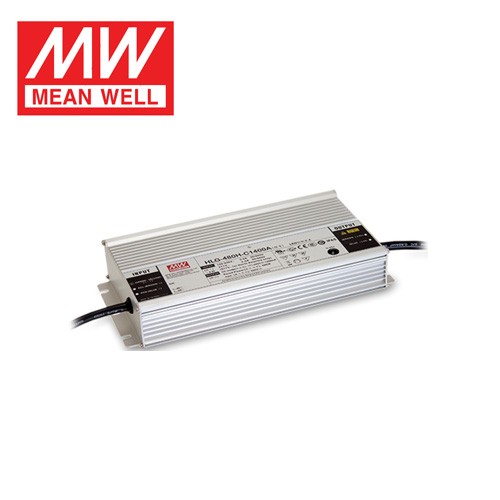

HLG-480H-C series LED driver product image

HLG-480H-C series LED driver wiring diagram

HLG-480H-C series LED driver dimension diagram

Technical Specifications

Output ratings for the HLG-480H-C series. All values measured at 230VAC, rated current, 25C unless noted.

Model	Rated Current	Rated Power	CC Region	Open Circuit Max	Current Adj. Range (A/AB)	Efficiency
HLG-480H-C1400	1400mA	480W	171 ~ 343V	420V	700 ~ 1400mA	95%
HLG-480H-C1750	1750mA	480W	137 ~ 274V	340V	875 ~ 1750mA	95%
HLG-480H-C2100	2100mA	481W	114 ~ 229V	280V	1050 ~ 2100mA	95%
HLG-480H-C2800	2800mA	479W	85 ~ 171V	210V	1400 ~ 2800mA	95%
HLG-480H-C3500	3500mA	480W	68 ~ 137V	170V	1750 ~ 3500mA	95%

Version Types

Type	IP	Output Adjustment	Dimming	Availability
A	IP65	Current adjustable via built-in potentiometer	None	In Stock
B	IP67	Fixed	3-in-1 (0~10Vdc / 10V PWM / resistor)	In Stock
AB	IP65	Pot + Dimming	3-in-1 (0~10Vdc / 10V PWM / resistor)	In Stock
Dx	IP67	Smart timer dimming per customer request	Built-in timer dimming	By request (custom)

Input & Protection (All Versions)

Input Voltage Range	90~305VAC / 127~431VDC \| 47~63Hz
Active PFC / THD / AC Current	PF>=0.98/115V, >=0.97/230V, >=0.95/277V at full load \| THD<20% (@load>=40%/115VAC,230VAC,277VAC) \| 5A/115V, 2.45A/230V, 2A/277V
Inrush / Leakage / Breaker	Cold start 35A (twidth=1800us measured at 50% Ipeak) / 230VAC per NEMA 410 \| 2 units (B-type breaker) or 3 units (C-type breaker) on 16A breaker at 230VAC \| <0.75mA/277VAC
Set Up Time	500ms / 115VAC, 500ms / 230VAC (first cold start)
Protection	OVP: shutdown with re-power on recovery \| OTP: shutdown, automatic recovery after temperature drops \| Short circuit: constant-current limiting, auto-recovery after fault removed \| Current tolerance: ±5% \| Current ripple: 5.0% max. @ rated current
Surge Immunity	Line-to-earth: 4KV (heavy industry) \| Line-to-line: 2KV
Operating / Storage Temp	Tcase=-40~+90C (refer to derating curve) \| Storage -40~+80C \| Temp coefficient ±0.02%/C (0~60C)
Vibration / Humidity	10~500Hz, 5G, 12min/cycle, X/Y/Z 72min each \| 20~95% RH non-condensing
Isolation	3.75KVac I/P-O/P, 2KVac I/P-FG, 1.5KVac O/P-FG
EMC Emission / Immunity	EN55015, EN61000-3-2 Class C (@load>=50%); EN61000-3-3, GB/T17743, GB17625.1, EAC TP TC 020 \| Immunity: EN61000-4-2/3/4/5/6/8/11, EN61547, heavy industry surge, EAC TP TC 020
Lifetime / MTBF / Size	>62,000 hours at Tcase<75C \| 1350.9K hrs (Telcordia SR-332) / 110.5K hrs (MIL-HDBK-217F, 25C) \| 262 x 125 x 43.8mm \| 2.8Kg

Safety Standards & Certifications

Safety Standards	UL8750 (Type HL), CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384, GB/T19510.1, GB/T19510.213, EAC TP TC 004 \| IP65 or IP67
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2.0KVAC \| O/P-FG: 1.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25C / 70% RH
EMC Emissions	BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>=50%), BS EN/EN61000-3-3, GB/T17743, GB17625.1, EAC TP TC 020
EMC Immunity	BS EN/EN61000-4-2/3/4/5/6/8/11, BS EN/EN61547, heavy industry level (surge 4KV line-earth, 2KV line-line), EAC TP TC 020

Key Features

Constant Current Output -- Direct LED Drive
HLG-480H-C is a pure constant-current driver designed to directly drive LED strings without additional constant-current circuitry. Choose 1400mA, 1750mA, 2100mA, 2800mA or 3500mA to match your LED module current rating.

Five Current Options -- 1400mA to 3500mA
C1400 covers 171~343V; C1750 covers 137~274V; C2100 covers 114~229V; C2800 covers 85~171V; C3500 covers 68~137V. Select the current and version that matches your LED string configuration.

4 Version Types -- A / B / AB / Dx
A-Type offers current adjustment via internal pot; B-Type adds 0-10V/PWM/resistor dimming; AB-Type combines both; Dx provides smart timer dimming functions (contact MEAN WELL for custom programs).

Type HL + IP67/IP65 Metal Housing
UL8750 Type HL certification supports Class I, Division 2 hazardous location lighting. Sealed metal enclosure supports both indoor and outdoor installations. 5G vibration resistance and -40~+90C Tcase operation.

Ambient Adaptive + Active PFC
Innovative ambient adaptive capability lets the driver detect and auto-adjust output to 120%Vo/80%Io before settling into the constant-current region. PF>=0.98 at 115V and THD<20% keep installations compliant.

7-Year Warranty + 90~305VAC Input
Backed by a 7-year warranty. Universal 90~305VAC input covers 100V Japan, 120V North America, 230V Europe, and 277V US industrial circuits.

Frequently Asked Questions

What is the difference between HLG-480H-C1400, C1750, C2100, C2800 and C3500?

The model number indicates the rated constant current: C1400=1400mA, C1750=1750mA, C2100=2100mA, C2800=2800mA, C3500=3500mA. Each model has a different output voltage region matched to the current. C1400 covers 171~343V; C1750 covers 137~274V; C2100 covers 114~229V; C2800 covers 85~171V; C3500 covers 68~137V. All share the same 480W-class enclosure, protection, and certification set.

Is HLG-480H-C a constant-voltage driver?

No. HLG-480H-C is a constant-current LED driver. It maintains a fixed output current while the output voltage varies within the specified constant-current region based on the LED load. Do not use it to power LED modules that require a constant-voltage supply.

What is the ambient adaptive function?

The driver can detect operating conditions and auto-adjust output to 120%Vo/80%Io when the luminaire reaches stable operation, then enters the normal constant-current region. This helps high-power fixtures start reliably in varying temperatures and environments.

Which version type should I choose?

A-Type for fixtures needing current tuning via internal potentiometer. B-Type for smart lighting with 0-10V/PWM/resistor dimming. AB-Type for both tuning and dimming. Dx types for smart timer dimming functions - contact MEAN WELL because these are customer-specific programs.

What IP rating do I get with each version?

B and Dx versions are IP67. A and AB versions are IP65. Select IP67 for direct outdoor exposure and IP65 for protected outdoor or indoor applications.

What does Type HL certification mean?

HLG-480H-C is listed as UL8750 Type HL, which means it is suitable for use in Class I, Division 2 hazardous location lighting fixtures when installed according to the applicable codes and manufacturer instructions.

Related Products

Explore individual current models in the HLG-480H-C family.

Available Models

HLG-480H-C1400 - 1400mA / 480W / CC region 171 ~ 343V | A/B/AB/Dx
HLG-480H-C1750 - 1750mA / 480W / CC region 137 ~ 274V | A/B/AB/Dx
HLG-480H-C2100 - 2100mA / 481W / CC region 114 ~ 229V | A/B/AB/Dx
HLG-480H-C2800 - 2800mA / 479W / CC region 85 ~ 171V | A/B/AB/Dx
HLG-480H-C3500 - 3500mA / 480W / CC region 68 ~ 137V | A/B/AB/Dx
