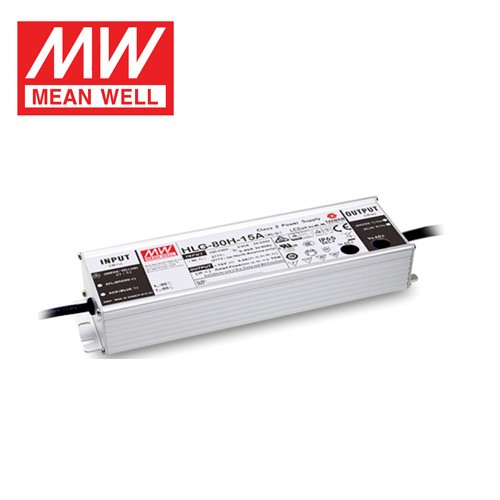

MEAN WELL Power Supply HLG-80H Series Constant Voltage Constant Current LED Driver

Product Item : HLG-80H series
Category：LED Driver
Wattage: 80W
Input Voltage: 90 ~ 305VAC or 127 ~ 431VDC
Rated Current: 1.5 ~ 5A
Output Voltage: 12 ~ 54V
Product description：HLG-80H series is a 80W AC/DC LED driver featuring the dual mode constant voltage and constant current output.
INQUIRY EMAIL

HLG-80H Series - 80W CV+CC LED Driver with Active PFC, IP67/IP65/IP66, 6 Version Types, 3-in-1/Timing Dimming, Type HL

In Stock 7-Year Warranty CV + CC 80W Max IP67 / IP65 / IP66 Active PFC Type HL

				Key Performance at a Glance

						80W

						Max Power

						91%

						Peak Efficiency

						9

						Voltage Options

						6

						Version Types

						IP67

						Outdoor Rated

						305V

						Max Input

Product Overview

The MEAN WELL HLG-80H series is an 80W AC-to-DC LED driver family featuring both constant-voltage (CV) and constant-current (CC) output modes. It is designed for LED street lights, high-bay fixtures, parking lighting, fishing lights, and greenhouse lighting.

It accepts universal 90~305VAC input (127~431VDC) and provides nine fixed output voltage options: 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, and 54V. With peak efficiency up to 91%, the driver uses a fanless design and operates at case temperatures from -40C to +80C under natural convection.

The metal enclosure carries IP67, IP65, or IP66 ratings depending on the version and is certified to UL8750 Type HL for Class I Division 2 hazardous location luminaires. Six function versions are available: Blank (fixed output, IP67), A (internal potentiometer adjustment, IP65), B (3-in-1 dimming, IP67), AB (pot adjustment + 3-in-1 dimming, IP65), BL (B-Type with junction box, IP66, UL8750 LISTED), and D (timing dimming, IP67).

Protection includes OVP, OTP, short-circuit hiccup, and over-current constant-current limiting. The driver withstands 4KV line-to-ground and 2KV line-to-line surge, complies with global lighting safety and EMC standards, and is backed by a 7-year warranty.

Product Images

HLG-80H series LED driver wiring diagram

HLG-80H series LED driver dimension diagram

Technical Specifications

Output ratings for the HLG-80H series. All values measured at 230VAC, rated load, 25C unless noted.

Model	DC Voltage	Rated Current	Rated Power	CC Range	Ripple & Noise	Efficiency	BIS
HLG-80H-12	12V	5A	60W	7.2 ~ 12V	150mVp-p	88%	No
HLG-80H-15	15V	5A	75W	9 ~ 15V	150mVp-p	89%	No
HLG-80H-20	20V	4A	80W	12 ~ 20V	150mVp-p	90%	No
HLG-80H-24	24V	3.4A	81.6W	14.4 ~ 24V	150mVp-p	90.5%	No
HLG-80H-30	30V	2.7A	81W	18 ~ 30V	200mVp-p	91%	No
HLG-80H-36	36V	2.3A	82.8W	21.6 ~ 36V	200mVp-p	91%	BIS (A-type)
HLG-80H-42	42V	1.95A	81.9W	25.2 ~ 42V	200mVp-p	91%	No
HLG-80H-48	48V	1.7A	81.6W	28.8 ~ 48V	200mVp-p	91%	No
HLG-80H-54	54V	1.5A	81W	32.4 ~ 54V	200mVp-p	91%	BIS (A-type)

Version Types

Type	IP	Output Adjustment	Dimming	Best For
Blank	IP67	Fixed CV/CC	None	Simple fixed-output outdoor luminaires
A	IP65	Pot adjustable voltage/current	None	Luminaires needing output tuning
B	IP67	Fixed	3-in-1 (1-10Vdc / 10V PWM / resistor)	Smart outdoor street/flood lights
AB	IP65	Pot + Dimming	3-in-1 (1-10Vdc / 10V PWM / resistor)	Maximum flexibility indoor
BL	IP66	Fixed (B-Type with junction box)	3-in-1 dimming	Installations requiring junction box + UL8750 LISTED
D	IP67	Timing dimming function	Built-in timing dimming	Street lighting with scheduled dimming

Input & Protection (All Versions)

Input Voltage Range	90~305VAC / 127~431VDC \| 47~63Hz
Active PFC / THD / AC Current	PF>=0.96/115V, >=0.96/230V, >=0.94/277V at full load \| THD<20% (@load>=60%/115V,230V; @load>=75%/277V) \| 0.85A/115V, 0.425A/230V, 0.4A/277V
Inrush / Leakage / Breaker	Cold start 70A (50% Ipeak, twidth=485us) / 230VAC per NEMA 410 \| 3 units (B-type breaker) or 6 units (C-type breaker) on 16A breaker at 230VAC \| <0.75mA/277VAC
Standby / No-Load	Contact MEAN WELL for standby specifications
Protection	OVP: shutdown/restart (model-specific trip range) \| OTP: shutdown/restart \| Short circuit: hiccup auto-recovery \| Over current: constant current limit auto-recovery \| Current accuracy: +/-5.0%
Surge Immunity	Line-to-ground: 4KV \| Line-to-line: 2KV \| Light industrial per EN61547
Operating / Storage Temp	Tcase=-40~+80C (refer to derating curve) \| Storage -40~+80C \| Temp coefficient +/-0.03%/C (0~60C)
Vibration / Humidity	10~500Hz, 5G, 12min/cycle, X/Y/Z 72min each \| 20~95% RH non-condensing
Isolation	3.75KVac I/P-O/P, 2KVac I/P-FG, 1.5KVac O/P-FG
EMC Emission / Immunity	EN55015 Class C (>60% load), EN61000-3-2/3-3, GB/T17743, GB17625.1, KS C 9815, KS C 9547 (except BL-type), EAC \| Immunity: EN61000-4-2/3/4/5/6/8/11, EN61547, EN55024
Lifetime / MTBF / Size	>62,000 hours at Tcase<75C \| 2992.9K hrs (Telcordia SR-332) / 289.1K hrs (MIL-HDBK-217F, 25C) \| 195.6 x 61.5 x 38.8mm \| 0.84kg \| 16pcs/14.4Kg/0.54CUFT

Safety Standards & Certifications

Safety Standards	UL8750 (Type HL), CSA C22.2 No. 250.0-08, IEC/BS EN/AS/NZS 61347-1/2-13 independent, UL8750 LISTED for HLG-80H-BL, GB/T19510.1/19510.213, EAC TP TC 004, BIS IS15885 (only 36A and 54A models), KC61347-1/2-13 (except AB, BL-type), J61347-1/2-13 (except BL-type) \| IP65, IP66, or IP67
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2.0KVAC \| O/P-FG: 1.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25C / 70% RH
EMC Emissions	BS EN/EN55015, BS EN/EN61000-3-2 Class C (>60% load), BS EN/EN61000-3-3, GB/T17743, GB17625.1, KS C 9815, KS C 9547 (except BL-type), EAC TP TC 020
EMC Immunity	BS EN/EN61000-4-2/3/4/5/6/8/11, BS EN/EN61547, BS EN/EN55024, KS C 9815, KS C 9547 (except BL-type), EAC TP TC 020

Key Features

CV + CC Dual Output Mode -- Direct LED or DC/DC Drive
HLG-80H works as a constant-voltage power supply for LED modules with built-in drivers, or as a constant-current driver for direct LED string connection. One platform covers multiple luminaire designs.

9 Voltage Options -- 12V to 54V
Choose from 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, or 54V to match LED strip, module, COB, or DC/DC driver input requirements.

6 Version Types -- Blank / A / B / AB / BL / D
Select fixed output (Blank), potentiometer tuning (A), 3-in-1 dimming (B), tuning plus dimming (AB), junction-box listed (BL), or timing dimming (D) to match your luminaire control strategy.

IP67 / IP65 / IP66 Metal Housing + Type HL
Sealed aluminum housing with UL8750 Type HL certification for Class I Division 2 hazardous locations. 5G vibration, -40~+80C Tcase, for indoor and outdoor use.

Active PFC + Global Certifications
PF>=0.96 at 115V/230V, >=0.94 at 277V and THD<20% keep installations compliant. UL/CSA/ENEC/EAC/KC/GB/BIS/JIS certifications enable worldwide deployment.

7-Year Warranty + 90~305VAC Input
Backed by a 7-year warranty. Universal 90~305VAC input covers 100V Japan, 120V North America, 230V Europe, and 277V US industrial circuits.

Frequently Asked Questions

What is the difference between HLG-80H and HLG-60H?

HLG-80H delivers 80W output compared to 60W on HLG-60H, and adds a 12V model plus a BL version with a junction box and UL8750 LISTED certification. Both share the same CV+CC dual-mode design, IP67/IP65 sealing, Type HL certification, and 7-year warranty. HLG-80H is suitable for brighter or larger luminaires.

Can HLG-80H be used for direct LED drive?

Yes. Each voltage model has a specified constant-current range (e.g., 14.4~24V for HLG-80H-24). If the LED string forward voltage falls within that range, the driver operates in constant-current mode. It can also power LED modules with built-in constant-current drivers in constant-voltage mode.

Which version type should I choose?

Blank for simple fixed-output outdoor luminaires. A-Type for fixtures needing voltage/current tuning via internal pot. B-Type for smart lighting with 1-10V/PWM/resistor dimming. AB-Type for maximum flexibility with both tuning and dimming. BL-Type for installations requiring a junction box and UL8750 LISTED certification. D-Type for timing dimming functions (contact MEAN WELL for details).

What IP rating do I get with each version?

Blank, B, and D versions are IP67. A and AB versions are IP65. BL version is IP66 with a junction box. A/AB types require internal use for Type HL applications.

Related Products

Explore individual voltage models in the HLG-80H family.

Available Models

HLG-80H-12 - 12V / 5A / 60W / CC range 7.2 ~ 12V | Blank/A/B/AB/BL/D
HLG-80H-15 - 15V / 5A / 75W / CC range 9 ~ 15V | Blank/A/B/AB/BL/D
HLG-80H-20 - 20V / 4A / 80W / CC range 12 ~ 20V | Blank/A/B/AB/BL/D
HLG-80H-24 - 24V / 3.4A / 81.6W / CC range 14.4 ~ 24V | Blank/A/B/AB/BL/D
HLG-80H-30 - 30V / 2.7A / 81W / CC range 18 ~ 30V | Blank/A/B/AB/BL/D
HLG-80H-36 - 36V / 2.3A / 82.8W / CC range 21.6 ~ 36V | Blank/A/B/AB/BL/D | BIS available (A-type)
HLG-80H-42 - 42V / 1.95A / 81.9W / CC range 25.2 ~ 42V | Blank/A/B/AB/BL/D
HLG-80H-48 - 48V / 1.7A / 81.6W / CC range 28.8 ~ 48V | Blank/A/B/AB/BL/D
HLG-80H-54 - 54V / 1.5A / 81W / CC range 32.4 ~ 54V | Blank/A/B/AB/BL/D | BIS available (A-type)
