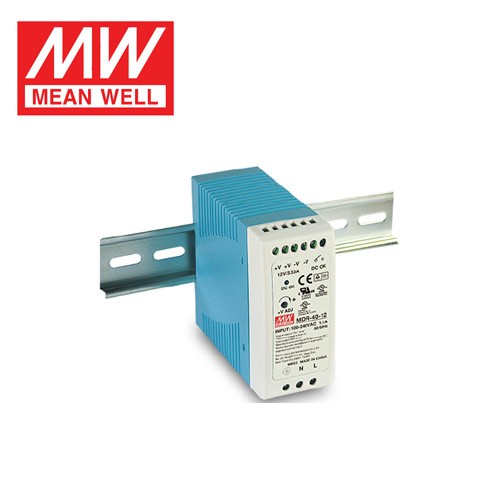

MEAN WELL Power Supply MDR-40 Series Single Output DIN Rail Mounted

Product Item : MDR-40 series
Category：DIN Rail Power Supplies
Wattage: 40W
Input Voltage: 85 ~ 264VAC or 120 ~ 370VDC
Output Current: 0 ~ 6A
Output Voltage: 5 ~ 48V
Product description：he Mean Well MDR-40 is a compact 40W DIN-rail power supply with universal AC input for industrial control. It features high efficiency and built-in protection in an ultra-slim design.
INQUIRY EMAIL

MDR-40 Series - 40W DIN Rail Power Supply (40mm, DC OK Relay, HazLoc T4, Heavy Industrial)

✓ In Stock3-YearDC OK RelayHazLoc T4Heavy Industrial88% Eff

				Key Performance at a Glance

						40.8W

						Max Power (24V)

						88%

						Max Efficiency

						40mm

						Width

						Relay

						DC OK Contact

						50ms

						Hold-up (230V)

						HazLoc

						Class I Div 2 T4

Product Overview

The MDR-40 series is a platform shift from the 22.5mm MDR-10/20 to a 40mm 40W form factor with three major upgrades: (1) DC OK relay dry contact (30V/1A) replaces the active sourcing signal; (2) Class I Division 2 Hazardous Locations T4 certification; and (3) EN61000-6-2 heavy industrial immunity vs light industrial on 10/20. The voltage lineup changes too: 15V is dropped; 48V is added.

The MDR-40 accepts universal 85~264Vac input (120~370Vdc) with 1.1A/115V, 0.7A/230V AC current and 30A/115V, 60A/230V inrush. Four voltages: 5V (6A/30W), 12V (3.33A/40W), 24V (1.7A/40.8W), and 48V (0.83A/39.8W). The 5V model is rated at 30W due to thermal limits. Wide voltage adjust ranges: 5~6V, 12~15V, 24~30V, and 48~56V. Efficiency ranges from 78% at 5V to 88% at 24V/48V. Hold-up is 50ms at 230Vac. No-load is <0.75W.

The DC OK relay is the headline upgrade: a dry contact (normally closed when output is healthy, opens on fault) rated 30V/1A. This is fundamentally more useful for PLC/SCADA integration than the MDR-10/20's active sourcing signal -- it directly feeds a PLC discrete input with no level-matching circuit. The overload protection remains CC limiting at 105~150% with auto-recovery, ideal for motor starts. OVP triggers output shutdown requiring restart.

Safety certifications are the strongest in the MDR family: UL508, UL62368-1, TUV BS EN/EN62368-1, Class I Div 2 Groups A/B/C/D HazLoc T4, EAC, BSMI, AS/NZS 60950.1, and BIS IS13252 (except 48V). EMC is Class B emissions with EN61000-6-2 heavy industrial immunity. At 40x90x100mm and 300g with 42 units per carton. 3-year warranty with 100% burn-in.

Product Images

Technical Specifications

Wide voltage adjust. DC OK relay: dry contact, NC when healthy, opens on fault (30V/1A resistive). 5V=30W; BIS excl 48V.

Parameter	MDR-40-5	MDR-40-12	MDR-40-24	MDR-40-48
DC Output Voltage	5V	12V	24V	48V
Rated Current	6A	3.33A	1.7A	0.83A
Rated Power	30W	40W	40.8W	39.8W
Ripple & Noise	80mVp-p	120mVp-p	150mVp-p	200mVp-p
Voltage Adj Range	5~6V	12~15V	24~30V	48~56V
Voltage Accuracy	+/-2.0%	+/-1.0%	+/-1.0%	+/-1.0%
Efficiency (Typ.)	78%	85%	88%	88%
Overload (CC mode)	105~150%	105~150%	105~150%	105~150%
OVP Threshold	6.25~7.25V	15.6~18V	31.2~36V	57.6~64.8V
DC OK Signal	Relay dry contact, NC (closed=OK, open=fault). Max 30V/1A resistive load.

Input & Features (All Models)

Input Voltage Range	85~264Vac or 120~370Vdc; 47~63Hz
AC Current / Inrush / No-Load	1.1A/115V, 0.7A/230V \| 30A/115V, 60A/230V (cold start) \| <0.75W
Leakage Current	<1mA / 240Vac
Hold-up / Start-up	50ms/230V, 20ms/115V \| 500ms/30ms @ 230V & 115V (cold start)
Overload / OVP / SC	105~150% CC limiting, auto-recovery \| OVP: shutdown, restart to recover \| SC: auto-recovery
DC OK Relay	Dry contact: Normally Closed (contact closed = output OK; contact opens = DC fault / power off). Rated 30V/1A resistive. Directly compatible with PLC discrete inputs.
Operating / Storage Temp	-20~+70C (derating curve), 20~90% RH \| -40~+85C, 10~95% RH
Temp Coefficient / Vibration	+/-0.03%/C (0~50C) \| 2G, 10~500Hz, IEC60068-2-6
Altitude	2,000m (derate 3.5C/1000m above)
Safety Standards	UL508, UL62368-1, TUV BS EN/EN62368-1, Class I Div 2 Groups A/B/C/D HazLoc T4, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 60950.1, BIS IS13252 (except 48V)
Isolation	I/P-O/P: 3KVac \| I/P-FG: 2KVac \| O/P-FG: 0.5KVac \| All: >100Mohm/500Vdc/25C/70% RH
EMC Emissions	BS EN/EN55032(CISPR32) Class B, BS EN/EN61204-3 Class B, EN61000-3-2,-3, CNS13438 Class B, EAC TP TC 020
EMC Immunity	BS EN/EN61000-6-2 Heavy Industrial -- BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035; BS EN/EN61204-3; EAC TP TC 020
MTBF / Dimensions / Weight	2,418.5K hrs (Telcordia SR-332); 301.7K hrs (MIL-HDBK-217F, 25C) \| 40 x 90 x 100mm / 0.3kg / 42pcs per carton / 13.6kg

Key Features

DC OK Relay Contact -- PLC/SCADA Ready
Dry contact (NC, 30V/1A) replaces active sourcing signal on MDR-10/20 -- closes when output is healthy, opens on fault. Connect directly to any PLC discrete input, no level-matching circuit needed. The definitive industrial power monitoring interface.

HazLoc Class I Div 2 T4 -- Hazardous Area Rated
First MDR model with hazardous location certification for Groups A/B/C/D -- deploy in petrochemical, mining, and process industry panels without additional enclosures (subject to installation code)

Heavy Industrial EMC -- EN61000-6-2
Upgraded from MDR-10/20's light industrial (EN61000-6-1) to heavy industrial (EN61000-6-2) immunity -- suitable for factory floors, motor control centers, and heavy machinery environments

Wide Adjust 5~56V Range Across Models
Broad adjustment ranges: 5~6V, 12~15V, 24~30V, 48~56V -- trim for cable loss, set custom system voltages, or cover multiple nominal voltages with one part number

48V Option + 88% Efficiency
New 48V model at 0.83A/39.8W/88% -- expands MDR into PoE injector and telecom DC distribution. 24V delivers 40.8W at 88% with +/-1.0% accuracy

100% Burn-in + 3-Year Warranty
Every unit undergoes full-load burn-in with HazLoc-certified design -- the most rugged MDR for hazardous environments and heavy industrial control panels

Frequently Asked Questions

How does the DC OK relay differ from MDR-10/20's active signal?

MDR-10/20 uses an active sourcing output that drives a voltage proportional to the output (e.g. 18~27V for 24V model). This limits drive current to 20~50mA and requires matching voltage levels. MDR-40 uses a passive relay dry contact (NC when healthy, opens on fault) rated 30V/1A -- this is a universal interface: it works with any PLC voltage (5V, 12V, 24V, 48V), draws no power, provides galvanic isolation, and handles higher current for annunciator panels or external relays. The relay closes at power-up and opens on any DC fault or power loss.

What does HazLoc Class I Div 2 T4 mean for my installation?

Class I Division 2 means the MDR-40 is certified for areas where flammable gases/vapors (Groups A/B/C/D: acetylene, hydrogen, ethylene, propane) are present only under abnormal conditions (not continuously). T4 indicates surface temperature won't exceed 135C. This makes MDR-40 suitable for petrochemical, pharmaceutical, and process industry control panels -- it's the only MDR with this certification. Always install per local electrical code for hazardous areas.

Is BIS available for MDR-40-48?

No. The 48V model is explicitly excluded from BIS IS13252 certification. All other models (5V, 12V, 24V) carry BIS certification. If India compliance at 48V is required, contact your MEAN WELL sales representative for alternative 48V certified options.

How does MDR-40 compare to MDR-20?

MDR-40: 40mm (2x width), 40W (2x power), DC OK relay contact (vs active signal), HazLoc T4, heavy industrial EMC, adds 48V (drops 15V), 88% peak efficiency. MDR-20: 22.5mm, 20W/24W, active DC OK 20-50mA, light industrial, no HazLoc, 84% peak. Choose MDR-40 for hazardous areas, PLC relay monitoring, 48V systems, or heavy industrial environments. Choose MDR-20 for 22.5mm ultra-slim, 15V, or lowest cost 20W.
