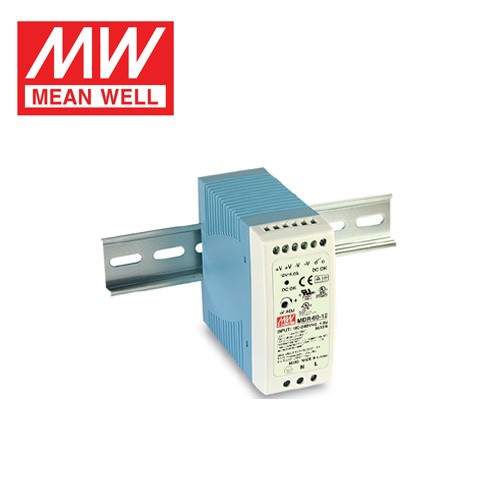

MEAN WELL Power Supply MDR-60 Series Single Output DIN Rail Mounted

Product Item : MDR-60 series
Category：DIN Rail Power Supplies
Wattage: 60W
Input Voltage: 85 ~ 264VAC or 120 ~ 370VDC
Output Current: 0 ~ 10A
Output Voltage: 5 ~ 48V
Product description：he Mean Well MDR-60 is a compact 60W DIN-rail power supply with universal AC input for industrial control. It features high efficiency and built-in protection in an ultra-slim design.
INQUIRY EMAIL

MDR-60 Series - 60W DIN Rail Power Supply (40mm, Same Platform as MDR-40, 1.5x Power)

✓ In Stock3-Year60WHazLoc T4DC OK RelayHeavy Industrial

				Key Performance at a Glance

						60W

						Rated Power (12-48V)

						10A

						Max Current (5V)

						87%

						Max Efficiency

						40mm

						Width

						50ms

						Hold-up (230V)

						HazLoc

						Class I Div 2 T4

Product Overview

The MDR-60 series is a direct 1.5x power upgrade to the MDR-40 platform -- same 40mm width, same terminals, same certifications, more power. It retains the DC OK relay contact (NC, 30V/1A), HazLoc Class I Div 2 T4 certification, EN61000-6-2 heavy industrial EMC, and the same 5/12/24/48V voltage lineup. The only differences: 60W output, 10A 5V burst capability, and slightly higher AC current consumption.

The MDR-60 accepts universal 85~264Vac input (120~370Vdc) with 1.8A/115V, 1A/230V AC current and 30A/60A cold-start inrush. Four voltages: 5V (10A/50W), 12V (5A/60W), 24V (2.5A/60W), and 48V (1.25A/60W). The 5V model delivers 50W -- 67% more than MDR-40-5's 30W. Efficiency ranges from 78% at 5V to 87% at 24V/48V (vs 88% on MDR-40 -- a 1% trade-off for 1.5x power in the same chassis).

All MDR-40 platform features carry forward: DC OK relay dry contact (NC when healthy, opens on fault), 105~150% CC overload with auto-recovery, wide voltage adjust (5~6V, 12~15V, 24~30V, 48~56V), OVP shutdown requiring restart, 50ms/20ms hold-up, <0.75W no-load, Class B emissions with EN61000-6-2 heavy industrial immunity, and 3KVac I/P-O/P isolation. The relay contact is galvanically isolated -- compatible with any PLC voltage.

Safety certifications match MDR-40 exactly: UL508, UL62368-1, TUV BS EN/EN62368-1, Class I Div 2 Groups A/B/C/D HazLoc T4, EAC, BSMI, AS/NZS 60950.1, and BIS IS13252 (except 48V). At 40x90x100mm and 287g with 42 units per carton -- mechanically identical to MDR-40. 3-year warranty with 100% burn-in.

Product Images

Technical Specifications

Same 40mm platform, same relay DC OK + HazLoc, 1.5x MDR-40 power. 5V=50W (10A). BIS excl 48V.

Parameter	MDR-60-5	MDR-60-12	MDR-60-24	MDR-60-48
DC Output Voltage	5V	12V	24V	48V
Rated Current	10A	5A	2.5A	1.25A
Rated Power	50W	60W	60W	60W
Ripple & Noise	80mVp-p	120mVp-p	150mVp-p	200mVp-p
Voltage Adj Range	5~6V	12~15V	24~30V	48~56V
Voltage Accuracy	+/-2.0%	+/-1.0%	+/-1.0%	+/-1.0%
Efficiency (Typ.)	78%	85%	87%	87%
Overload / OVP / SC	105~150% CC auto-recovery \| OVP shutdown+restart \| SC auto-recovery
DC OK Signal	Relay dry contact, NC (closed=OK, open=fault). Max 30V/1A resistive.

Input & Features (All Models)

Input Voltage Range	85~264Vac or 120~370Vdc; 47~63Hz
AC Current / Inrush / No-Load	1.8A/115V, 1A/230V \| 30A/115V, 60A/230V (cold start) \| <0.75W
Leakage Current	<1mA / 240Vac
Hold-up / Start-up	50ms/230V, 20ms/115V \| 500ms/30ms @ 230V & 115V (cold start)
DC OK Relay	Dry contact: NC (closed=OK, open=fault). 30V/1A resistive. Galvanically isolated -- compatible with any PLC voltage.
Operating / Storage Temp	-20~+70C (derating curve) \| -40~+85C, 10~95% RH
Temp Coefficient / Vibration	+/-0.03%/C (0~50C) \| 2G, 10~500Hz, IEC60068-2-6
Altitude	2,000m (derate 3.5C/1000m above)
Safety Standards	UL508, UL62368-1, TUV BS EN/EN62368-1, Class I Div 2 Groups A/B/C/D HazLoc T4, EAC, BSMI CNS14336-1, AS/NZS 60950.1, BIS IS13252 (except 48V)
Isolation	I/P-O/P: 3KVac \| I/P-FG: 2KVac \| O/P-FG: 0.5KVac \| All: >100Mohm/500Vdc/25C/70% RH
EMC Emissions	Class B (BS EN/EN55032/CNS13438), EN61000-3-2,-3, EAC TP TC 020
EMC Immunity	EN61000-6-2 Heavy Industrial -- EN61000-4-2,3,4,5,6,8,11; EN55035; EN61204-3; EAC TP TC 020
MTBF / Dimensions / Weight	2,355.2K hrs (Telcordia); 489.9K hrs (MIL-HDBK-217F, 25C) \| 40x90x100mm / 0.287kg / 42pcs per carton / 13.05kg

Key Features

60W in 40mm -- 1.5x MDR-40 Same Platform
Identical 40mm form factor, terminals, and certifications as MDR-40 -- drop-in 50% more power with no mechanical changes. 12/24/48V models deliver full 60W; 5V delivers 50W (10A).

10A 5V Burst -- 1.67x MDR-40-5
Highest 5V current in the MDR family at 10A/50W -- powers large TTL/CMOS logic systems, FPGA boards, and embedded computing clusters from a 40mm HazLoc-rated DIN supply

Same DC OK Relay + HazLoc + Heavy EMC
Galvanically isolated NC relay contact with HazLoc T4 and EN61000-6-2 immunity -- identical monitoring interface as MDR-40, zero retraining for panel upgrades

Drop-in MDR-40 Replacement
Same 40mm width, same terminal layout, same DC OK relay, same adjust ranges -- upgrade from 40W to 60W without any panel rework or wiring changes

Wide Adjust Across All Models
5~6V, 12~15V, 24~30V, 48~56V adjustment ranges -- same span as MDR-40 for cable compensation, battery float, and custom system voltages

100% Burn-in + 3-Year Warranty
Every unit undergoes full-load burn-in with HazLoc-certified design -- the most rugged 60W DIN supply for hazardous areas with global industrial certifications

Frequently Asked Questions

Can I drop MDR-60 into an existing MDR-40 panel?

Yes -- 100% mechanically and electrically compatible. MDR-60 uses the identical 40x90x100mm chassis, the same TS-35 DIN rail mount, the same terminal layout (N/L/FG/DC OK relay/+V/-V), the same relay contact (NC, 30V/1A), and the same voltage adjust ranges per model. The only differences are AC current consumption (1.8A vs 1.1A at 115V) -- ensure your upstream breaker is sized accordingly -- and weight (287g vs 300g).

How does MDR-60 compare to MDR-40?

Same platform, more power. MDR-60: 60W (1.5x), 5V=10A/50W (vs 6A/30W), 12V=5A/60W (vs 3.33A/40W), 24V=2.5A/60W (vs 1.7A/40.8W), 48V=1.25A/60W (vs 0.83A/39.8W). Efficiency: 87% vs 88% at 24/48V (1% trade-off). Same 40mm width, same certifications, same DC OK relay, same HazLoc T4. Choose MDR-60 when you need 60W; choose MDR-40 when 40W is enough or you want slightly higher efficiency.

Why is 5V limited to 50W?

At 5V output, the 10A current delivers 50W -- this is a thermal limitation of the platform at very low output voltages, consistent across all MDR models (MDR-10-5=10W, MDR-20-5=15W, MDR-40-5=30W). For full 60W, choose 12V, 24V, or 48V.
