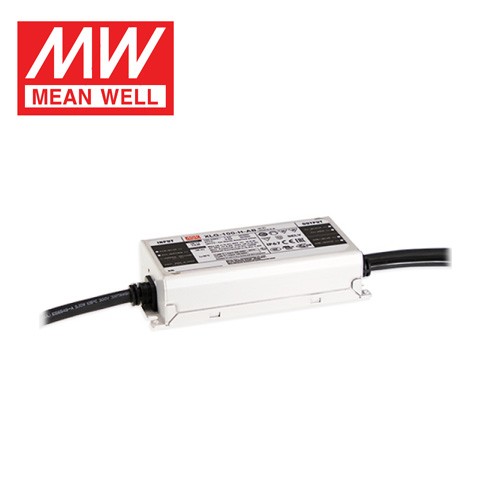

MEAN WELL Power Supply XLG-100 Series Constant Current Mode LED Driver

Product Item : XLG-100 series
Category：LED Driver
Wattage: 100W
Input Voltage: 100 ~ 305VAC or 142 ~ 431VDC
Output Current: 4 ~ 8A
Output Voltage: 12 ~ 24V
Product description：XLG-100 series is a 100W AC/DC LED driver featuring the constant current mode output. XLG-100 operates from 100~305VAC.
INQUIRY EMAIL

XLG-100 Series - 100W Constant Power LED Driver with CV+CC / CC Options, Active PFC, Class P, IP67, 0-10V Dimming

In Stock 5-Year Warranty Constant Power 100W Max IP67 Class P Active PFC 0-10V Dimming Type HL

				Key Performance at a Glance

						100W

						Max Power

						92.5%

						Peak Efficiency

						4

						Output Types

						IP67

						Outdoor Rated

						+90C

						Max Tcase

						6KV/4KV

						Surge (10K/6K opt.)

Product Overview

The MEAN WELL XLG-100 series is a 100W AC-to-DC constant-power LED driver family with IP67 protection, Class P certification, and Type HL listing for Class I, Division 2 hazardous location lighting (except L-Type). It is designed for LED street lighting, architectural lighting, bay lighting, flood lighting, grow lighting, fishing lighting, and industrial lighting.

It accepts universal 100~305VAC input (142~431VDC) and provides multiple output options: 12V CV+CC (8A / 96W), 24V CV+CC (4A / 96W), L-Type CC (700mA / 71~142V / 100W), and H-Type CC (2100mA / 27~56V / 100W). The L-Type achieves peak efficiency up to 92.5%, while the 12V/24V and H-Type reach 92% and 91% respectively. The driver uses a fanless design and operates at case temperatures from -40C to +90C under free air convection.

The metal enclosure carries an IP67 rating for both indoor and outdoor use. Multiple function versions are available: Blank (fixed output, suitable for harsh environments), A (current/voltage adjustable via internal potentiometer), AB (current adjustable + 3-in-1 dimming, available for L/H-Type only), and CV (12V/24V fixed constant-voltage, CE/ENEC/CB only). The AB-Type dimming circuit is galvanically isolated from the output and supports 0~10Vdc / 10V PWM / resistor dimming down to approximately 0%. An India version (XLG-100I) adds input over-voltage protection at 320~390VAC and IS 15885 certification.

Protection includes over-current (CV models 95~108% / 110~160%; CC models 105~150%), short-circuit (hiccup mode or constant current limiting), over-voltage (12V/24V/L/H models), and over-temperature (shut off, re-power on), all with automatic recovery after fault removal. The driver complies with global lighting safety and EMC standards including UL8750 Type HL, UL879, CSA, ENEC, BS EN/EN, GB/T, JIS, EAC, KC, NOM, and IS 15885 (I-Type only), and is backed by a 5-year warranty. Note: a switch must be installed between the mains and the LED driver to meet the latest ErP regulations.

Product Images

XLG-100 series LED driver wiring diagram

XLG-100 series LED driver dimension diagram

Technical Specifications

Output ratings for the XLG-100 series. All values measured at 230VAC, rated current, 25C unless noted.

Model	Type	Voltage	Current	Power	CC Region	Adjust Range	IP
XLG-100-12	CV+CC	12V	8A	96W	8.4 ~ 12V	4A ~ 8A	IP67
XLG-100-24	CV+CC	24V	4A	96W	16.8 ~ 24V	2A ~ 4A	IP67
XLG-100-L	CC	71 ~ 142V	700mA	100W	71 ~ 142V	350mA ~ 1050mA	IP67
XLG-100-H	CC	27 ~ 56V	2100mA	100W	27 ~ 56V	875mA ~ 2780mA	IP67

Version Types

Type	IP	Output Adjustment	Dimming	Input OVP	Notes
Blank	IP67	Fixed output (12V/24V/L/H)	None	No	For harsh environments; no-load <0.5W
A	IP67	12V/24V: current adjustable \| L/H: current adjustable via built-in potentiometer	None	No	Standard; no-load <0.5W
AB	IP67	L/H only: current adjustable via built-in potentiometer	3-in-1 (0~10Vdc / 10V PWM / resistor)	No	L/H-Type only; standby <0.5W
CV	IP67	12V/24V fixed constant voltage	None	No	12V/24V only; CE/ENEC/CB only
I-Blank / I-A / I-AB	IP67	Same as non-I versions	Same as non-I versions	Yes (320~390VAC)	India version; withstand 440VAC for 48h; IS 15885

Input & Protection (All Versions)

Input Voltage Range	100~305VAC \| 142~431VDC \| 47~63Hz
Active PFC / THD / AC Current	PF>=0.97/115V, >=0.95/230V, >=0.92/277V at full load \| THD<10% (@load>=50%/115VAC,230VAC; @load>=75%/277VAC) \| 1.1A/115V, 0.5A/230V, 0.42A/277V
Inrush / Leakage / Breaker	Cold start 50A (twidth=300us measured at 50% Ipeak) / 230VAC per NEMA 410 \| 16A breaker: 8 units (B type) / 14 units (C type) at 230VAC \| <0.75mA/277VAC
Set Up / Rise Time	500ms, 100ms / 230VAC; 1200ms, 100ms / 115VAC
Hold Up Time	12ms / 230VAC, 12ms / 115VAC
No-Load / Standby Power	Standard: <0.5W \| I-Type: no-load <0.75W \| AB-Type standby: <0.5W
Protection	Over-current: CV models 95~108% / 110~160% (hiccup); CC models 105~150% (hiccup) \| Short circuit: hiccup or constant current limiting, auto-recovery \| Over-voltage: 12V 13.5~18V / 24V 27~34V / L 160~220V / H 66~90V, re-power on \| Over temp: shut off, re-power on \| Input OVP: 320~390VAC on I-Type only, auto-recovery; withstand 440VAC for 48h
Current Ripple / Tolerance	CV models: 12V 150mVp-p / 24V 240mVp-p \| CC models: <3.0% @ rated current \| Current accuracy ±5%; voltage accuracy 12V ±3.0% / 24V ±2.0%
Operating / Storage Temp	Tcase=-40~+90C (refer to derating curve) \| Storage -40~+80C \| Temp coefficient ±0.03%/C (0~60C)
Vibration / Humidity	10~500Hz, 5G, 12min/cycle, X/Y/Z 72min each \| 20~95% RH non-condensing
Isolation	3.75KVac I/P-O/P, 2KVac I/P-FG, 1.5KVac O/P-FG
EMC Emission / Immunity	EN55015/CISPR15, GB/T17743; Harmonic Class C (@load>=50%); EN61000-3-3 \| Immunity: EN61000-4-2 Level 3, EN61000-4-3 Level 3, EN61000-4-4 Level 3, EN61000-4-5 (6KV line-earth / 4KV line-line standard, 10KV/6KV optional), EN61000-4-6 Level 3, EN61000-4-8 Level 4, EN61000-4-11, EN61547
Lifetime / MTBF / Size	>50,000 hours at Tcase<80C \| 2782.6K hrs (Telcordia SR-332) / 276.4K hrs (MIL-HDBK-217F, 25C) \| 140 x 63 x 32mm \| 0.58Kg

Safety Standards & Certifications

Safety Standards	UL8750 (Type HL, except L-Type), UL879, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384, GB/T19510.1, GB/T19510.213, EAC TP TC 004, J61347-1(H29), J61347-2-13(H29), KC61347-1, KC61347-2-13, IS 15885(Part 2/Sec13) (I-Type only), NOM-058-SCFI-2017 (except Blank type) \| IP67
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2.0KVAC \| O/P-FG: 1.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25C / 70% RH
EMC Emissions	BS EN/EN55015 (CISPR15), GB/T17743; Harmonic BS EN/EN61000-3-2 Class C (@load>=50%); BS EN/EN61000-3-3
EMC Immunity	BS EN/EN61547, BS EN/EN61000-4-2 Level 3, BS EN/EN61000-4-3 Level 3, BS EN/EN61000-4-4 Level 3, BS EN/EN61000-4-5 (6KV line-earth / 4KV line-line standard, 10KV/6KV optional), BS EN/EN61000-4-6 Level 3, BS EN/EN61000-4-8 Level 4, BS EN/EN61000-4-11

Key Features

Constant Power Platform -- 4 Output Choices
XLG-100 offers 12V/24V CV+CC models plus L-Type (700mA / 71~142V) and H-Type (2100mA / 27~56V) CC models, covering LED module voltages from 12V to 142V at up to 100W.

Flexible Function Versions
Blank (fixed), A (adjustable), AB (adjustable + 3-in-1 dimming for L/H), and CV (12V/24V fixed). I-Type variants add 320~390VAC input OVP for India and other high-line markets.

Class P + Type HL + IP67
Class P LED driver with UL8750 Type HL listing (except L-Type). 24V model is Class 2 power limited. Sealed metal housing supports indoor and outdoor use.

Active PFC + Global Certifications
PF>=0.97 at 115V and THD<10% keep installations compliant. UL/CSA/ENEC/GB/JIS/EAC/KC/NOM certifications enable worldwide deployment; IS 15885 for India on I-Type.

High Surge & Wide Temperature Range
Fanless operation from Tcase -40C to +90C. Passes 5G vibration and 6KV/4KV surge immunity (10KV/6KV optional) for harsh outdoor and industrial environments.

5-Year Warranty + Ultra-Low Standby
Backed by a 5-year warranty. No-load/standby power is below 0.5W to meet modern ErP requirements. Compact 140 x 63 x 32mm metal housing fits tight fixtures.
