MEAN WELL Enclosed Power Supply RSP-200 Series Single Output with PFC Function

Product Item : RSP-200 series
Category：Enclosed Type
Wattage: 200W
Input Voltage: 88~264VAC or 124 ~ 370VDC
Output Current: 0 ~ 40A
Output Voltage: 2.5 ~ 12V
Product description：RSP-200 is a 200W single output enclosed type AC/DC power supply. This series operates for 88-264VAC input voltage and offers the models with the DC output mostly demanded from the industry.
INQUIRY EMAIL

RSP-200 Series - 200W Single-Output Enclosed Power Supply with PFC

✓ In Stock3-Year Warranty12 VoltagesClass B EMCMoisture-Proof

				Key Performance at a Glance

						200W

						Rated Power

						90%

						Max Efficiency

						PF>0.98

						Power Factor

						<1.0mA

						Leakage Current

						-30~70C

						Operating Temp

						12

						Output Models

Product Overview

The RSP-200 series is MEAN WELL's 200W premium enclosed power supply with the broadest voltage coverage in the RSP family - 12 models from 2.5V to 48V. Featuring unique ultra-low-voltage models (2.5V, 4V), hiccup-mode overload protection, and an exceptionally low <1.0mA leakage current, it is the most versatile RSP model for specialized industrial, test & measurement, and compliance-critical applications.

Built around 100KHz PFC+PWM switching with 88~264VAC universal input, the RSP-200 achieves PF>0.98 at 115VAC and is EN61000-3-2 compliant for EU residential use. It introduces hiccup mode overload protection (105~135%) with auto-recovery - different from the constant current limiting used in smaller RSP models - and offers optional moisture-proof conformal coating for humidity-critical environments.

Measuring 215x115x30mm, the RSP-200 shares the same form factor as LRS-200N2. Unique features include Dekra EN 61558-1/2-16 certification (for 12V+ models), 5000uF external capacitance support across all models up to 15V, <1.0mA leakage current (lowest in the RSP family), and BIS coverage for 9 of 12 models (excluding 2.5V, 4V, and 48V).

UL, TUV, CCC, BSMI, EAC, AS/NZS 60950.1 certified. I/P-O/P withstand is 3KVAC. Fanless convection cooling from -30~70C. 3-year warranty. Note: Hold-up time is 8ms (shorter than RSP-75/100/150) - consider external hold-up if needed. 88~264VAC minimum input (vs 85V on other RSP models).

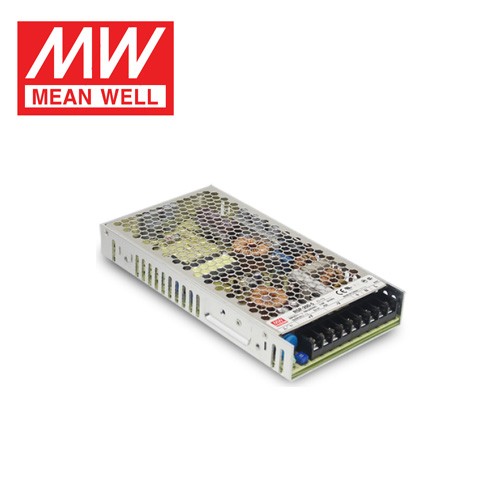

Product Images

Technical Specifications

Low-Voltage Models (2.5V ~ 7.5V)

Parameter	2.5V	3.3V	4V	5V	7.5V
DC Output Voltage	2.5V	3.3V	4V	5V	7.5V
Rated Current	40A	40A	40A	40A	26.7A
Rated Power	100W	132W	160W	200W	200.25W
Ripple & Noise	100mV	100mV	100mV	150mV	150mV
Voltage Adj Range	2.35~2.85	2.97~3.8	3.7~4.3	4.5~5.5	6~9V
Voltage Accuracy	+/-2.0%	+/-2.0%	+/-2.0%	+/-2.0%	+/-2.0%
Line / Load Reg	0.5/1.5%	0.5/1.5%	0.5/1.0%	0.5/1.0%	0.5/1.0%
Efficiency (Typ.)	79.5%	81.5%	84%	85.5%	89%

Standard Voltage Models (12V ~ 48V)

Parameter	12V	13.5V	15V	24V	27V	36V	48V
DC Output Voltage	12V	13.5V	15V	24V	27V	36V	48V
Rated Current	16.7A	14.9A	13.4A	8.4A	7.5A	5.56A	4.2A
Rated Power	200.4W	201.2W	201W	201.6W	202.5W	200.2W	201.6W
Ripple & Noise	150mV	150mV	150mV	150mV	200mV	220mV	240mV
Voltage Adj Range	10~13.2	12~15	13.5~18	20~26.4	26~31.5	32.4~39.6	41~56V
Line Reg / Load Reg	0.3/0.5%	0.3/0.5%	0.3/0.5%	0.2/0.5%	0.2/0.5%	0.2/0.5%	0.2/0.5%
Efficiency (Typ.)	89%	89%	89.5%	89.5%	89%	90%	90%

Input, Protection & Features (All Models)

Input Voltage	88~264VAC universal (no switch); 124~370VDC. PF>0.98/115V, PF>0.95/230V
AC Current / Inrush	2A~2.5A/115V \| 1.1~1.3A/230V; Inrush 20A/115V, 40A/230V cold start
Leakage Current	< 1.0mA / 240VAC - lowest in RSP family for medical-adjacent applications
Hold-up Time	8ms (230/115VAC, full load) - shorter than RSP-75/100/150 (16ms)
Overload Protection	105~135%; Hiccup mode with auto-recovery (different from CC limiting in other RSP models)
Overvoltage Protection	2.5V:2.88~3.5 / 3.3V:3.8~4.62 / 4V:4.5~5.6 / 5V:5.75~7 / 7.5V:9.4~10.9 / 12V:13.8~16.2 / 13.5V:15.7~18.4 / 15V:18.8~21.8 / 24V:27.6~32.4 / 27V:32.9~38.3 / 36V:41.4~48.6 / 48V:58.4~68V (shutdown, restart)
OTP / Ext. Capacitor	OTP: shutdown, auto-recovery; Max 5,000uF for 2.5V~15V models
Optional	Moisture-proof conformal coating available for humidity-critical environments

Environmental, Safety & EMC

Operating Temp	-30~+70C (fanless convection); Temperature coefficient +/-0.03%/C (0~45C)
Safety Standards	UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS15598-1, EAC TP TC 004, AS/NZS 60950.1; Dekra EN 61558-1/2-16, IEC 61558-1/2-16 (12V+); BIS IS13252 (except 2.5V, 4V, 48V)
Withstand / Insulation	I/P-O/P: 3KVAC \| I/P-FG: 2KVAC \| O/P-FG: 0.5KVAC; Insulation: >100Mohm/500VDC
EMC	EN55032 Class B, EN61000-3-2/-3-3, GB9254 Class B, CNS15936, KN32 (5V); Immunity: EN61000-4-2,3,4,5,6,8,11, EN55035 light industrial
MTBF / Dimensions	2,078.1K hrs (Telcordia); 215x115x30mm; 0.72kg / 15pcs / 11.8kg

Key Features

12 Voltage Options
Broadest RSP lineup: 2.5V to 48V including unique 2.5V and 4V models for specialized equipment.

<1.0mA Leakage Current
Lowest in the RSP family - 2.5x lower than RSP-150. Ideal for medical-adjacent and sensitive applications.

Hiccup Mode Overload
Auto-recovery hiccup protection vs constant current in other RSP - better for intermittent fault conditions.

Optional Moisture-Proof
Conformal coating option for high-humidity environments - unique in the RSP enclosed family.

Dekra EN 61558 Certified
Additional safety certification for 12V+ models - transformer safety standard for EU market.

Active PFC + Class B EMC
PF>0.98, EN61000-3-2 compliant. EU residential legal without restrictions.

90% Peak Efficiency
36V and 48V models at 90%. 100KHz PFC+PWM architecture for clean output.

5,000uF Cap Support
External output capacitance up to 5,000uF for 2.5V~15V models - dynamic load ready.

Fanless 215x115x30mm
Same footprint as LRS-200N2. Silent convection cooling from -30~70C.

3-Year Warranty
MEAN WELL premium RSP product line warranty with global coverage.

Frequently Asked Questions

How does the RSP-200 differ from the RSP-150?

The RSP-200 delivers 200W vs 150W. Key differences: (1) 12 voltage options including 2.5V, 4V, and 36V not in RSP-150; (2) hiccup mode overload (vs constant current); (3) <1.0mA leakage (vs ~1.5mA on RSP-150); (4) 8ms hold-up (vs 16ms - a downgrade); (5) 3KVAC I/P-O/P (vs 4KVAC); (6) 88~264VAC input (vs 85~264V); (7) Dekra EN 61558 certification for 12V+; (8) optional moisture-proof coating; (9) same footprint as LRS-200N2 (215x115x30mm). Choose RSP-200 for specialized voltages, lowest leakage, or moisture-proof needs.

Why is the hold-up time only 8ms?

The RSP-200 uses a different PFC architecture optimized for efficiency and cost at 200W, resulting in a shorter 8ms hold-up time vs 16ms on RSP-75/100/150. In practice, 8ms covers ~0.5 cycle at 60Hz - sufficient for most industrial applications but may require external hold-up capacitors or UPS for critical systems with frequent brownouts.

What are the 2.5V and 4V models used for?

2.5V serves legacy TTL/CMOS logic, FPGA core voltages, and specialized test equipment. 4V is used in LED testing, battery formation equipment, and certain industrial controllers. Both are extremely rare voltages in enclosed supplies - the RSP-200 is often the only enclosed PFC option available at these voltages.

Can the RSP-200 be used in EU residential equipment?

Yes. Active PFC with EN61000-3-2 compliance and Class B EMC. The additional Dekra EN 61558 certification (12V+) provides transformer safety compliance for the EU market.

How does hiccup mode overload protection work?

Unlike constant current limiting (used in RSP-75/100/150) which maintains current flow, hiccup mode periodically attempts to restart the output when an overload is detected. If the fault persists, it keeps cycling on/off. If the fault clears, normal operation resumes automatically. This is safer for some load types and reduces component stress during prolonged overloads.

Related Products

Select the RSP-200 model. All 12 feature active PFC, Class B EMC, fanless cooling, and hiccup overload protection.

Available Models

RSP-200-2.5 - 2.5V/40A/100W
RSP-200-3.3 - 3.3V/40A/132W
RSP-200-4 - 4V/40A/160W
RSP-200-5 - 5V/40A/200W
RSP-200-7.5 - 7.5V/26.7A/200.3W
RSP-200-12 - 12V/16.7A/200.4W
RSP-200-13.5 - 13.5V/14.9A/201.2W
RSP-200-15 - 15V/13.4A/201W
RSP-200-24 - 24V/8.4A/201.6W
RSP-200-27 - 27V/7.5A/202.5W
RSP-200-36 - 36V/5.56A/200.2W
RSP-200-48 - 48V/4.2A/201.6W
