MEAN WELL Enclosed Power Supply RSP-100 Series Single Output with PFC Function

Product Item : RSP-100 series
Category：Enclosed Type
Wattage: 100W
Input Voltage: 85~264VAC or 120 ~ 370VDC
Output Current: 0 ~ 20A
Output Voltage: 3.3 ~ 48V
Product description：RSP-100 is a 100W single output enclosed type AC/DC power supply. This series operates for 85-264VAC input voltage and offers the models with the DC output mostly demanded from the industry.
INQUIRY EMAIL

RSP-100 Series - 100W Single-Output Enclosed Power Supply with PFC

✓ In Stock3-Year WarrantyActive PFCClass B EMCFanless

				Key Performance at a Glance

						100W

						Rated Power

						88%

						Max Efficiency

						PF>0.98

						Power Factor

						30mm

						Slim Profile

						-30~70C

						Operating Temp

						9

						Output Models

Product Overview

The RSP-100 series delivers 100W with active PFC, universal AC input, and Class B EMC compliance - the sweet spot between RSP-75 and RSP-150. With 9 voltage options including unique 7.5V and 13.5V, fanless convection cooling, and an extended -30~70C operating range (wider than RSP-75's -25C minimum), it is the premium 100W enclosed solution for global compliance-critical applications.

Built around 100KHz PFC+PWM architecture, the RSP-100 achieves PF>0.98 at 115VAC with universal 85~264VAC input (no switch). EN61000-3-2 compliant for EU residential use, Class B EN55032 EMC, and 4KVAC I/P-O/P isolation. The 3.3V/5V/7.5V models support up to 5,000uF external output capacitance for demanding dynamic loads.

Measuring 179x99x30mm, the RSP-100 is slightly longer than RSP-75 (179 vs 159mm) to accommodate the higher power rating. It carries the same comprehensive certification portfolio: UL, TUV, CCC, BSMI, EAC, BIS (except 48V), and AS/NZS. Constant current overload protection with auto-recovery, remote ON/OFF via CN1, and 3-year warranty complete the premium feature set.

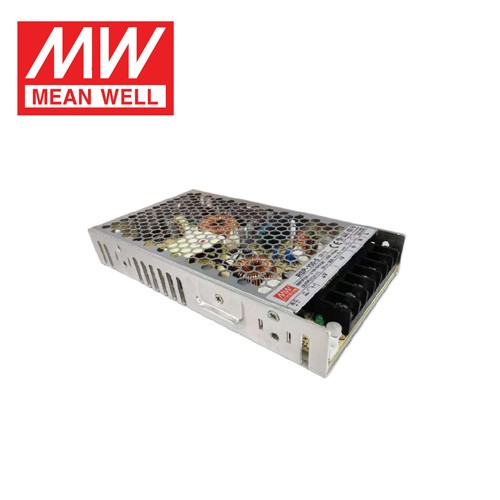

Product Images

Technical Specifications

Parameter	3.3V	5V	7.5V	12V	13.5V	15V	24V	27V	48V
DC Output Voltage	3.3V	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Rated Current	20A	20A	13.5A	8.5A	7.5A	6.7A	4.2A	3.8A	2.1A
Rated Power	66W	100W	101.3W	102W	101.3W	100.5W	100.8W	102.6W	100.8W
Ripple & Noise	100mV	100mV	100mV	100mV	100mV	100mV	150mV	150mV	250mV
Voltage Adj Range	3.14~3.63	4.75~5.5	7.13~8.25	11.4~13.2	12.8~14.9	14.3~16.5	22.8~26.4	25.7~29.7	45.6~52.8
Voltage Accuracy	+/-2.0%	+/-2.0%	+/-2.0%	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%
Line / Load Reg	0.5/1.0%	0.5/1.0%	0.5/1.0%	0.5/0.5%	0.5/0.5%	0.5/0.5%	0.5/0.5%	0.5/0.5%	0.5/0.5%
Efficiency (Typ.)	83%	86%	87%	86%	86.5%	87%	87%	87%	88%

Input, PFC & Protection (All Models)

Input Voltage	85~264VAC universal (no switch); 120~370VDC
Active PFC	PF>0.98@115V / PF>0.93@230V; 100KHz PFC+PWM; EN61000-3-2 compliant
AC Current / Inrush	1.1A/115V \| 0.55A/230V; Inrush 30A/230V cold start
Overload Protection	105~135% constant current limiting; auto-recovery
Overvoltage Protection	3.3V:3.63~4.46 / 5V:5.5~6.75 / 7.5V:8.25~10.13 / 12V:13.2~16.2 / 13.5V:14.85~18.23 / 15V:16.5~20.25 / 24V:26.4~32.4 / 27V:29.7~36.45 / 48V:52.8~64.8V (shutdown, restart)
OTP / Remote	OTP auto-recovery; CN1: 0~0.8V=ON, 4~10V=OFF
Ext. Capacitor Note	Max 5,000uF external output capacitance for RSP-100-3.3/-5/-7.5 models only

Environmental, Safety & EMC

Operating Temp	-30~+70C (refer to derating curve; wider than RSP-75)
Safety Standards	UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16, CCC GB4943.1, EAC, BSMI, BIS (except 48V), AS/NZS 62368.1
Withstand Voltage	I/P-O/P: 4KVAC \| I/P-FG: 2KVAC \| O/P-FG: 0.5KVAC
EMC	EN55032 Class B, EN61000-3-2/-3-3 compliant, GB9254 Class B; Immunity: EN61000-4-2,3,4,5,6,8,11, EN55035 light industrial
MTBF / Dimensions	2,325.2K hrs (Telcordia); 179x99x30mm; 0.52kg / 24pcs / 14.5kg

Key Features

Active PFC + EN61000-3-2
EU residential compliant - no harmonic current restrictions. PF>0.98 at 115VAC.

-30~70C Extended Range
Wider cold-start than RSP-75 (-30C vs -25C) - suitable for outdoor and freezer applications.

9 Voltage Options
3.3V to 48V including 7.5V and 13.5V float-charge. 12V+ models at +/-1.0% accuracy.

5,000uF Output Cap Support
3.3V/5V/7.5V models support large external capacitance - ideal for dynamic pulsed loads.

100KHz Architecture
Higher switching frequency than RSP-75 (65/80KHz) - smaller magnetics, lower output noise.

Fanless Convection Cooling
Silent zero-maintenance at 179x99x30mm - no fan failure risk.

Global Certifications
UL+TUV+CCC+BSMI+EAC+BIS+AS/NZS - one model for worldwide deployment.

4KVAC I/P-O/P Isolation
Higher safety margin than LRS/SE series. Constant current limiting auto-recovers.

Universal AC Input
85~264VAC full range, no switch. Remote ON/OFF via CN1 for system control.

3-Year Warranty
MEAN WELL's premium RSP product line warranty.

Frequently Asked Questions

How does the RSP-100 differ from the RSP-75?

The RSP-100 delivers 100W vs 75W - a 33% power increase. Key differences: (1) larger dimensions (179x99x30mm vs 159x97x30mm); (2) wider cold-start range (-30C vs -25C minimum); (3) 100KHz switching vs 65/80KHz - potentially lower audible noise; (4) supports 5,000uF external capacitance on 3.3V/5V/7.5V models; (5) 12V+ accuracy improved to +/-1.0% (vs +/-2.0% on RSP-75-12/13.5/15); (6) slightly lower 48V efficiency (88% vs 89%); (7) higher MTBF (2,325K vs 2,172K hrs). Choose RSP-100 when you need 100W, wider cold range, or large capacitive loads.

Can the RSP-100 be used in EU residential equipment?

Yes. Active PFC makes it EN61000-3-2 compliant with Class B EMC - legal for EU residential/commercial use without restrictions. This is the key advantage over LRS N2 and SE series.

What's the maximum external output capacitance?

For RSP-100-3.3, -5, and -7.5, the maximum recommended external output capacitance is 5,000uF. For 12V and above models, no specific limit is stated but keep within reasonable values for your load dynamics. Exceeding 5,000uF on low-voltage models may cause startup issues.

Is the 48V model BIS-certified for India?

No. The 48V model is excluded from BIS IS13252 certification. All other RSP-100 models are BIS-certified.

What are the 7.5V and 13.5V models used for?

7.5V for legacy industrial controllers and medical devices. 13.5V is the standard float-charge voltage for 12V lead-acid batteries (13.5~13.8V), making the RSP-100-13.5 an ideal built-in charger for battery-backed systems. Both are rare voltages where the RSP-100 is often the only enclosed option with PFC.
