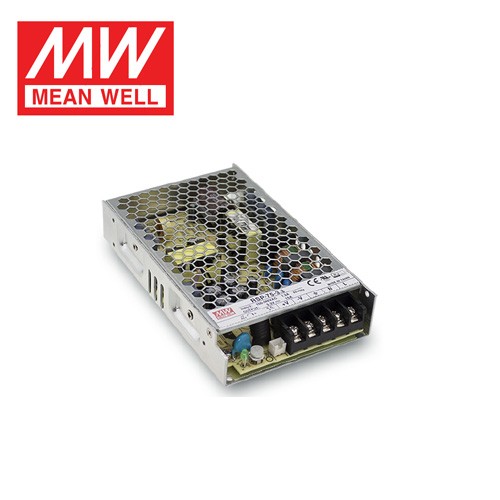

MEAN WELL Enclosed Power Supply RSP-75 Series Single Output with PFC Function

Product Item : RSP-75 series
Category：Enclosed Type
Wattage: 75W
Input Voltage: 85~264VAC or 120 ~ 370VDC
Output Current: 0 ~ 15A
Output Voltage: 3.3 ~ 48V
Product description：RSP-75 is a 75W single output enclosed type AC/DC power supply. This series operates for 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry.
INQUIRY EMAIL

RSP-75 Series - 75W Single-Output Enclosed Power Supply with PFC

✓ In Stock3-Year WarrantyActive PFCClass B EMCFanless

				Key Performance at a Glance

						75W

						Rated Power

						89%

						Max Efficiency

						PF>0.98

						Power Factor

						30mm

						Slim Profile

						-25~70C

						Operating Temp

						9

						Output Models

Product Overview

The RSP-75 series is MEAN WELL's premium 75W enclosed power supply with built-in active PFC - a key differentiator from the LRS and SE families. With universal 85~264VAC input (no switch needed), 9 voltage options from 3.3V to 48V, fanless convection cooling, and Class B EMC compliance, the RSP-75 is designed for applications where power quality, global regulatory compliance, and reliability are paramount.

The RSP-75 features active PFC achieving PF>0.98 at 115VAC and PF>0.93 at 230VAC, making it EN61000-3-2 harmonic current compliant - unlike LRS N2 and SE series which carry EN61000-3-2 restrictions. This means the RSP-75 can be legally used in EU residential and commercial equipment without needing exemption qualifications.

Measuring 159x97x30mm with convection cooling (no fan), the RSP-75 operates from -25C to +70C. It holds the most comprehensive certification portfolio: UL, TUV, CCC (China), BSMI (Taiwan), EAC (Eurasia), BIS (India, except 48V), and AS/NZS (Australia/New Zealand). I/P-O/P withstand is 4KVAC - higher than SE/LRS series.

The 9 voltage options include unique 7.5V and 13.5V models not available in most competing 75W supplies. Protection uses constant current limiting (auto-recovery for overload) which is more forgiving than the latch-off protection used in SE series. Remote ON/OFF via CN1 connector, LED power indicator, and 3-year warranty complete the premium feature set.

Product Images

Technical Specifications

Parameter	3.3V	5V	7.5V	12V	13.5V	15V	24V	27V	48V
DC Output Voltage	3.3V	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Rated Current	15A	15A	10A	6.3A	5.6A	5A	3.2A	2.8A	1.6A
Rated Power	49.5W	75W	75W	75.6W	75.6W	75W	76.8W	75.6W	76.8W
Ripple & Noise	80mV	80mV	80mV	120mV	120mV	120mV	120mV	120mV	200mV
Voltage Adj Range	3.14~3.63	4.75~5.5	7.13~8.25	11.4~13.2	12.8~14.9	14.3~16.5	22.8~26.4	25.7~29.7	45.6~52.8
Voltage Accuracy	+/-2.0%	+/-2.0%	+/-2.0%	+/-2.0%	+/-2.0%	+/-2.0%	+/-1.0%	+/-1.0%	+/-1.0%
Line Regulation	+/-0.5% (all models)
Load Regulation	+/-1.0%	+/-1.0%	+/-1.0%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Efficiency (Typ.)	76%	82%	84%	85%	85%	86%	87%	88%	89%

Input Specifications & PFC Performance

Input Voltage Range	85~264VAC universal (no switch); 120~370VDC
Active PFC	PF > 0.98 @ 115VAC / PF > 0.93 @ 230VAC (full load) - EN61000-3-2 compliant
Frequency Range	47~63Hz
AC Current (Typ.)	0.9A / 115VAC \| 0.5A / 230VAC
Inrush Current (Typ.)	35A / 230VAC (cold start)
Leakage Current	< 2.0mA / 240VAC
Hold-up Time	16ms / 230VAC (full load)

Protection Features & Environmental Ratings

Overload Protection	105%~135% rated power; constant current limiting, auto-recovery after fault removal
Overvoltage Protection	3.3V: 3.63~4.46V / 5V: 5.5~6.75V / 7.5V: 8.25~10.13V / 12V: 13.2~16.2V / 13.5V: 14.85~18.23V / 15V: 16.5~20.25V / 24V: 26.4~32.4V / 27V: 29.7~36.45V / 48V: 52.8~64.8V (shutdown; restart to recover)
Over-temperature Protection	Output shutdown; auto-recovery after temperature drops
Short Circuit Protection	Hiccup mode, auto-recovery
Remote ON/OFF	CN1 connector: 0~0.8V = PSU ON, 4~10V = PSU OFF
Operating Temperature	-25~+70C (refer to derating curve)
Operating Humidity	20~90% RH, non-condensing
MTBF	>= 2,171.5K hrs (Telcordia SR-332); >= 296.7K hrs (MIL-HDBK-217F, 25C)
Dimensions	159 x 97 x 30 mm (LxWxH)
Net Weight / Packaging	0.44 kg / 30 pcs per carton / 14.2 kg / 0.9 CUFT

Safety Standards & EMC

Safety Standards	UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16, CCC GB4943.1, AS/NZS 62368.1, EAC TP TC 004, BSMI CNS15598-1, BIS IS13252 (except 48V)
Withstand Voltage	I/P-O/P: 4KVAC \| I/P-FG: 2KVAC \| O/P-FG: 0.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: > 100Mohm / 500VDC / 25C / 70% RH
EMC Emissions	EN55032 Class B, EN61000-3-2/-3-3 compliant, GB9254 Class B, GB17625.1, CNS15936
EMC Immunity	EN61000-4-2,3,4,5,6,8,11, EN55035; light industrial level, EAC TP TC 020

Key Features

Active PFC (PF>0.98)
EN61000-3-2 compliant - legal for EU residential use. No harmonic current restrictions unlike LRS/SE series

Universal AC Input
85~264VAC full range - no switch to set, works worldwide without configuration errors

Class B EMC (Residential)
EN55032 Class B + GB9254 Class B - suitable for residential, commercial, and light industrial

9 Voltage Options
3.3V to 48V including unique 7.5V and 13.5V - widest voltage coverage at 75W

Fanless Convection Cooling
Silent, zero-maintenance operation at 159x97x30mm - no fan to fail or replace

Full Global Certifications
UL + TUV + CCC + BSMI + EAC + BIS + AS/NZS - one model for worldwide deployment

4KVAC I/P-O/P Withstand
Higher isolation than LRS/SE (3~3.75KVAC) - extra safety margin for medical-adjacent use

Constant Current Limiting
Auto-recovery overload protection - no power cycle needed, unlike SE series latch-off

-25~70C Temperature
Wider cold-start capability than LRS-100N2 (-30C) at 75W - reliable in freezer environments

3-Year Warranty
MEAN WELL's premium warranty for the RSP product line - backs up the quality engineering

Frequently Asked Questions

What makes the RSP-75 different from the LRS-75 or LRS-100N2?

The RSP-75 is a premium product line with three critical advantages: (1) Active PFC (PF>0.98) making it EN61000-3-2 compliant for EU residential use - LRS N2 and SE series are NOT compliant and carry usage restrictions; (2) Class B EMC for residential/commercial deployment vs Class A (industrial only) on LRS/SE; (3) Universal AC input (85~264VAC) with no switch to set, eliminating configuration errors. Additionally, RSP-75 offers 9 voltage options (vs 4 for LRS-100N2), TUV/CCC certifications, and 4KVAC isolation. Choose RSP-75 for global regulatory compliance, EU residential applications, and noise-sensitive environments.

Can the RSP-75 be used in EU residential equipment?

Yes. This is a key advantage. The built-in active PFC makes the RSP-75 EN61000-3-2 compliant with Class B EMC emissions, meaning it CAN be legally used in EU residential and commercial equipment - unlike LRS N2 and SE series which carry EN61000-3-2 restrictions. This eliminates the need for exemption qualifications or additional filtering.

What are the 7.5V and 13.5V models used for?

7.5V is commonly used in legacy industrial controllers, some medical devices, and custom automation equipment. 13.5V is the standard float-charge voltage for 12V lead-acid batteries (13.5~13.8V), making the RSP-75-13.5 an ideal built-in charger for battery-backed systems. Both are rare voltages that make the RSP-75 the go-to choice when you need them.

Is the 48V model BIS-certified for India?

No. The 48V model is excluded from BIS IS13252 certification. All other RSP-75 models (3.3V through 27V) are BIS-certified for the Indian market.

How does the constant current overload protection work?

Unlike SE series which latch off and require a power cycle, the RSP-75 uses constant current limiting: when the load exceeds 105~135% of rated power, the output current is clamped to a safe level while voltage drops. Once the overload condition is removed, the output automatically recovers to normal regulation - no manual intervention needed. This is ideal for motor startup and capacitive loads where momentary overload is expected.
