MEAN WELL Enclosed Power Supply SE-1500 Series Single Output Switching Power Supply

Product Item : SE-1500 series
Category：Enclosed Type
Wattage: 1500W
Input Voltage: 180~264VAC or 254 ~ 370VDC
Output Current: 0 ~ 300A
Output Voltage: 5 ~ 48V
Product description：The Mean Well SE-1000 is a 1000W single-output AC/DC power supply with active PFC, designed for reliable industrial and general-purpose use.
INQUIRY EMAIL

SE-1500 Series - 1500W Single-Output Enclosed Switching Power Supply

✓ In Stock2-Year Warranty1500W PowerUL/BSMI ListedDC OK + Remote

				Key Performance at a Glance

						1500W

						Rated Power

						300A

						Max Current (5V)

						89%

						Max Efficiency

						7.8W/in3

						Power Density

						-20~70C

						Operating Temp

						6

						Output Models

Product Overview

The SE-1500 series is MEAN WELL's most powerful enclosed switching power supply - delivering 1500W across 6 output voltage options from 5V to 48V. With an industry-leading 7.8W/in3 power density, 300A capability at 5V, and full system integration features (DC OK, remote ON/OFF, remote sense), it is the ultimate enclosed solution for the largest-scale industrial and system-integration applications.

The SE-1500 is 230VAC input only (180~264VAC, also accepts 254~370VDC) - NOT compatible with 115VAC mains. Built around a 65KHz switching design with roller bearing DC fan cooling and active inrush current limiting. The wider temperature range of -20~+70C exceeds all other SE models, making it suitable for extreme thermal environments.

Measuring 278x177.8x63.5mm, the SE-1500 is wider than the SE-1000 at 177.8mm depth to accommodate the higher power output. Unique features include model-specific over-temperature thresholds (95C for 5V down to 75C for 27V/48V), DC OK TTL signal, and remote ON/OFF via CN3. 26ms hold-up time at 230VAC provides superior ride-through during brownouts.

UL/CUL, BSMI, EAC certified. Full EMC immunity suite (Surge 4KV, EFT L3, ESD L3, Magnetic Field L4). Not EN61000-3-2 compliant. 2-year warranty. Note: 115VAC operation is NOT supported.

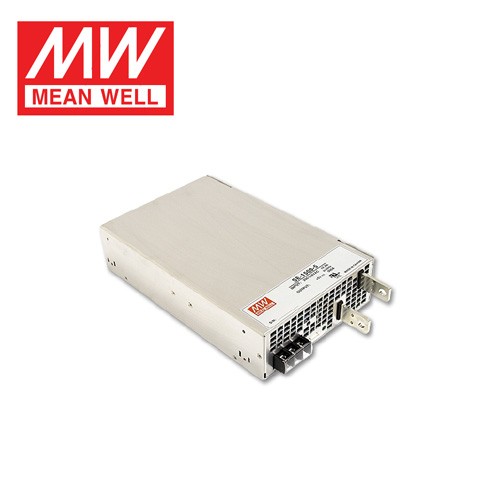

Product Images

Technical Specifications

Parameter	SE-1500-5	SE-1500-12	SE-1500-15	SE-1500-24	SE-1500-27	SE-1500-48
DC Output Voltage	5V	12V	15V	24V	27V	48V
Rated Current	300A	125A	100A	62.5A	55.6A	31.3A
Rated Power	1500W	1500W	1500W	1500W	1501.2W	1502.4W
Ripple & Noise (max)	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p
Voltage Adj Range	3.3~5.5V	10.8~13.5V	13.5~16.5V	21.6~26.4V	25~30V	43.2~56V
Voltage Accuracy	+/-2.0%	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%
Line Regulation	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Load Regulation	+/-2.0%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Efficiency (Typ.)	81%	85%	85%	87%	88%	89%

Input Specifications (230VAC Only)

Input Voltage Range	180~264VAC (230VAC nominal only; NO 115VAC support); 254~370VDC
Inrush Current Limiting	Active inrush current limiting circuit built-in
Frequency Range	47~63Hz
AC Current (Typ.)	17.5A / 230VAC
Inrush Current (Typ.)	60A / 230VAC (cold start)
Leakage Current	< 3.5mA / 240VAC
Hold-up Time (Typ.)	26ms / 230VAC (full load)

Protection & System Features

Overload Protection	105%~125% rated power -> output shutdown; power cycle to recover
Overvoltage Protection	5V: 5.75~6.75V / 12V: 14.5~16.2V / 15V: 18~21V / 24V: 27.6~32.4V / 27V: 31~35V / 48V: 57.6~67.2V (shutdown; power cycle)
Over-temperature Protection	95C(5V) / 85C(12V,15V) / 80C(24V) / 75C(27V,48V) on output diode heatsink (TSW1); auto-recovery
DC OK Signal	TTL output (CN3): PSU ON = 3.3~5.6V, PSU OFF = 0~1V
Remote ON/OFF	RC+/RC- (CN3): 0~0.8V = PSU ON, 4~10V = PSU OFF
Remote Sense	CN3 connector (+S / -S pins)

Environmental & Physical

Operating Temperature	-20~+70C (refer to derating curve)
Operating Humidity	20~90% RH, non-condensing
Storage Temp / Humidity	-40~+85C, 10~95% RH
Temperature Coefficient	+/-0.05%/C (0 ~ 50C)
Vibration Resistance	10~500Hz, 2G, 10 min/cycle, each axis 60 min
MTBF	>= 999.9K hrs (Telcordia SR-332); >= 134.5K hrs (MIL-HDBK-217F, 25C)
Dimensions	278 x 177.8 x 63.5 mm (LxWxH)
Net Weight / Packaging	3.3 kg / 4 pcs per carton / 14.2 kg / 1.14 CUFT

Safety & EMC

Safety Standards	UL62368-1 (UL/CUL), BSMI CNS15598-1, EAC TP TC 004 certified; Design ref: BS EN/EN62368-1
Withstand Voltage	I/P-O/P: 3KVAC \| I/P-FG: 1.5KVAC \| O/P-FG: 0.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: > 100Mohm / 500VDC / 70% RH
EMC Emissions	BS EN/EN55032 Class A, CNS15936; Not EN61000-3-2/-3-3
EMC Immunity	ESD L3 (8KV/4KV), Radiated L3, EFT L3, Surge 2KV/4KV, Conducted L3, Magnetic Field L4, Voltage Dips

Key Features

1500W / 7.8W/in3
Most powerful enclosed SE supply - highest power density in the family at 7.8W/in3

300A at 5V
Massive 300A current for the largest digital logic and industrial test systems

DC OK + Remote ON/OFF
TTL system health monitoring and external power sequencing via CN3 connector

230VAC Input Only
180~264VAC nominal; NOT compatible with 115VAC - plan mains voltage accordingly

-20~70C Temperature
Widest temperature range in SE family - 70C upper limit exceeds all other SE models

Model-Specific OTP
95C(5V) to 75C(48V) - tailored thermal protection per output voltage

26ms Hold-up Time
Longest hold-up in SE series - superior brownout ride-through at 230VAC

UL/CUL + BSMI
North America + Taiwan certified for global deployment

Full EMC Immunity
Surge 4KV, EFT L3, Mag Field L4 - heavy industrial environments

2-Year Warranty
MEAN WELL quality assurance with global warranty coverage

Frequently Asked Questions

Can the SE-1500 run on 115VAC?

No. The SE-1500 is 180~264VAC input only. Unlike smaller SE models with a 115/230V switch, it lacks the voltage doubler circuit needed for 115V operation. Attempting 115V will result in insufficient output. Use SE-1000 or SE-600 series if 115VAC operation is required.

How does the SE-1500 differ from the SE-1000?

SE-1500 delivers 1500W vs 1000W - a 50% increase. Key differences: (1) wider body (177.8mm vs 127mm depth); (2) 230VAC only (no 115V); (3) 300A at 5V vs 150A; (4) 7.8W/in3 vs 7.3W/in3; (5) 70C max temp vs 60C; (6) 26ms hold-up vs 20ms; (7) model-specific OTP thresholds; (8) higher leakage (3.5mA vs 2.5mA); (9) no 9V model. The SE-1500 is for the largest systems where SE-1000 is insufficient.

Why does the over-temperature threshold vary by model?

The TSW1 sensor monitors the output diode heatsink. Different output voltages generate different thermal profiles at the secondary rectification stage. 5V (highest current, 300A) has the highest threshold at 95C because the output diodes are rated for higher temperatures. 27V/48V models have the lowest (75C) due to higher voltage stress on the output rectifiers. This is a unique safety feature of the SE-1500.

Can the SE-1500 be used in EU countries?

Not EN61000-3-2/-3-3 compliant. EMC is Class A (industrial), not Class B. Should not be used in consumer/residential EU equipment. For industrial/professional equipment >1000W, the exemption may apply - consult your compliance engineer. The 230VAC-only input is actually compatible with EU mains voltage (220-240VAC), but the harmonic current issue remains the limiting factor.

What does the 26ms hold-up time mean in practice?

At full load, the SE-1500 can maintain regulated output for 26ms after AC input loss at 230VAC. This is the longest in the SE family and provides excellent immunity to short power glitches, brownouts, and generator switchover events. In critical applications, this can eliminate the need for external UPS or hold-up capacitors.
